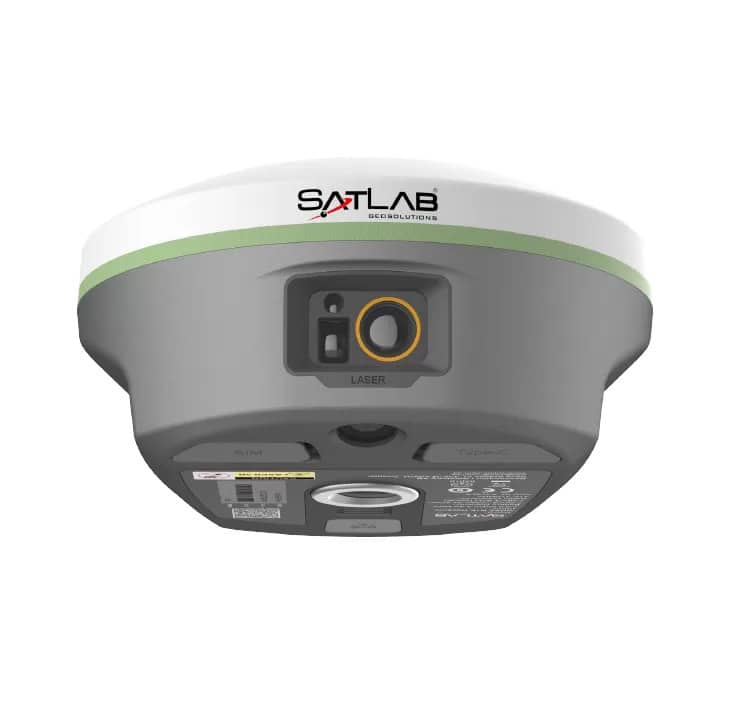

The SatLab SL8 Laser RTK Receiver integrates dual cameras, GNSS, IMU, and visible laser technology to simplify and accelerate surveying tasks. It provides non-contact measurement, image-assisted targeting, CAD live-view stakeout, and a built-in LoRa radio for reliable operation in complex or GNSS-limited environments. The Laser RTK achieves 2 cm accuracy within 10 meters and enables efficient data collection across bridges, tunnels, riverbanks, and other sites where traditional GNSS methods are restricted.
The SL8 features image-assisted targeting through SatSurv software, displaying laser points directly on real-time images for quick and precise aiming. Its automotive-grade IMU requires no manual calibration or initialization and enhances measurement accuracy by up to 40% in GNSS-challenged areas. A built-in multi-protocol LoRa transceiver provides stable transmission beyond 15 km and compatibility with multiple RTK brands. The integrated CAD and visual stakeout functions combine live imagery with CAD data, allowing users to visualize target points on-site and increase layout efficiency by up to 50%.
Specifications:
| Dimensions (W X H): | 130.97 mm × 68.7 mm |
| Weight: | ≤ 0.73 kg ( 1.61 lb ) |
| GNSS Signal Tracking: |
Channel: 1408 GPS: L1C/A, L1C, L2P(Y), L2C, L5 BDS: B1I, B2I, B3I, B1C, B2a, B2b GLONASS: L1, L2, L3 Galileo: E1, E5a, E5b, E6 QZSS: L1, L2, L5, L6 NavIC: L5 SBAS: L1, L2, L5 PPP: B2b-PPP, Galileo E6-HAS |
|
Positioning Performance (Code Differential GNSS Positioning): |
H: ±0.25 m+1 ppm RMS V: ±0.5 m+1 ppm RMS SBAS: 0.5 m (H), 0.85 m (V) |
| Positioning Performance (RTK): |
H: 8 mm+1 ppm RMS V: 15 mm+1 ppm RMS |
