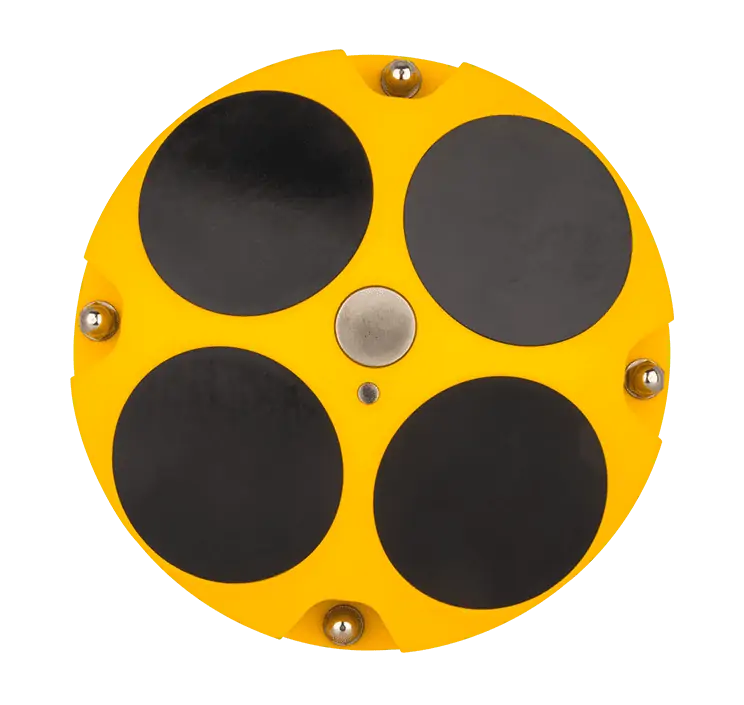

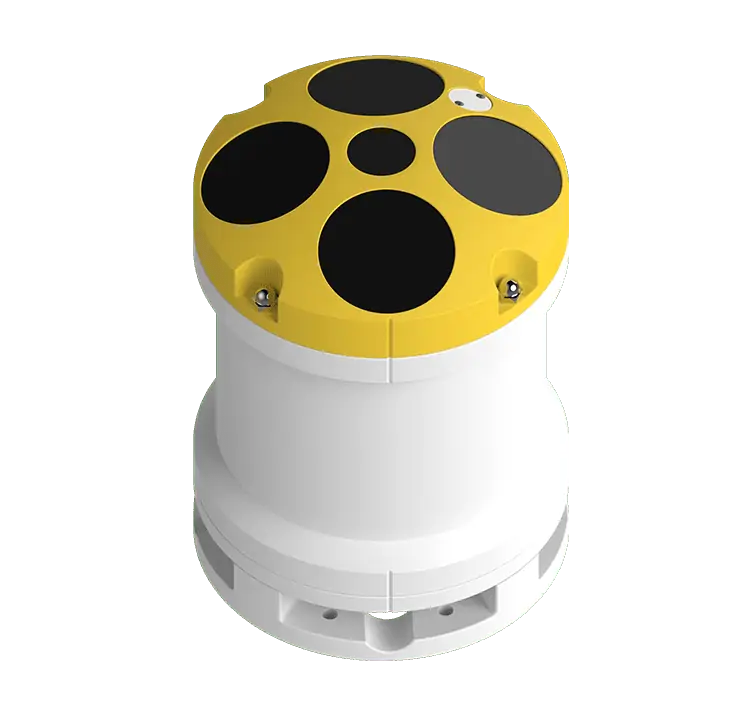

HydroFlow ACDP
The HydroFlow is an Acoustic Doppler Current Profiler that can be mounted on a variety of unmanned marine platforms, including USVs, UUVs and buoys, to provide an accurate and easy to use discharge and flow monitoring system.
Using sophisticated broadband signal processing technology, the HydroFlow ADCP provides enhanced anti-noise performance and measurement accuracy of up to 0.25% ± 0.25cm/s.
| HydroFlow 600 | HydroFlow 1200 | |
| Frequency | 600 kHz | 1200 kHz |
| Power Consumption |
3.5W (average) 0.5W (sleep) 30W (peak) |
3.5W (average) 0.5W (sleep) 30W (peak) |
| Water Velocity Profiling Range |
± 5m/s typical ± 20m/s max |
± 5m/s typical ± 20m/s max |
| Water Velocity Profiling Accuracy | 0.25% ± 0.2cm/s | 0.25% ± 0.2cm/s |
| Bottom Tracking Velocity Range |
± 5m/s typical ± 20m/s max |
± 5m/s typical ± 20m/s max |
| Bottom Tracking Depth Range |
0.8m min 90m max |
0.15m min 35m max |
| Bottom Tracking Accuracy | + 0.25% of water velocity relative to ADCP | + 0.25% of water velocity relative to ADCP |
