Radionor Communications is a leading developer of next-generation tactical broadband data links for unmanned systems. Our state-of-the-art wireless communications systems, based on phased-array antenna technology, provide unmatched range and stability for high-mobility platforms such as unmanned aerial vehicles (UAVs), unmanned ground vehicles (UGVs) and unmanned surface vessels (USVs).

Wireless UAV Data Links & Radio Transceivers

Jump to Products >

Cordis Array II Technology

Our Cordis Array II technology enables point-to-multipoint tactical data links, forming wireless IP connectivity between multiple units with unmatched bandwidth and range, in excess of 250 km for larger radios and 20-160 km for smaller radios depending on selected bandwidth and combination of radios.

The Cordis Array II’s electronically steerable beam has no moving parts and constantly optimises the direction of transmission and reception, steering instantly in the direction of any desired unmanned aircraft or moving object. Featuring narrow antenna beams and embedded AES-256 hardware encryption, the unit exhibits a communication range and jamming robustness that is unmatched by conventional tactical data links or MIMO-technology.

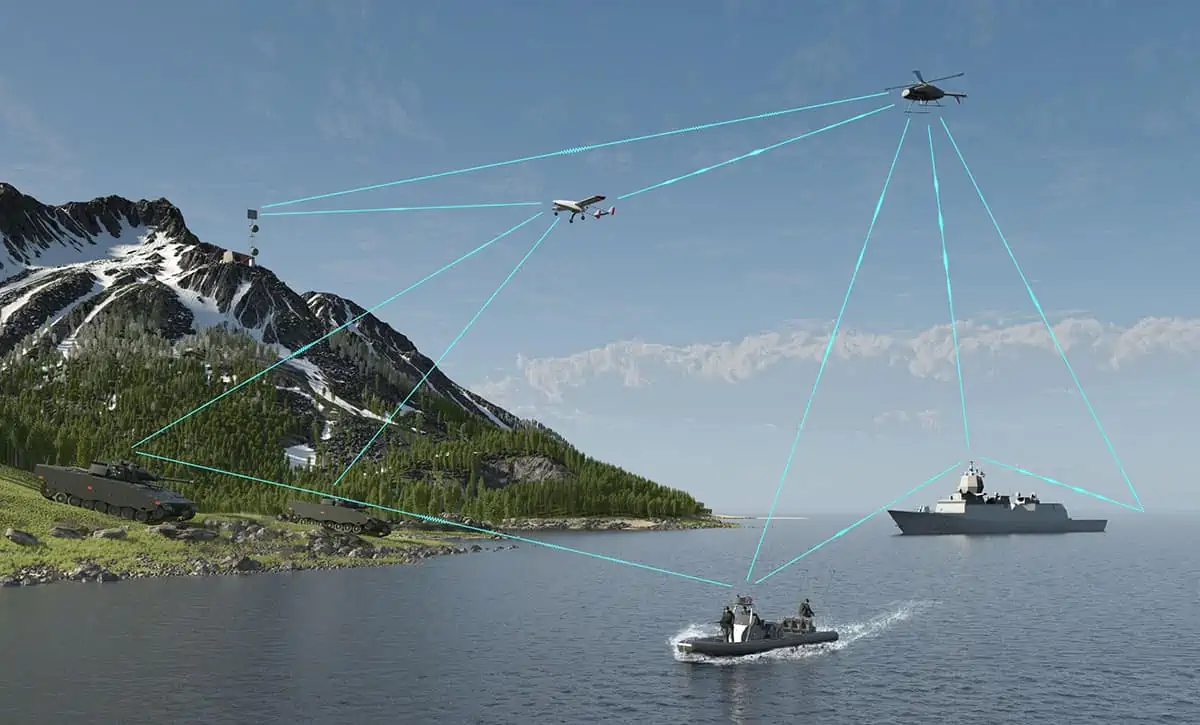

The Cordis Array II’s rapid point-to-multipoint data link communications capabilities provide connectivity to all units in the network even if all units are moving. This enables a single ground antenna to operate several UAVs or unmanned vehicles simultaneously.

Cordis Array II Technology

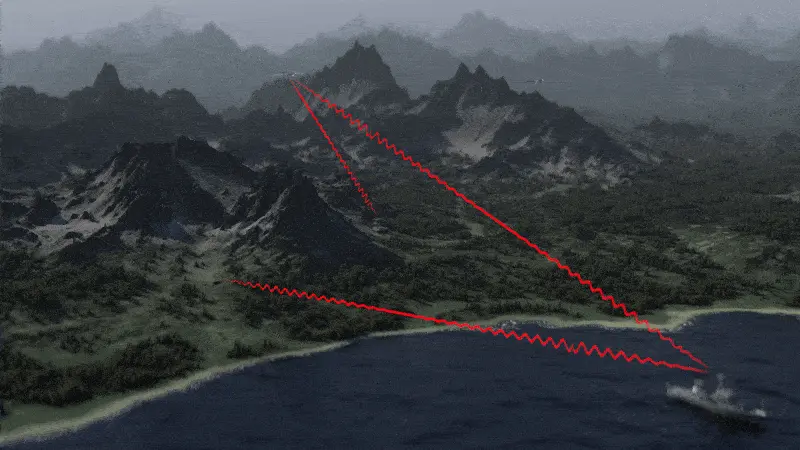

The Cordis Array II product family enables robust high-precision transmission of high-speed data, voice, video, telemetry and location data. All systems provide a maximum data capacity of 15 Mbps, with easy and efficient integration and interoperability with other IP-based systems. The picture shows the point-to-multipoint capability in the Cordis Array II system where a single ground station can operate several UAVs.

Wireless Data Links and Radio Transceivers

CRE2-179-UAV Wireless Data Link

Horizontally-mounted integrated UAV data link

Wireless UAV Data Link CRE2-170-UAVThe CRE2-179-UAV is a wireless transceiver with integrated antenna based on phased-array technology designed for both fixed-wing and rotary-wing aircraft. The product has been tested according to DO-160G environmental compliance.

Featuring narrow antenna beams and embedded AES-256 hardware encryption, the unit exhibits a communication range and jamming robustness that is unmatched by conventional tactical data links or MIMO-technology.

Combining connectivity with mission-critical performance, the CRE2-179-UAV is fully compliant with MIL-STD-461F electromagnetic compatibility and immunity, providing vital functionality such as bandwidth control, priority for critical data transfer, error-free UDP streaming and latency control. The unit’s smart antenna technology also provides optional high-precision, high-speed UAV tracking, and can be utilised for satellite-independent navigation.

View datasheet

Learn more: CRE2-179-UAV Wireless UAV Data Link

CRE2-144-LW Wireless Radio Transceiver

Compact transceiver for small and medium UAVs

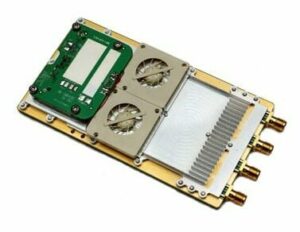

Wireless Radio Transceiver CRE2-144-LWThe CRE2-144-LW is a compact, lightweight C-band wireless radio transceiver that is designed for integration into small and medium UAVs.

Featuring RF connectors for external antennas as well as Ethernet and serial interfaces, the ultra-low weight transceiver with advanced electronic beam-forming provides end-to-end IP connectivity for efficient integration, interoperability and seamless data exchange. The unit provides AES-256 hardware encryption.

View datasheet

Learn more: CRE2-144-LW Wireless Radio Transceiver

CRE2-189 Wireless Radio Transceiver

Vertically-mounted transceiver for UAV ground stations, vessels and command posts

Tactical Data Link CRE2-189The CRE2-189 is a wireless transceiver with integrated antenna based on phased-array technology designed for UAV ground stations and vessel-mounted control stations. With a vertically mounted panel form factor and integrated antennas, the system is easy to install. The Ethernet and power are integrated into a single rugged MIL-DTL-3999 series III connector.

The robust CRE2-189 is fully compliant with MIL-STD-461F electromagnetic compatibility and immunity and is ideal for providing reliable navigation capabilities in GPS-denied areas as well as AES-256 encrypted long-range IP-based communications.

View datasheet

Learn more: CRE2-189 Wireless Radio Transceiver

CRE2-144-OEM Rugged Radio Transceiver

Compact radio transceiver module for systems integrators and OEMs

UAV Communications Data Link CRE2-144-OEMThe CRE2-144-OEM is designed for systems integrators and OEMs of UAVs and other unmanned systems. The unit features advanced electronic beam-forming and end-to-end IP connectivity for efficient integration. The highly rugged radio transceiver module can withstand harsh environments, including extensive operational shock and vibration.

The unit incorporates RF connectors for external antennas as well as Ethernet and serial interfaces, providing AES-256 hardware encrypted communications for IP-centric and ad hoc network operations.

View datasheet

Learn more: CRE2-144-OEM Rugged Radio Transceiver

CRE2-179 Wireless Data-Link

Horizontally-mounted data link for manned and unmanned systems

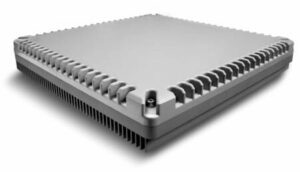

Data Link Communications CRE2-179The CRE2-179 is a wireless transceiver with integrated antenna based on phased-array technology. The unit is a horizontally-mounted panel form factor, enabling maximum transmit power emission to the sides.

The product is designed for installations on small vessels, vehicle installations, unmanned systems on ground and marine stations. The all-in-one easily integrated unit features Ethernet connectivity and power in a single rugged MIL-DTL-3999 series III connector.

The product is fully compliant with MIL-STD-461F electromagnetic compatibility and immunity and incorporated with embedded AES-256 encryption in hardware. The CRE2-179 provides high-bandwidth, long-range IP-based communications in the harshest of environments.

View datasheet

Learn more: CRE2-179 Wireless Data-Link

CRE2-179-AM Rugged Wireless Transceiver

DO-160G certified transceiver for manned aircraft modules

Wireless Datalink CRE2-179-AMThe CRE2-179-AM is a wireless transceiver with integrated antenna based on phased-array technology designed for aerospace applications and tested according to DO-160G environmental compliance. The product is an all-in-one horizontally mounted panel with integrated antennas, providing high bandwidth, long range IP based communication.

The panel interface consists of power and Ethernet cables with rugged, waterproof connectors for the required robustness in harsh environments.

View datasheet

Learn more: CRE2-179-AM Rugged Wireless Transceiver

Compare product specifications:

SizeWeightSupply VoltageData CapacityData Interface
CRE2-179-UAV28x29x5 cm2 kg19 – 55 VDC15 MbpsEthernet 10/100baseT
CRE2-144-LW12x6x1 cm85 g9 – 36 VDC15 MbpsEthernet 10/100baseT Serial
CRE2-18937x37x14 cm12.5 kg19 – 55 VDC15 MbpsEthernet 10/100baseT
CRE2-144-OEM12x6x3 cm290 g9 – 36 VDC15 MbpsEthernet 10/100baseT Serial
CRE2-17935x35x7 cm9.5 kg19 – 55 VDC15 MbpsEthernet 10/100baseT
CRE2-179-AM37x38x5.5 cm5 kg19 – 55 VDC15 MbpsEthernet 10/100baseT

Read how our CRE2 data link provided continuous connection for a 200 km UAV flight. Read article >
