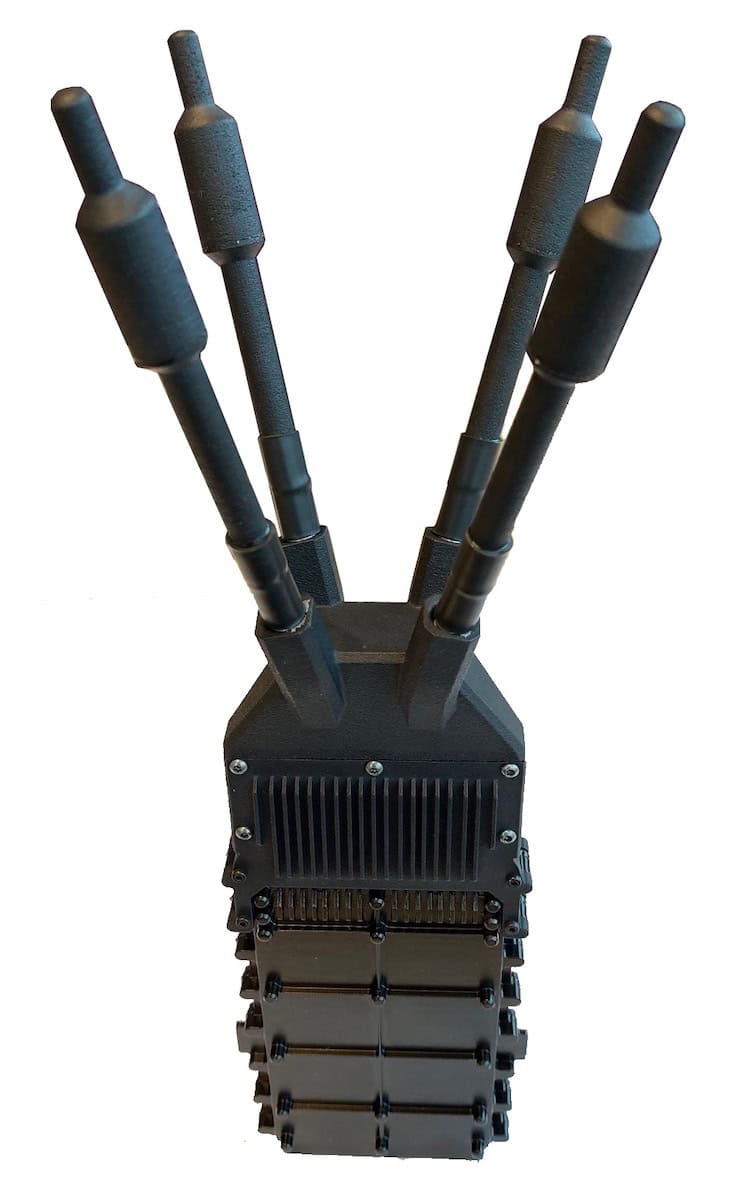

The CRE2-SUAV-NAV is a combat-proven wireless communications system combined with a high-precision geolocation capability, purpose-built for unmanned platforms operating in contested environments. Utilizing a C-band phased array architecture, the unit enables resilient data, voice, and video transfer across IP-based and ad hoc network configurations. It supports both point-to-point and multi-node connectivity while maintaining stable performance in dynamic operational scenarios, delivering up to 15 Mbps user data throughput.
In addition to communications, the system provides a satellite-independent navigation capability by deriving angular and range data from other CRE2 nodes within range. This data is fused with onboard sensor inputs, including inertial measurements, to calculate accurate positioning and timing without reliance on GNSS. The system detects interference or spoofing attempts and transitions seamlessly to its internal navigation framework, forming a self-healing mesh that maintains positioning integrity. With embedded AES-256 encryption, rapid location updates, and a compact, lightweight design, the CRE2-SUAV-NAV offers a robust solution for secure navigation and communication in unmanned system operations.
Specifications:
| Power Supply: | 19–55 VDC |
| Data Interface: | Ethernet 10/100BaseT |
| Available Data Capacity: | 15 Mbps |
| Wireless Encryption: | AES-256 |
| Dimensions: | 308 × 84 × 34 mm |
| Weight: | 270 g |
