Unmanned Systems News

Radionor Develops Tactical Broadband Data Links for UAVs & Unmanned Systems

Published: 10 Dec 2019 by

Radionor Communications, a leading developer of next-generation point-to-multipoint tactical broadband data links for unmanned systems, has partnered with Unmanned Systems Technology (“UST”) to demonstrate their expertise in this field. The ‘Silver’ profile highlights how their state-of-the-art wireless communications systems, based on phased-array antenna technology, can provide unmatched range and stability for high-mobility platforms such as unmanned aerial vehicles (UAVs), unmanned ground vehicles (UGVs) and unmanned surface vessels (USVs).

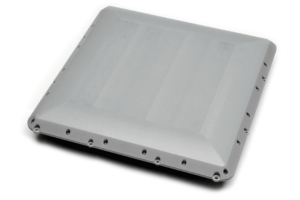

Wireless UAV Data Link CRE2-170-UAVThe CRE2-179-UAV is a wireless transceiver with integrated antenna, designed for both fixed-wing and rotary-wing aircraft and tested according to DO-160G environmental compliance. Featuring narrow antenna beams and embedded AES-256 hardware encryption, the unit exhibits a communication range and jamming robustness that is unmatched by conventional tactical data links or MIMO technology.

Combining connectivity with mission-critical performance, the CRE2-179-UAV is fully compliant with MIL-STD-461F electromagnetic compatibility and immunity, providing vital functionality such as bandwidth control, priority for critical data transfer, error-free UDP streaming and latency control. The unit’s smart antenna technology also provides optional high-precision, high-speed UAV tracking, and can be utilised for satellite-independent navigation.

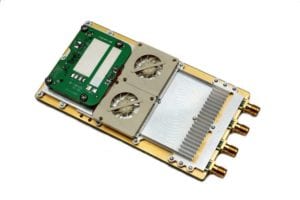

Wireless Radio Transceiver CRE2-144-LWThe CRE2-144-LW is a compact, lightweight C-band wireless radio transceiver that is designed for integration into small and medium UAVs.

Featuring RF connectors for external antennas as well as Ethernet and serial interfaces, the ultra-low weight transceiver with advanced electronic beam-forming provides end-to-end IP connectivity for efficient integration, interoperability and seamless data exchange. The unit provides AES-256 hardware encryption.

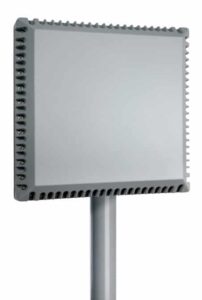

Tactical Data Link CRE2-189The CRE2-189 is a wireless transceiver with integrated antenna designed for UAV ground stations and vessel-mounted control stations. With a vertically mounted panel form factor and integrated antennas, the system is easy to install. The Ethernet and power are integrated into a single rugged MIL-DTL-3999 series III connector.

The robust CRE2-189 is fully compliant with MIL-STD-461F electromagnetic compatibility and immunity and is ideal for providing reliable navigation capabilities in GPS-denied areas as well as AES-256 encrypted long-range IP-based communications.

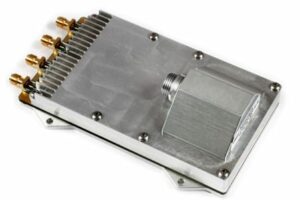

UAV Communications Data Link CRE2-144-OEMThe CRE2-144-OEM is designed for systems integrators and OEMs of UAVs and other unmanned systems. The unit features advanced electronic beam-forming and end-to-end IP connectivity for efficient integration. The highly rugged radio transceiver module can withstand harsh environments, including extensive operational shock and vibration.

The unit incorporates RF connectors for external antennas as well as Ethernet and serial interfaces, providing AES-256 hardware encrypted communications for IP-centric and ad hoc network operations.

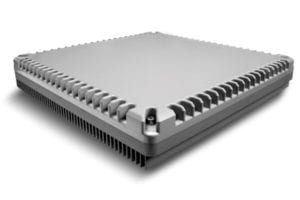

Data Link Communications CRE2-179The CRE2-179 is a wireless transceiver with integrated antenna in a horizontally-mounted panel form factor, enabling maximum transmit power emission to the sides. It is designed for installations on small vessels, vehicle installations, unmanned systems on ground and marine stations. The all-in-one easily integrated unit features Ethernet connectivity and power in a single rugged MIL-DTL-3999 series III connector.

The product is fully compliant with MIL-STD-461F electromagnetic compatibility and immunity and incorporated with embedded AES-256 encryption in hardware. The CRE2-179 provides high-bandwidth, long-range IP-based communications in the harshest of environments.

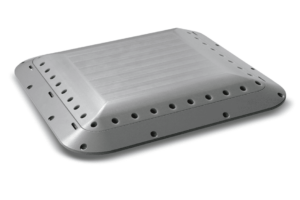

Wireless Datalink CRE2-179-AMThe CRE2-179-AM is a wireless transceiver with integrated antenna designed for aerospace applications and tested according to DO-160G environmental compliance. The product is an all-in-one horizontally mounted panel with integrated antennas, providing high bandwidth, long range IP based communication.

The panel interface consists of power and Ethernet cables with rugged, waterproof connectors for the required robustness in harsh environments.

To find out more about Radionor Communications and their tactical broadband data links for UAVs and unmanned systems, please visit their profile page:
https://www.unmannedsystemstechnology.com/company/radionor-communications/
