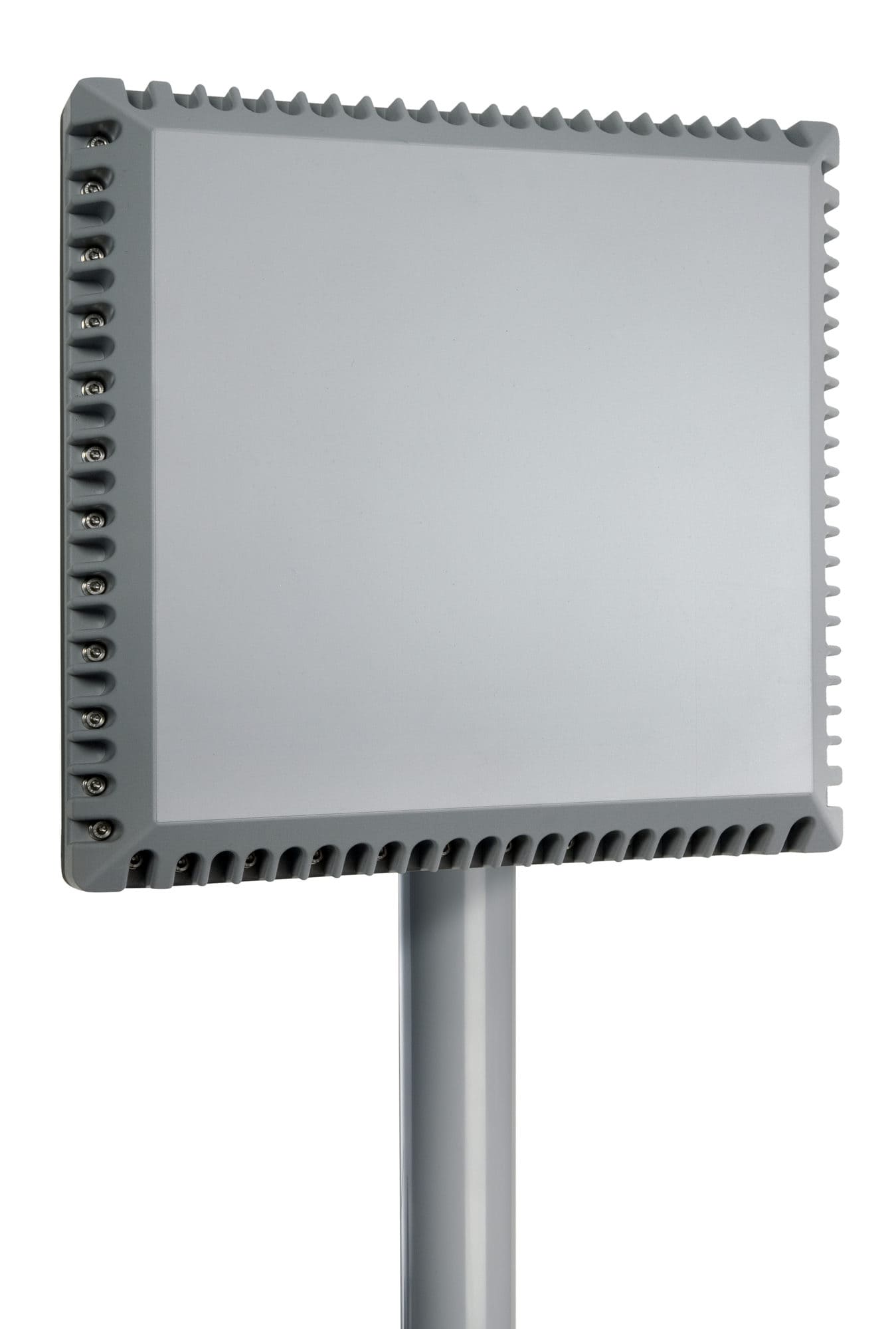

The CRE2-SECTOR is a vertically mounted phased array antenna panel that integrates a radio transceiver and antenna array in a single, durable enclosure. Designed for vessels and semi-mobile installations, it provides a robust IP-based wireless data link with ad-hoc network capability, supporting secure, long-range communication under demanding field conditions. The unit meets the highest class of electromagnetic compatibility and immunity standards in accordance with MIL-STD-461F, ensuring reliable operation in challenging electromagnetic environments.
Fully ITAR-free, the CRE2-SECTOR incorporates hardware-embedded AES-256 encryption to safeguard data transmission and uses a single power and Ethernet connection through a rugged MIL-DTL-38999 Series III connector for ease of installation and extreme environmental durability. Delivering a maximum user data throughput of 15 Mbps, it operates from a 19–55 VDC power supply and features a compact yet robust 37 × 37 × 14 cm form factor with a 12.5 kg weight, ideal for maritime and UAV command post platforms requiring high-performance, secure communications. Equivalent to CRE2-189-MARINE.
Specifications:
| Power Supply: | 19–55 VDC |
| Data Interface: | Ethernet 10/100baseT |
| Connector: | MIL-DTL-38999 Series III |
| Available Data Capacity: | 15 Mbps |
| Wireless Encryption: | AES-256 |
| Dimensions: | 37 × 37 × 14 cm |
| Weight: | 12.5 kg |
