Uranus Drones is a compact HD and Ultra-HD video encoding solution designed for unmanned platforms requiring real-time situational awareness and ultra-low-latency streaming. Supporting H.265 and H.264 encoding with HDMI input, the rugged unit enables simultaneous video streaming, recording, and playback for ISR, surveillance, targeting, and autonomous operations across UAVs, UGVs, and USVs.

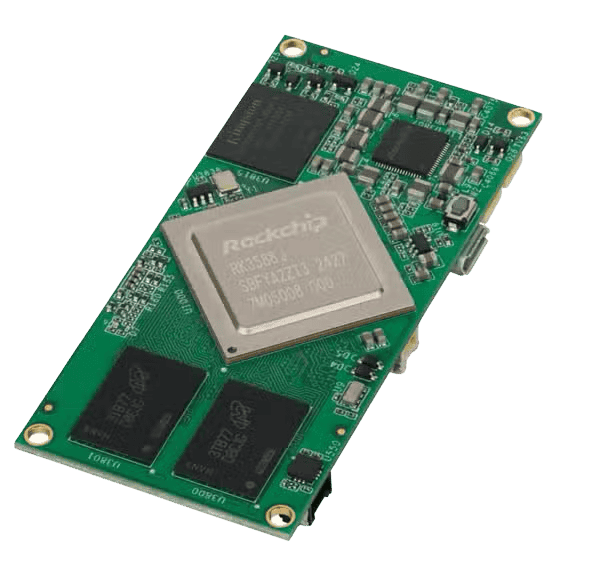

Powered by the Rockchip RK3588J platform, Uranus Drones combines advanced video processing with onboard AI acceleration for real-time detection and classification tasks. The lightweight SWaP-optimized system supports wired and wireless streaming across UDP, RTP, and RTSP protocols, while industrial-grade memory and storage ensure reliable performance in demanding tactical and commercial environments.
Specifications:
| SoC: | Rockchip RK3588J |
| CPU: | Octa-core 64-bit (4×Cortex-A76 + 4×Cortex-A55), 8 nm lithography process, clock speed up to 2.2 GHz |
| GPU: | ARM Mali-G610 MP4 quad-core GPU Supports OpenGL ES 3.2/OpenCL 2.2/Vulkan 1.1, 450 GFLOPS |
| NPU: | NPU computing power up to 6 TOPS Supports INT4/INT8/INT16 mixed operation Supports framework switching of TensorFlow/MXNet/PyTorch/Caffe |
| ISP: | Integrated 48 MP ISP with HDR & 3DNR |
| VPU: | Video encoding: Up to 8K, 16 × 1080p30 encoding streams can be achieved |
| RAM: | 8 GB 64-bit LPDDR4/LPDDR4 industrial-grade RAM |
| Storage: | 64 GB eMMC industrial-grade storage |
| Video In: | HDMI input |
| USB: | Single USB 3.0 |
| Wireless Connectivity: | Serial port |
