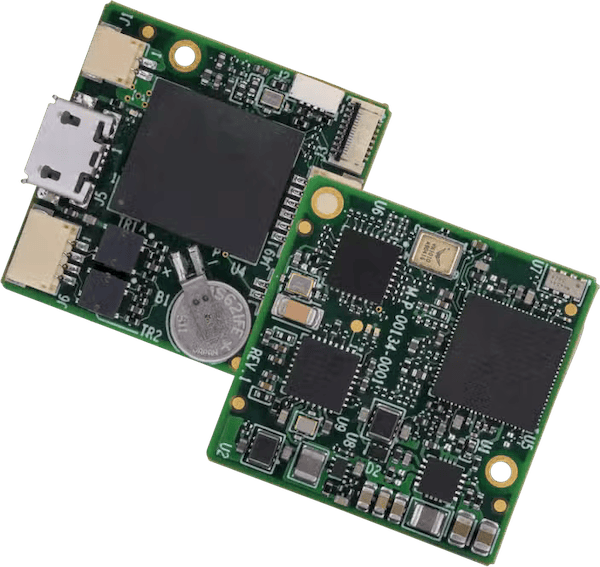

Mars V300
Mars V300 is an ultra-compact H.265 DVR and video streaming platform designed for wearable intelligence gathering, covert surveillance, and drone-based operations. Combining miniature dimensions, low power consumption, and multiple wireless connectivity options, the platform enables reliable real-time video and audio capture in demanding operational environments.
The lightweight unit supports MIPI and CVBS camera inputs, AAC audio capture, onboard MP4 recording, and low-latency IP streaming over Ethernet. With support for RF datalink, LTE, Wi-Fi, and LoRa modules, Mars V300 provides a highly adaptable tactical video solution for mobile and embedded deployments where SWaP constraints are critical.
Specifications:
| Dimensions: | 25 × 25 × 5 mm |
| Power: | 3.3–12 V input Power consumption <1 W |
| Video & Imaging: | H.265 video encoding and AAC audio capture Low-latency streaming down to 125 ms Supports: 2304 × 1296 @ 25 fps 2048 × 1536 @ 20 fps + 720 × 576 @ 20 fps 2304 × 1296 @ 20 fps + 720 × 576 @ 20 fps 1920 × 1080 @ 30 fps + 720 × 576 @ 30 fps |
| Storage: | Onboard 8 GB eMMC USB mass storage capability |
| Video Inputs: | MIPI input CVBS input |
| Communications: | RF datalink LTE Wi-Fi LoRa |
| Streaming: | RTP (Unicast/Multicast) RTSP streaming over Ethernet |
| Interfaces: | USB OTG Ethernet SPI FLIR Onboard microphone External microphone support |
| Additional Features: | MP4 recording to eMMC RTC with battery backup PC-based setup via USB or Ethernet |
