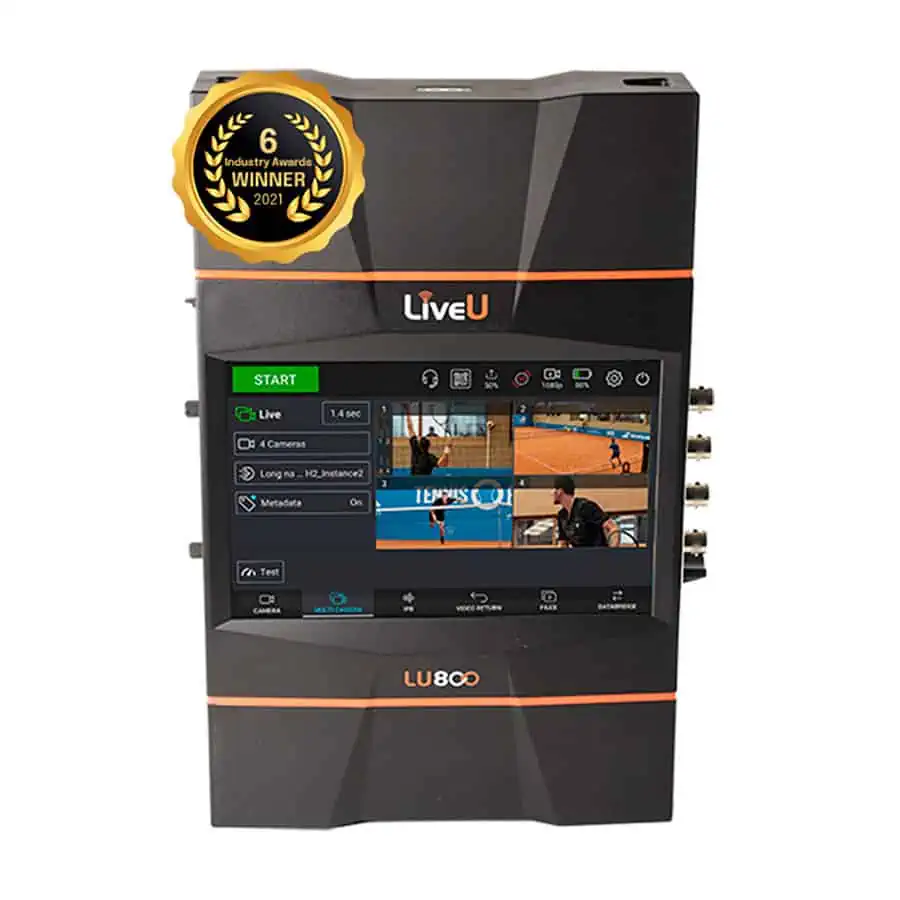

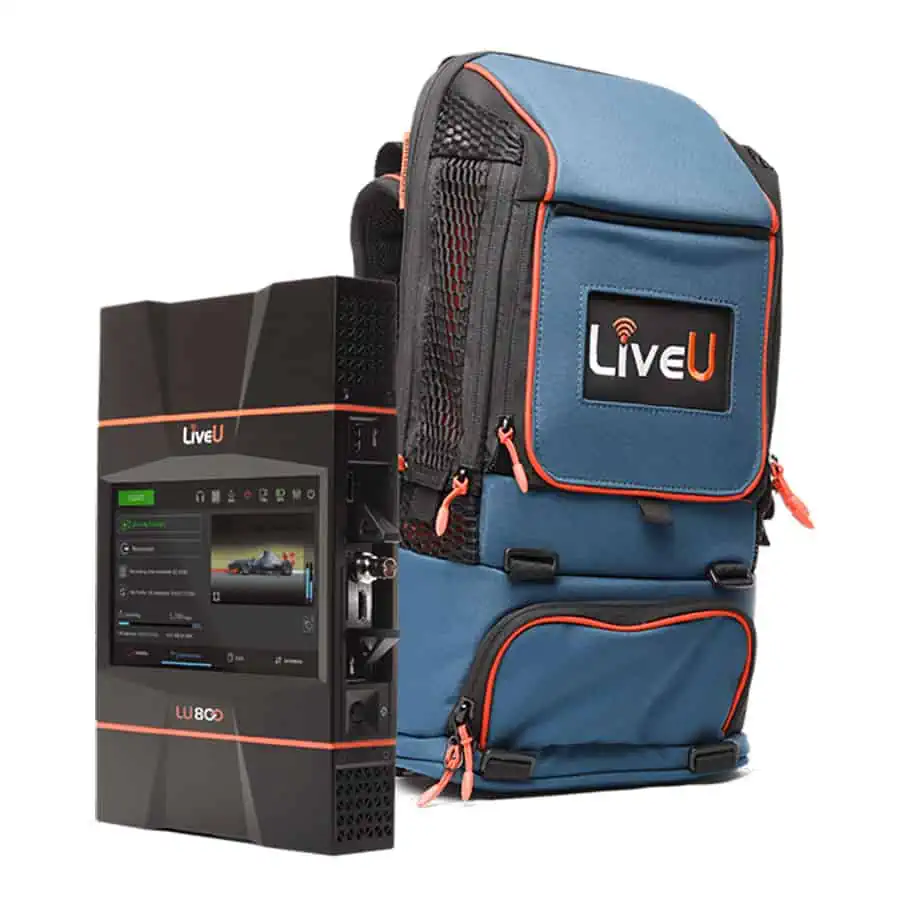

The LU800 is a mobile multi-camera field unit designed for mission-critical live drone video transmission. Supporting up to four fully synced video feeds and providing up to 4Kp60 10-bit HDR transmission, the portable system is ideal for complex remote drone video requirements.
Based on LiveU's LRT bonding and transmission technology, the system ensures the utmost in reliable connectivity. It features native 5G transmission for best-in-class video quality and latency, and can be equipped with up to eight 5G/4G internal dual SIM modems for bonding of up to 14 connections with a maximum throughput of 70 Mbps. Up to 2 external cellular modems can also be fitted.
The LU800 is available as a single-camera variant, or a multi-camera professional version with greater throughput.
Specifications:
| LU800-HDR | LU800-PRO | |
| Dimensions (W x H x D) | 175 x 280 x 65 mm (6.9 x 11 x 2.5”) | |
| Weight | 1.74 kg (61 oz) without battery 2.1 kg (76 oz) with battery |
|
| Power | 4 hrs internal battery Power input: 19V Dedicated external battery input 12-17V |
|
| Connectivity | Up to 14 network links: 8 x internal 5G/4G/3G dual-SIM modems 2 x external 5G/4G/3G modems 2 x internal WiFi and 2 Ethernet ports |
|
| Video Resolutions | 4Kp50/60/25/30/24 1080p50/60/25/30/24 1080i50/60 720p50/60/25/30 PAL, NTSC |
|
| Camera Inputs | 1 | 1/2/4 |
| Video Interfaces | 1x SDI (3G/HD/SD) HDMI 2.0 |
4x SDI (12G/3G/HD/SD) |
| Supported Bitrates | Up to 30 Mbps | Up to 70 Mbps |
