Drone Reference Platform

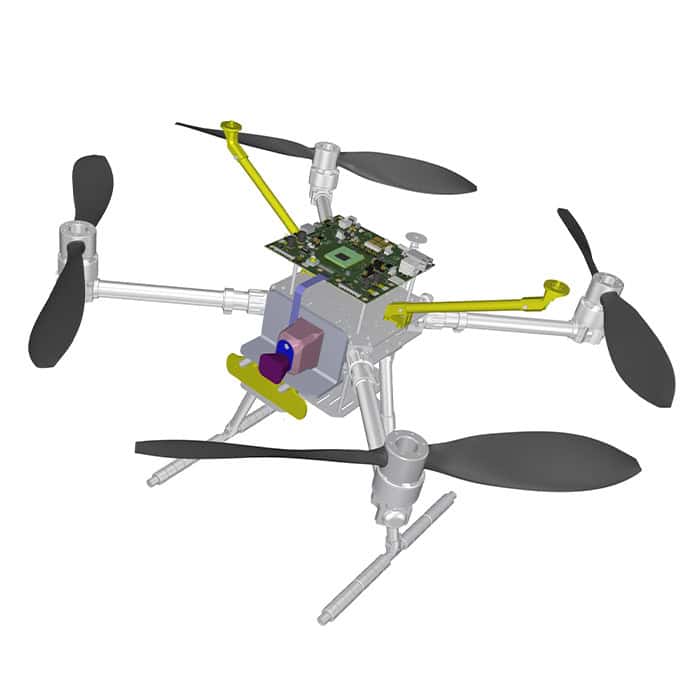

Lantronix' Drone Reference Platform is a powerful integrated solution that allows OEMs and developers to significantly accelerate development, validation, testing and deployment of new multirotor and fixed-wing designs. Leveraging the performance of the Qualcomm Dragonwing QCS8550 processor, the SWaP-optimized system is NDAA-compliant and enables the creation of flight-ready prototypes in weeks instead of months.
The platform features a FLIR Hadron 640R thermal camera with built-in AI-powered detection and tracking, and is ideal for a wide range of use cases including surveillance, search and rescue, inspection and monitoring, and more.

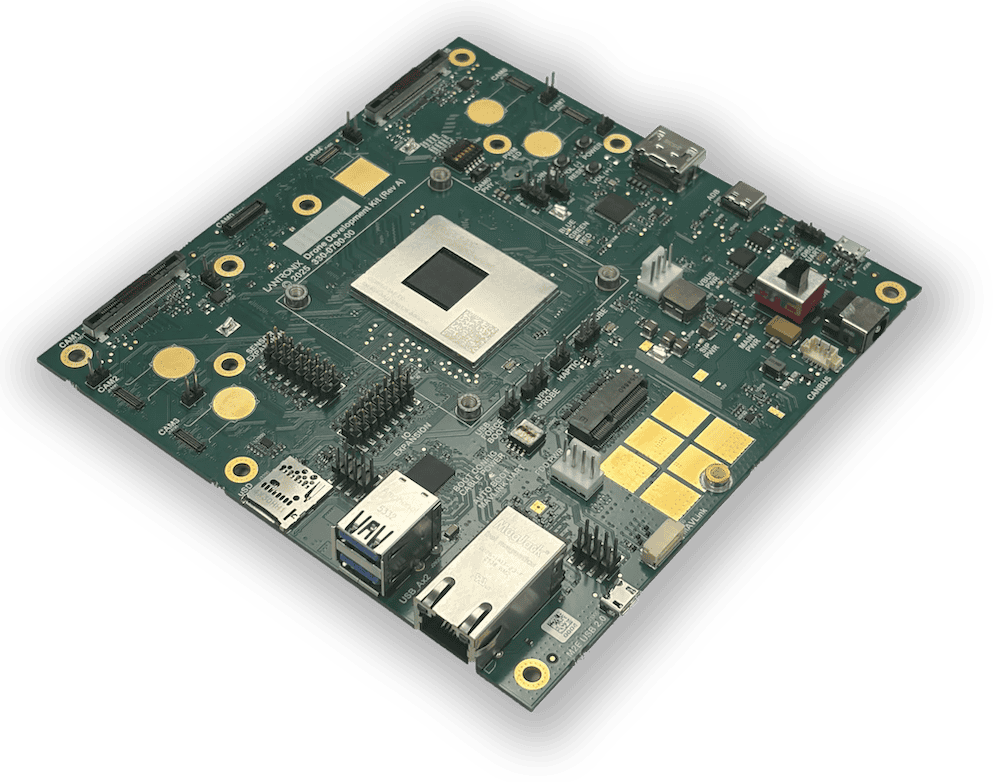

Specifications:
| Dimensions: | 152 x 145 mm |
| Input Voltage: | 3.7V nominal |
| SOM: | Qualcomm® 8550CS SoC built on 4nm technology:
Kryo™ Octa-core CPU: 1 Prime @ 3.2 GHz + 4 Gold @ 2.8 GHz + 3 Silver @ 2.0 GHz Adreno™ 740 GPU Spectra™ Image signal processor Adreno™ 8550 video processing unit Adreno™ 1295 display processing unit Dual eNPU V3, 4x HVX, HMX, 48 INT8, 12 FP16 TOPS Secure processing unit |
| Memory & Storage: | 12GB LPDDR5x @ 4200MHz, and 256GB UFS |
| Display Interfaces: | HDMI
USB-C DP 1.4 |
| Supported Cameras: | FLIR Hadron 640R, OV64B, OV9281, IMX258 |
| Video Performance: | Video decode up to 4K240/8K60. Native decode support for H.265 Main 10, H.265 Main, H.264 High, VP9 profile 2
Video encode up to 4K120/8K30. Native encode support for H.265 Main 10, H.265 Main, H.264 High Concurrent 4K60 Dec and 4K60 Enc |
| I/O Interfaces: | 1x Gb Ethernet, 2x USB3, 1x M.2 E-key, 1x USB-C, 1x uSD, CAN, headers for GPIO/I2C/SPI |
