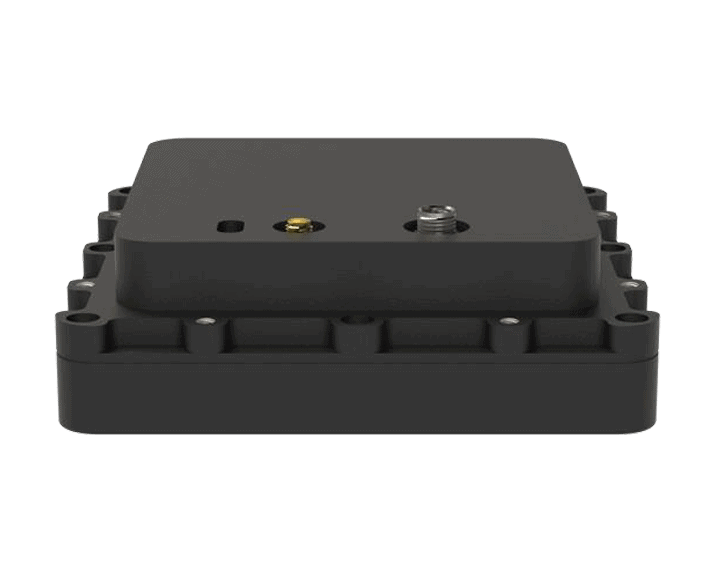

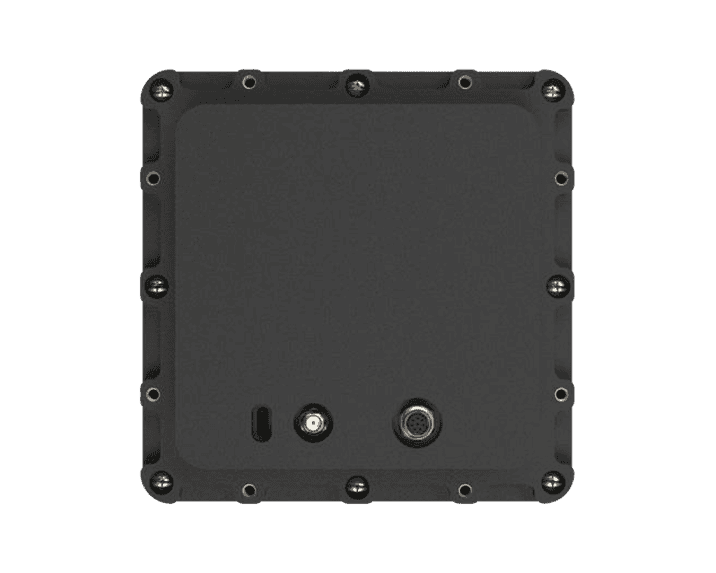

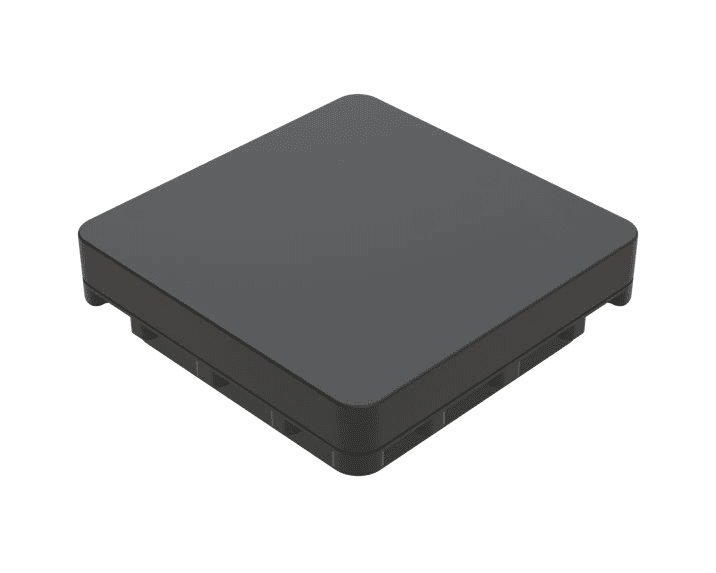

The M-AJ-QUATRO PRIME from Inertial Labs, a subsidiary of VIAVI Solutions Inc., is a next-generation Controlled Radiation Pattern Antenna (CRPA) system engineered to provide robust GNSS signal integrity in environments where jamming, spoofing, or signal denial is prevalent.
Purpose-built for assured Positioning, Navigation, and Timing (A-PNT), it operates across all L1, L2, and L5 GNSS bands, supporting multi-constellation compatibility including GPS, GLONASS, GALILEO, BEIDOU, and QZSS. Adaptive digital nulling, secure FPGA-based processing, and precision jammer direction-finding capabilities enable exceptional interference suppression exceeding 34dB in the export-free model, with enhanced options for export-controlled variants.
The M-AJ-QUATRO PRIME delivers optimized performance for unmanned platforms, with FPGA-secured anti-spoofing encryption and multipath mitigation ensuring accuracy in GPS-denied scenarios. Built for seamless integration with Inertial Labs navigation systems and commercial GNSS receivers, its radiation pattern control dynamically enhances signal fidelity.
With MIL-STD-810G and MIL-STD-461F compliance, this ruggedized antenna system maintains reliable operation from -40°C to +80°C and altitudes beyond 18,000 feet, making it ideal for mission-critical unmanned platforms requiring uncompromising navigation continuity.
Specifications:
| Bands | GNSS L1, L2, L5 Optional: GNSS L6, LEO IRIDIUM |
| Polarization | RHCP (AR< 3dB above 15 deg elevation) |
| Gain | 2dBic > 15 deg elevation |
| Interference sources | 3 |
| Suppression level | up to 70dB |
| Interference types | wideband, in-band |
| Power (W) | < 30 |
| Size (mm) | 140 x 140 x 43 |
| Weight (gram) | 365 |
