H-RTK F9P GNSS Module Series

H-RTK F9P differential high-precision GNSS modules are based around the u-blox ZED-F9P and offer multiband RTK capabilities, fast convergence times, reliable performance and fast update rates.

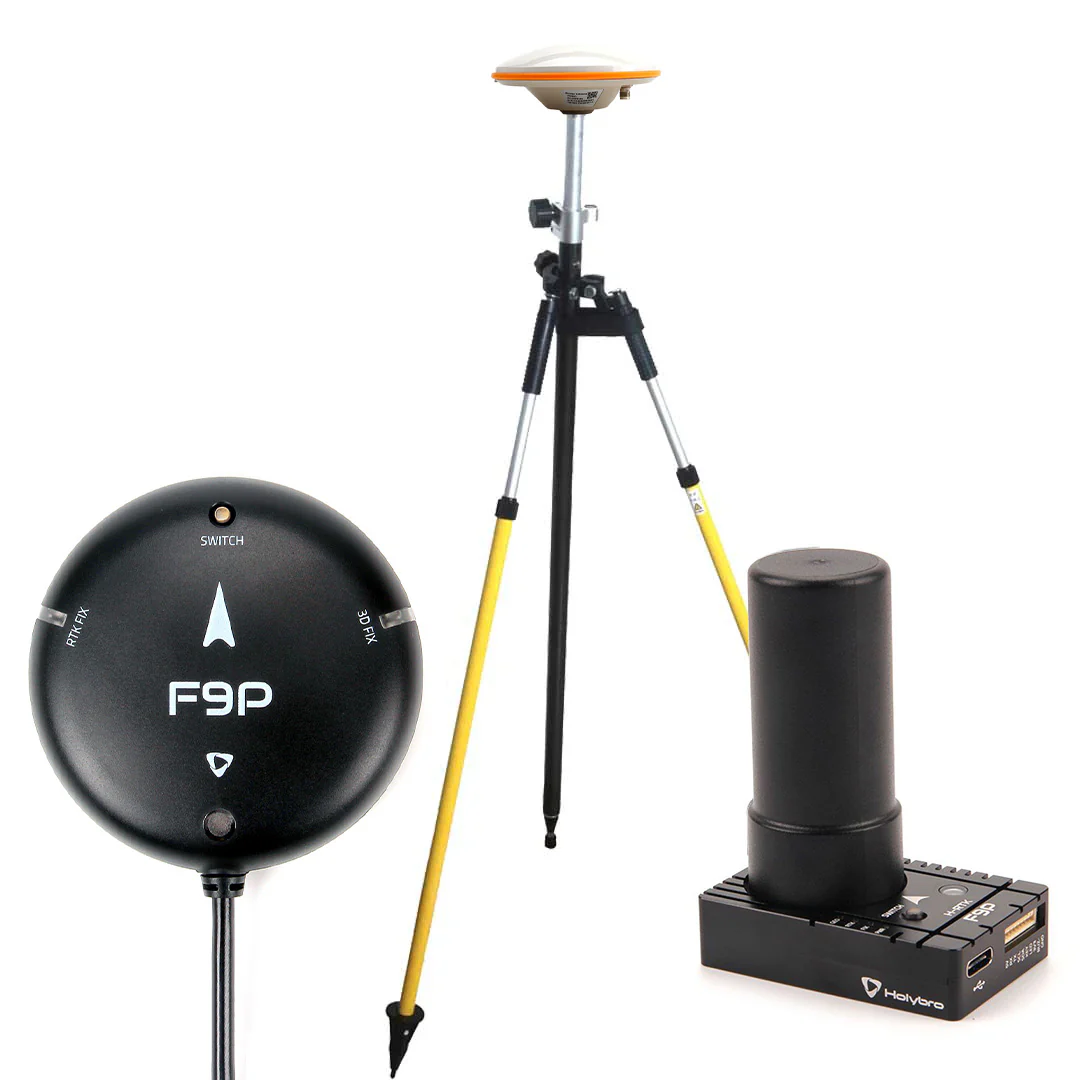

The series features three models - a low-cost variant for rover applications, a helical antenna version for rovers or base stations, and a faster and more accurate model with a high-gain antenna specifically designed for base stations.

Specifications:

  Rover Helical Base
Dimensions: 76 x 20mm Board: 34.8 x 52.7 x 12.9mm
Antenna: 27.5 x 59mm
Board: 34.8 x 52.7 x 12.9mm
Antenna: 152 x 62.2mm
Weight: 106g 49g 469g
Power: 4.75 – 5.25V, 250 mA
Frequencies: GPS L1C/A, L2C
GLONASS L1,L2
BeiDou B1,B2
Galileo E1-B/CH, E5b
