Gremsy is a leading manufacturer of camera gimbal stabilizers for drones and unmanned aerial vehicles (UAVs).

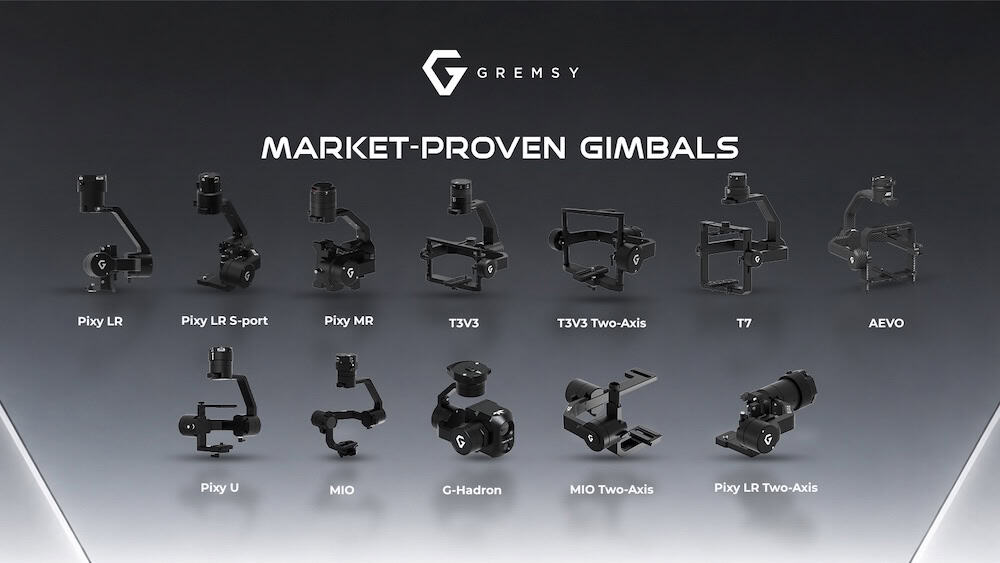

Gremsy products

Our gimbals, designed for professional aerial filmmakers, mappers and surveyors, support a variety of drones and payloads, and provide the smoothest footage and highest quality results for a range of commercial and industrial applications.

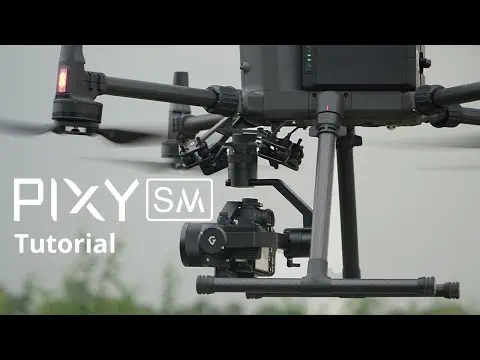

Pixy SM Drone Mapping Gimbal

Precision mapping gimbal for the M300 RTK UAV

Pixy SM Drone Mapping Gimbal

Pixy SM is a professional mapping gimbal for geospatial experts, designed to integrate with the DJI M300 RTK drone and the full-frame mirrorless Sony α7R IV camera.

The gimbal can be connected to the camera and integrated with the M300 RTK within seconds. The powerful, quick-to-deploy combination enables a wide range of high-grade precision aerial mapping missions.

M300 RTK drone mapping gimbal

Pixy SM enables capture of live streaming video as well as high-resolution photos, and includes automatic geotagging of images with GPS coordinates.

Precision mapping gimbal for M300 RTK drone

Taking photos & live streaming video from M300 RTK

Automatic geotagging by GPS

Automatic geotagging by GPS

Specifications:

Dimensions (H x W x D) 190 x 147 x 157mm
Weight 1.26 lbs (0.57 kg)
Angular Vibration Range ± 0.02°
Maximum Controlled Rotation Speed Pan axis: 100°/s
Tilt axis: 100°/s
Roll axis: 100°/s
Mechanical Endpoint Range Pan axis control: +330° to -330°
Tilt axis control: +135° to -45°
Roll axis control: +25° to -90°
Controlled Rotation Range Pan axis control: +160° to -160°
Tilt axis control: +135° to -45°
Roll axis control: ± 25°

Gremsy PE Drone Camera Gimbal

Auterion & MAVlink compliant drone gimbal

Auterion and MAVlink compliant drone camera gimbals

The Gremsy PE family has been specially designed for effortless integration with Auterion and MAVlink-compliant drones, featuring seamless compatibility with the Skynode drone ecosystem. Adhering to the Pixhawk Payload Bus standard, the quick-release gimbals also allow plug-and-play operation with most Pixhawk-based platforms.

The PE hub provides an intuitive I/O interface with a variety of ports including power, CAN, serial, Ethernet and USB-C, allowing easy connection with your flight controller system, companion computer and other peripherals.

Gremsy T3 PE drone camera gimbal

Pixy PE drone camera gimbal

Gremsy PE is now available in two models: T3 PE and Pixy PE. Both gimbals support similar cameras to their standard versions, offering a variety of payload options to suit a wide range of requirements.

Specifications:

T3 PET3 PE PIXY PEPixy PE
Dimensions (H x W x D) 270 x 237 x 184mm (gimbal)
120 x 152 x 100mm (camera cage)
183 x 112 x 145 mm (gimbal)
70 x 100 x 65.5 mm (camera cage)
Weight 2.23 lbs (1.01 kg) 1.04 lbs (0.47 kg)
Maximum Payload 3.7 lb (1.7kg) 1.03 lbs (0.465 kg)
Maximum Controlled Rotation Speed Pan axis: 180°/s
Tilt axis: 180°/s
Roll axis: 180°/s
Pan axis: 100°/s
Tilt axis: 100°/s
Roll axis: 100°/s
Mechanical Endpoint Range Pan axis control: ± 345°
Tilt axis control: ± 150°
Roll axis control: +80° to -264°
Pan axis control: ± 330°
Tilt axis control: +135° to -45°
Roll axis control: +45° to -90°
Controlled Rotation Range Pan axis control: ± 345°
Tilt axis control: ± 120°
Roll axis control: ± 45°
Pan axis control: ± 330°
Tilt axis control: +135° to -45°
Roll axis control: ± 45°

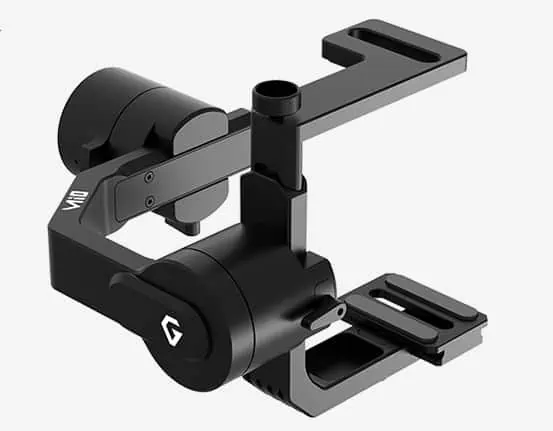

Mio Drone Camera Gimbal

Ultra-lightweight and compact drone gimbal

Mio Drone Camera Gimbal

Mio is our next-generation 3-axis drone camera stabilizer, designed for professional UAV systems and commercial & industrial applications.

Weighing just 250g, the small form factor gimbal features a simplified design with two points of contact, resulting in easier setup while still providing excellent stability and vibration resistance.

Mio Camera Gimbal

Drone camera gimbal

Mio is compatible with a wide range of cameras weighing up to 400g, including Sony mapping sensors, FLIR infrared sensors and Micasense Rededge multispectral cameras. The versatile system can be mounted on the top, bottom or front of the drone.

Ultra-lightweight and compact drone gimbal
Gremsy Mio Camera Gimbal

The quick release gimbal features a single 20 pin connector for AUX, COM, CAN, SBUS and PPM connections. The AUX port provides up to 8 signals, such as camera triggers or AV signals, for connecting to other external devices.

Specifications:

Dimensions (H x W x D) 175 x 99 x 120 mm (gimbal)
70 x 85 x 43 (camera cage)
Weight 0.55 lbs (250 g)
Maximum Payload 0.88 lbs (400g)
Maximum Controlled Rotation Speed Pan axis: 100°/s
Tilt axis: 100°/s
Roll axis: 100°/s
Mechanical Endpoint Range Pan axis control: ±338°
Tilt axis control: -200° to +135°
Roll axis control: -265° to +75°
Controlled Rotation Range Pan axis control: ±325°
Tilt axis control: ± 120°
Roll axis control: ± 40°

Pixy U Universal Drone Camera Gimbal

Universal gimbal stabilizer for drones

Pixy U Universal Drone Camera Gimbal banner

The Pixy U is a compact, ultra-lightweight universal drone gimbal supporting a wide variety of camera mountings for flexible aerial mission capabilities. It features a Hyper-Quick Release system for intuitive and quick connection.

Tilt angle is easily adjustable via Bluetooth, allowing users to quickly switch between different mission requirements.  An inverted mode allows cameras to be mounted on top of the drone to facilitate safe inspection work, while still capturing every accurate detail.

Universal Drone Camera Gimbal

Universal Drone Camera Gimbal Workswell

Universal Drone Camera Gimbal Sony

Pixy U Universal Drone Camera Gimbal

Gremsy’s intuitive gTune software allows pilots to define different profiles for different cameras and easily switch between them, optimizing payload parameters for specific mission objectives. The Pixy U is compatible with Pixhawk UAV autopilots as well as the DJI Matrice 600 flight controller.

Gremsy is currently developing an open Software Development kit that will allow users to develop flexible solutions for commercial and industrial drone aerial imaging applications.

Pixy U Universal Compact Drone Camera Gimbal

Specifications:

Dimensions (H x W x D) 200 x 143 x 112 mm (gimbal)
70 x 65.5 x 100 mm (camera cage)
Weight 1 lb (0.465 kg)
Maximum Payload 1 lb (0.465 kg)
Maximum Controlled Rotation Speed Pan axis: 100°/s
Tilt axis: 100°/s
Roll axis: 100°/s
Mechanical Endpoint Range Pan axis control: +330° to -330°
Tilt axis control: +135° to -45°
Roll axis control: +45° to -90°
Controlled Rotation Range Pan axis control: +330° to -330°
Tilt axis control: +135° to -45°
Roll axis control: ± 45°

Watch the Pixy U operate in mapping mode:

Pixy U drone camera stabilizer

Pixy U gimbal stabilizer for drones

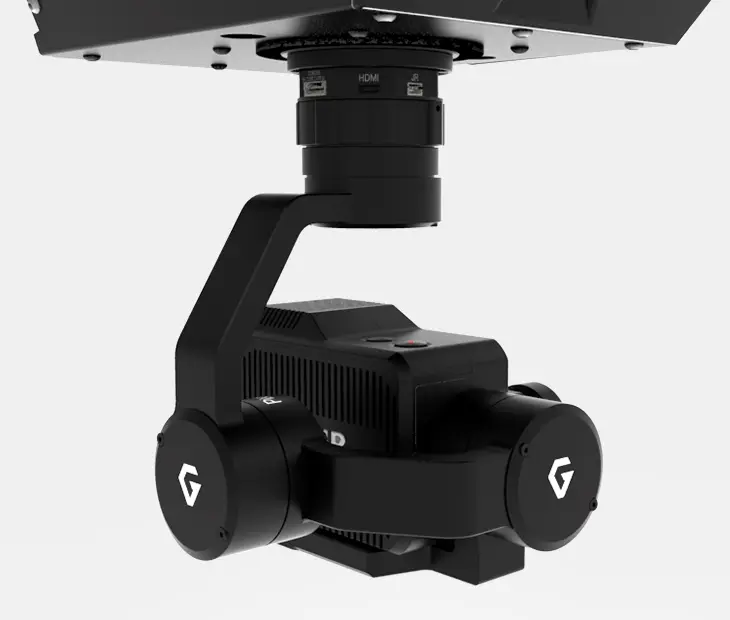

Pixy F FLIR Drone Camera Gimbal

Compact drone gimbal for FLIR Duo Pro R thermal imager

Pixy F FLIR Drone Camera Gimbal

The Pixy F is a lightweight, palm-sized drone camera stabilizer specifically designed for the FLIR Duo Pro R thermal imaging camera. The gimbal is SWaP-optimized to maximise UAV flight time, and features a Hyper-Quick Release system for easy rapid assembly. Onboard HDMI and AUX ports provide direct monitoring of camera signals.

With no balancing or tuning required, setup is incredibly fast and intuitive. The sophisticated absolute encoder gives the system a startup time of 2 seconds, with high-precision home position detection even under heavy vibration conditions.

Pixy F is fully compatible with Pixhawk UAV flight controllers for seamless attitude synchronisation.

Pixy F FLIR Drone Camera Gimbal

Specifications:

Dimensions (H x W x D) 153 x 132 x 139 mm (gimbal)
Weight 0.8 lb (0.36 kg)
Maximum Controlled Rotation Speed Pan axis: 100°/s
Tilt axis: 100°/s
Roll axis: 100°/s
Mechanical Endpoint Range Pan axis control: +330° to -330°
Tilt axis control: +135° to -45°
Roll axis control: +45° to -90°
Controlled Rotation Range Pan axis control: +330° to -330°
Tilt axis control: +135° to -45°
Roll axis control: ± 45°

Pixy F drone camera stabilizer

Pixy F gimbal stabilizer for drones

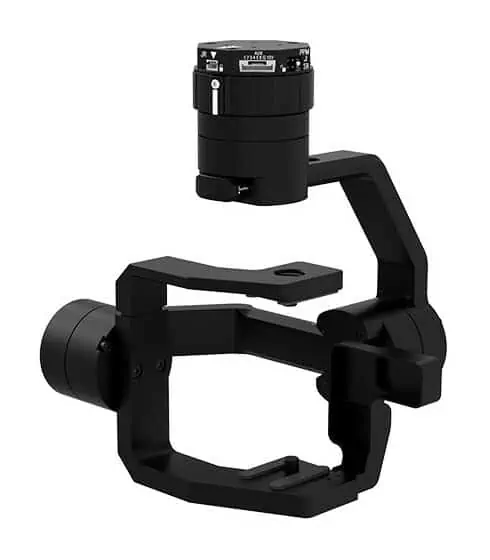

Pixy WS Drone Camera Gimbal

Lightweight drone gimbal for the Wiris Security camera

Pixy WS Drone Camera Gimbal

The Pixy WS is a unique stabilizing gimbal specially developed to fit the dual-sensor Wiris Security thermal and RBG camera. The lightweight gimbal requires no balancing or tuning, resulting in the fastest possible setup time.

Wiris Security drone camera gimbal

Pixy WS delivers high-performance stabilization even in inverted configuration, making it ideal for precision imaging in drone applications such as security and search and rescue.

The gimbal is compatible with a variety of drone flight controllers such as Pixhawk and DJI Flight Controller.

Wiris Security camera gimbal_1

Specifications:

Weight 1 lb (0.47 kg)
Pan Axis Control +330° to -330°
Tilt Axis Control +135° to -45°
Roll Axis Control ± 45°

pixy ws drone gimbal for Wiris Security camera

Pixy WP Drone Camera Gimbal

Fully integrated drone gimbal for Wiris camera payloads

The Pixy WP is a compact drone gimbal specially designed for use with the Wiris Pro and Wiris Agro R camera payloads. Easily integrated with the DJI M300 RTK, the versatile gimbal also features Pixhawk support for compatibility with a variety of other UAV platforms.

With no balancing or tuning required, the Pixy WP provides fast plug-and-play installation with a setup time of just seconds. The connection interface features a built-in HDMI quick-release functionality, and supports up to 6 AUX signals as well as USB, CAN, and UART.

Wiris Camera Gimbal for Drones

Wiris camera gimbal

Specifications:

Dimensions (H x W x D) 165 x 125 x 130 mm (gimbal)
64 x 85.7 x 38.4 mm (camera cage)
Weight 1 lb (0.465 kg)
Maximum Controlled Rotation Speed Pan axis: 100°/s
Tilt axis: 100°/s
Roll axis: 100°/s
Mechanical Endpoint Range Pan axis control: +330° to -330°
Tilt axis control: +135° to -45°
Roll axis control: +45° to -90°
Controlled Rotation Range Pan axis control: +330° to -330°
Tilt axis control: +135° to -45°
Roll axis control: ± 45°

Wiris drone camera gimbal

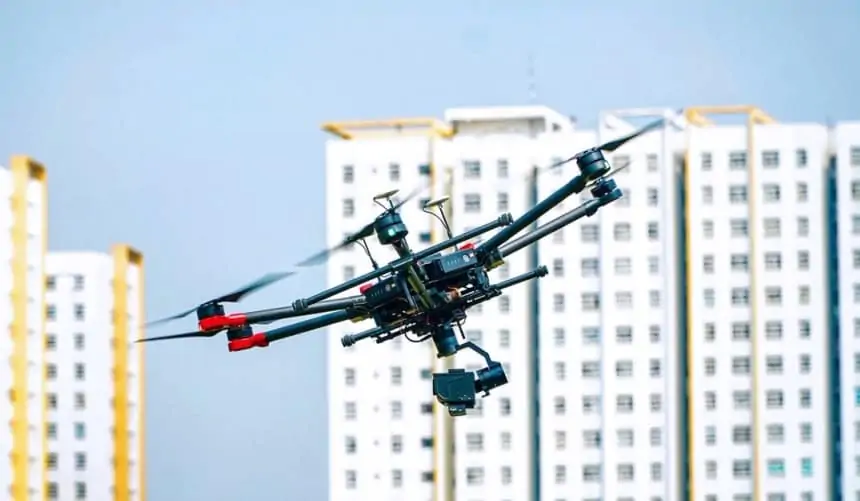

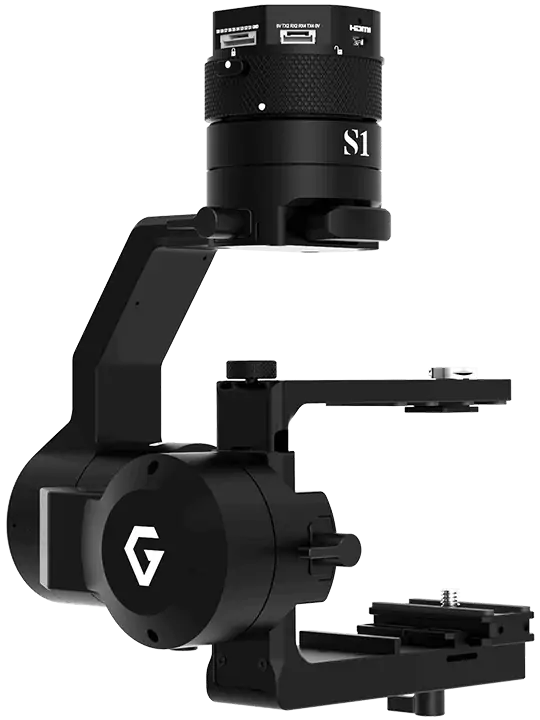

Gremsy S1 (V3) Industrial Drone Gimbal

Industrial-grade drone gimbal designed for thermal imaging

Gremsy S1V3 Industrial Drone Gimbal

The Gremsy S1 (V3) is a small, lightweight single-arm drone gimbal specially designed for industrial-grade thermal imaging and other aerial mapping and inspection applications. The gimbal is compatible with a wide range of UAVs and features full support for the FLIR Duo Pro R drone thermal camera, as well as compatibility with leading sensor models from Sony, TeAx, Wiris and more.

Gremsy S1V3 Single Arm Drone GimbalThe gimbal’s Hyper Quick Release functionality enables easy push-and-twist connection and hot-swapping within seconds. I/O capabilities, including USB, serial, CAN, SBUS and a 9-signal auxiliary port for extra camera control functionality, are all located on the Hyper Quick Release mechanism for quick and intuitive connection.

The S1 features a smart mapping mode, with a user-defined home position that aligns the camera with the forward position of the drone and tilted down 90 degrees. Built-in Bluetooth functionality allows users to conveniently control the gimbal via smartphone, tablet or other suitable devices.

This upgraded version of the Gremsy S1 gimbal benefits from a 20% increase in motor power for enhanced stability, and a pan rotation range increased from ± 160° to ± 345°.

Specifications:

Dimensions (H x W x D) 220 x 150 x 168 mm (gimbal)
75 x 200 x 65 mm (camera cage)
Weight 1.8 lbs (830 g)
Maximum Payload 1.6 lb (750 g)
Maximum Controlled Rotation Speed Pan axis: 180°/s
Tilt axis: 180°/s
Roll axis: 180°/s
Mechanical Endpoint Range Pan axis control: ±345°
Tilt axis control: +160° to -190°
Roll axis control: +50° to -100°
Controlled Rotation Range Pan axis control: ±345°
Tilt axis control: ±120°
Roll axis control: ± 45°

S1v3 Industrial Drone Gimbal

Gremsy Industrial Drone Gimbal

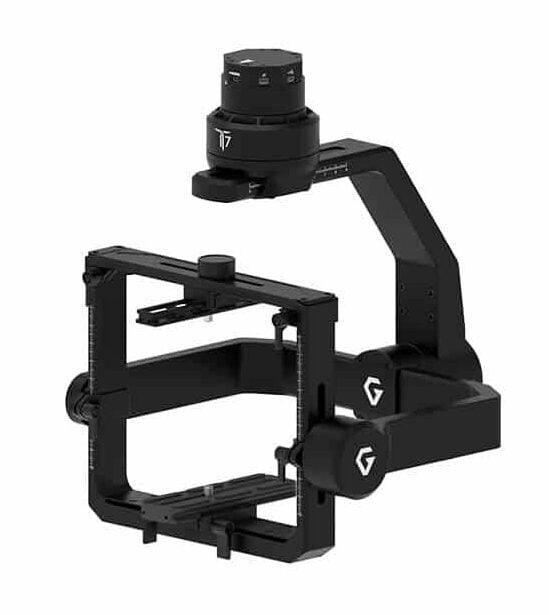

Gremsy T7 Heavy-Lift Drone Gimbal

Multi-camera gimbal for industrial drones

T7 robust gimbal for heavy-lift industrial drones

The Gremsy T7 is a robust gimbal designed for heavy-lift industrial drones. Featuring a carrying capacity of 7 lbs, the T7 can be fitted with an optional extra camera slide for versatile multi-sensor operation. Built-in HDMI Hyper Quick Release functionality enables connection with just a push and twist-lock movement, allowing hot-swapping within seconds as well as the ability to withstand thousands of mating cycles.T7 Heavy-Lift Drone Gimbal

With a large camera cage, the T7 is compatible with a wide range of cameras and payloads from leading manufacturers such as Phase One, Workswell and Senop. The powerful motor enables high-performance handling of even large and heavy cameras.

I/O capabilities, all located on the Hyper Quick Release mechanism for quick and intuitive connection, include USB, serial, CAN, SBUS and a 9-signal auxiliary port for functions such as camera trigger, PWM control and AV signals. Integrated Bluetooth functionality allows convenient control of the T7 gimbal via smartphone, tablet or other suitable device.

Specifications:

Dimensions (H x W x D) 260 x 253 x 345 mm
Weight 4 lbs (1860 g)
Maximum Payload 7 lbs (3175 g)
Maximum Controlled Rotation Speed Pan axis: 180°/s
Tilt axis: 180°/s
Roll axis: 180°/s
Mechanical Endpoint Range Pan axis control: ±345°
Tilt axis control: ±150°
Roll axis control: +80° to -264°
Controlled Rotation Range Pan axis control: ±300°
Tilt axis control: ±120°
Roll axis control: ± 45°

Multi-camera gimbal for industrial drones

Gremsy T7 Heavy-Lift Drone Gimbal

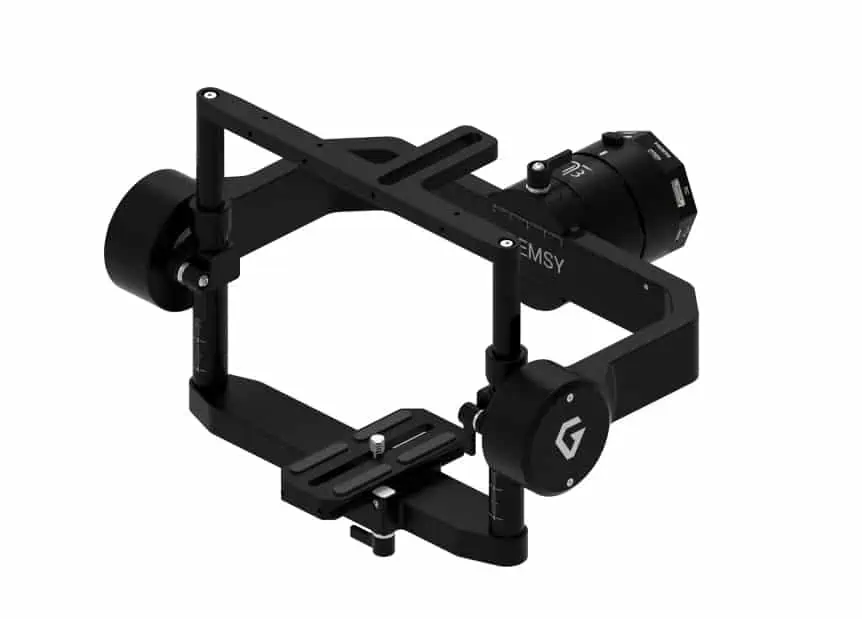

Gremsy T3 Lightweight Drone Gimbal

Lightweight drone camera stabilizing gimbal with rapid setup

Gremsy T3 drone camera gimbal stabilizer

The Gremsy T3 (V3) is a lightweight 3-axis camera stabilizing gimbal, featuring HDMI Hyper Quick Release functionality that enables connection with just a push and twist-lock movement. Tool-free balancing and easy plug-and-play installation allow operators to set up cameras and be ready to fly within seconds.

The T3 can receive power directly from the drone battery, and the gimbal’s integrated 14.5V regulator allows you to power other auxiliary systems such as third party flight controllers, remote control systems and other accessories.

Gremsy T3 gimbal stabilizer for drones

I/O capabilities, all located on the Hyper Quick Release mechanism for quick and intuitive connection, include USB, serial, CAN, SBUS and a 9-signal auxiliary port for functions such as camera trigger, PWM control and AV signals. Integrated Bluetooth functionality allows convenient control of the T3 gimbal via smartphone, tablet or other suitable device.

An integrated temperature-controlled and heated IMU, inside an aluminium housing, provides high-accuracy operation even in extreme temperature conditions. Gremsy’s gMotion controller provides professional-level stabilization with 32-bit resolution and correction updates at up to 2000 Hz, resulting in smoother, superior-quality footage.

Specifications:

Dimensions (H x W x D) 120 x 152 x 100 mm (camera cage)
Weight 2.65 lb (1200 g)
Maximum Payload 3.7 lbs (1700 g)
Maximum Controlled Rotation Speed Pan axis: 180°/s
Tilt axis: 180°/s
Roll axis: 180°/s
Mechanical Endpoint Range Pan axis control: ±345°
Tilt axis control: ±150°
Roll axis control: +80° to -264°
Controlled Rotation Range Pan axis control: ±345°
Tilt axis control: ±120°
Roll axis control: ± 45°

T3 drone gimbal camera

T3 drone gimbal camera

Gremsy H16 Drone Camera Stabilizing Gimbal

Advanced drone camera stabilizer for professional filmmaking

Gremsy H16 drone camera stabilizing gimbal

The Gremsy H16 is a state-of-the-art drone camera stabilizing gimbal for professional aerial filmmaking applications. Built from carbon fibre and aircraft-grade aluminium, the lightweight but solid gimbal system is designed for even the most extreme environments.

Incorporating powerful direct-drive hollow-shaft motors with ultra-high resolution, the H16 provides precision control for supreme accuracy and incredibly smooth footage.

H16 Drone camera stabilizing gimbal

The built-in precisely calibrated IMU sensor features an innovative auto-bias tracking algorithm that improves gyro bias stability over time.

The flexible, easily adjustable camera cage, with a quick-release design for easy installation and swapping, allows the H16 to carry a wide range of leading payloads up to 16 lbs in weight, including cameras from Sony, Canon, Nikon, Panasonic and RED.

Accessories for the H16 include a vibration damping kit, a 360-degree landing gear and a circular quick-release attachment. An intuitive app, available for both Android and iOS, allows drone pilots to easily access and modify gimbal settings via Wi-Fi.

Specifications:

Dimensions (H x W x D) 200 x 195 x 200 mm (camera cage)
Weight 4.85 lb (2.2 kg)
Maximum Payload 16.0 lb (7.25 kg)
Maximum Controlled Rotation Speed Pan axis: 200°/s
Tilt axis: 100°/s
Roll axis: 30°/s
Mechanical Endpoint Range Pan axis control: 360°
Tilt axis control: +270° to -150°
Roll axis control: ± 110°
Controlled Rotation Range Pan axis control: 360°
Tilt axis control: +45° to -135°
Roll axis control: ± 45°

H16 drone camera stabilizing gimbal

H16 drone camera gimbal stabilizer

Custom Gimbal Solutions

As a world-leading manufacturer of camera stabilizers, we offer flexible custom gimbal solutions to accommodate your specific requirements. With more than 10 years of experience in the gimbal and drone industry, and our in-house capabilities from designing to manufacturing, we can create your custom solution from scratch or redesign it based on our existing gimbal platforms. Our customized drone gimbals are highly adaptable for demanding cinematic and industrial applications.

We are proud to develop custom drone gimbals with world-leading camera and drone manufacturers, including Sony, Phase One, and Acecore.

More information: Custom Drone Gimbals >>

Articles
+ Load More Articles
Regional Offices & Locations
Gremsy - Headquarters Vietnam 152-154 Street No.02, Van Phuc Residential City, Hiep Binh Phuoc Ward, Thu Duc City, Ho Chi Minh City, Vietnam (+84-28) 37 205 221 Contact Office Send Message Website
Kopterworx - Dealer Slovenia Grajska pot, Leskovec pri Krškem, Slovenia +386 74 901 100 Contact Office Website
Hexa Drone - Dealer France Avenue du Bois, Lafayette Saint-Didier-en-Velay, France +33 477 924 842 Contact Office Website
Workswell s.r.o - Dealer Czech Republic Albrechtova vrchu, Praha 13-Stodůlky, Czech Republic +420 725 877 063 Contact Office Website
Acecore Technologies - Dealer Netherlands Romeinenweg 86c, 5349AL Oss, The Netherlands +31 641 074 868 Contact Office Website
Aerogenix - Dealer Spain Colmenar Viejo, Madrid, Spain +34 669 754 922 Contact Office Website
Air Supply Aerial - Dealer United States of America P.O. Box 354, Philomath, OR 97370, USA +1 (605) 695-2228 Contact Office Website
BFD Systems - Dealer United States of America 3449 W Indiana Ave, Philadelphia, PA 19132, USA +1 215-475-6057 Contact Office Website
Sky Link - Dealer Japan Kamigamo Iwagagakiuchicho, Kita-ku, Kyoto, Japan +81 75 708 2369 Contact Office Website
We Make Drone - Dealer South Korea Obiz Tower, 126, Beolmal-ro, Dongan-gu, Anyang, Gyeonggi-do, Korea +82 (031) 360-8590 Contact Office Website
Airsens - Dealer South Korea Seoul Techno Park, Gongneung-ro, Nowon-gu, Seoul, Korea +82 2 944 6288 Contact Office Website
Rise Above - Dealer Australia Dunn Rd Smeaton Grange, NSW, 2567, Australia +61 246 473 450 Contact Office Website
