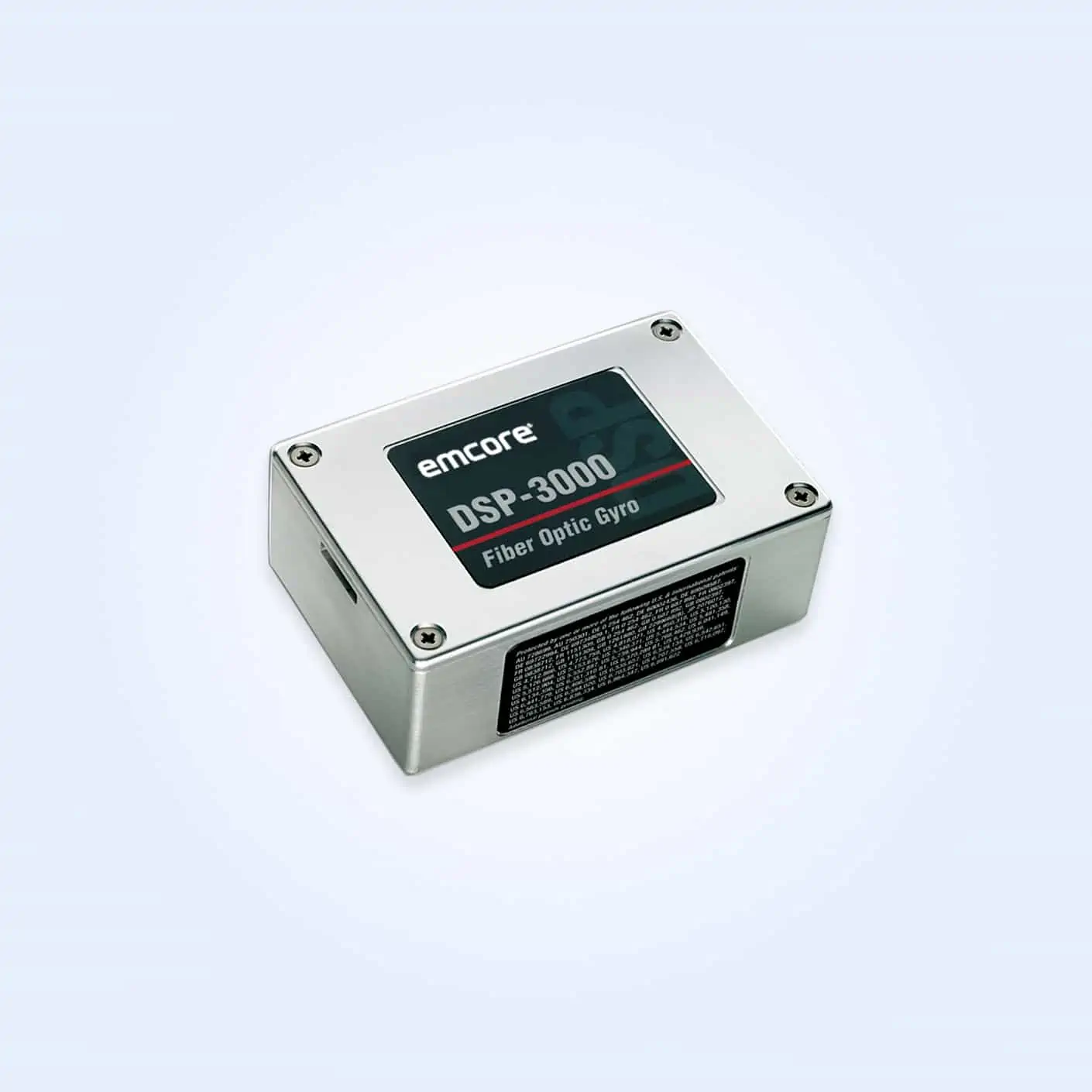

DSP-3000 Fiber Optic Gyro
The DSP-3000 is a single-axis non-ITAR fiber optic gyro (FOG) with a compact and robust design. With state-of-the-art digital signal processing (DSP) electronics, the unit delivers extremely low noise (ARW) as well as significant performance improvements in critical areas such as scale factor and bias stability and scale factor linearity.
The versatile sensor features a choice of analog, digital, and digital RS-232 outputs, and is ideal for a range of applications including inertial measurement units, integrated GPS/INS, AHRS, and antenna and gimbal stabilization and pointing.
Specifications:
| Digital | Analog | |
| Dimensions (L x W x H) | 88.9 x 58.4 x 33.0 mm (3.5 x 2.3 x 1.3") |
88.9 x 58.4 x 33.0 mm (3.5 x 2.3 x 1.3") |
| Weight | 0.27 kg (0.6 lbs) | 0.27 kg (0.6 lbs) |
| Power Consumption | 3 W max 1.25 W typical |
3 W max 1.25 W typical |
| Max Input rate | ±375°/sec | ±100°/sec |
| Bias Instability (25oC) | ≤1°/hr, 1σ | ≤3°/hr, 1σ |
| Scale Factor Non-linearity (25oC) | ≤500 ppm, 1σ | ≤500 ppm, 1σ |
| Angle Random Walk (25oC) | ≤0.067°/√hr (≤4°/hr/√Hz) | ≤0.1°/√hr (≤6°/hr/√Hz) |
