High-Performance Video Graphics, GPGPU, AI/ML Processing & Display Solutions for C5ISR Applications
Condor GR4-RTX3000 3U VPX 3U VPX Graphics & Video Capture Card with 3G-SDI / DisplayPort Outputs
Condor GR4-RTX3000 3U VPX

3U VPX Graphics & Video Capture Card with 3G-SDI / DisplayPort Outputs

Visit Website Contact
Condor GR4-RTX3000 3U VPX

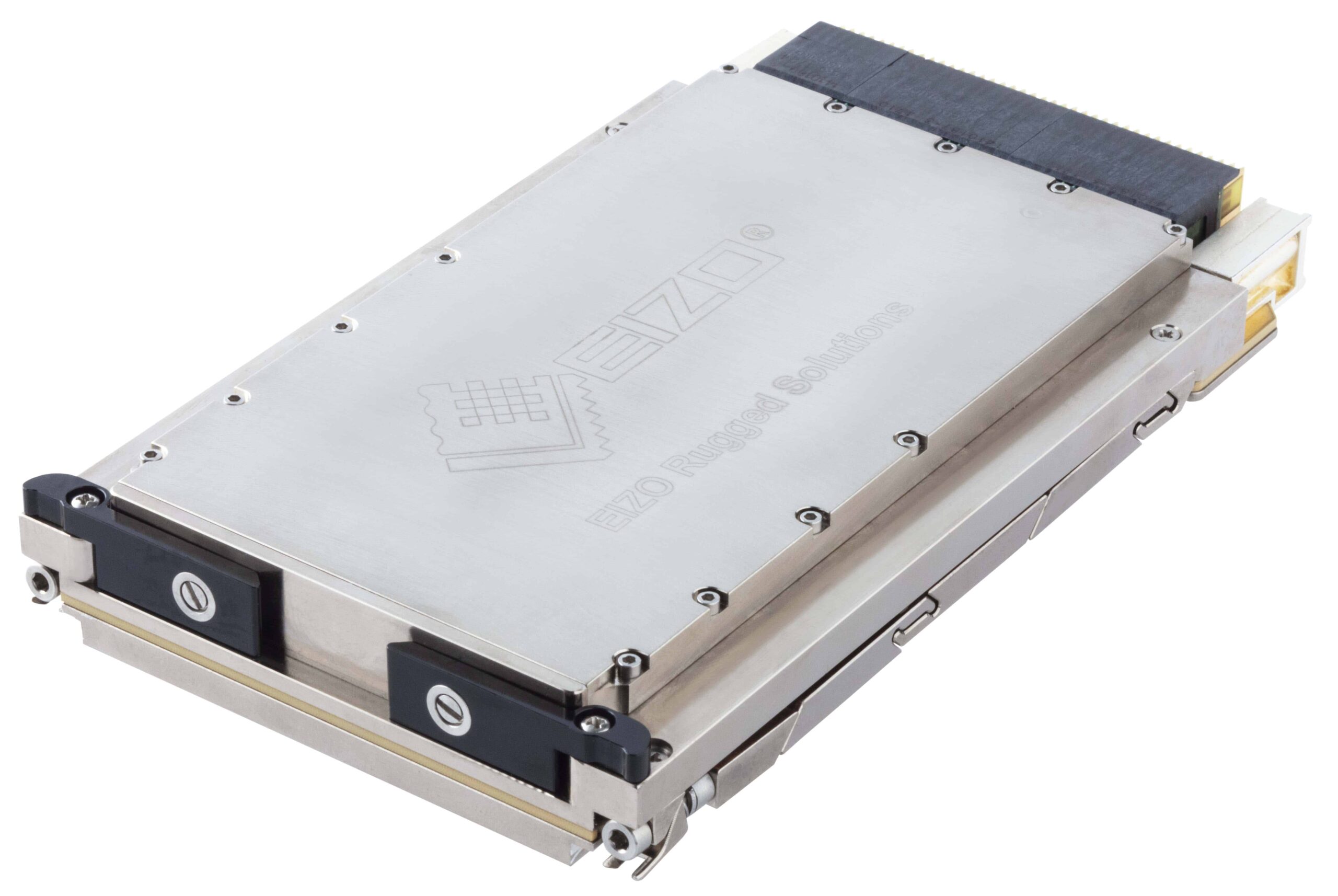

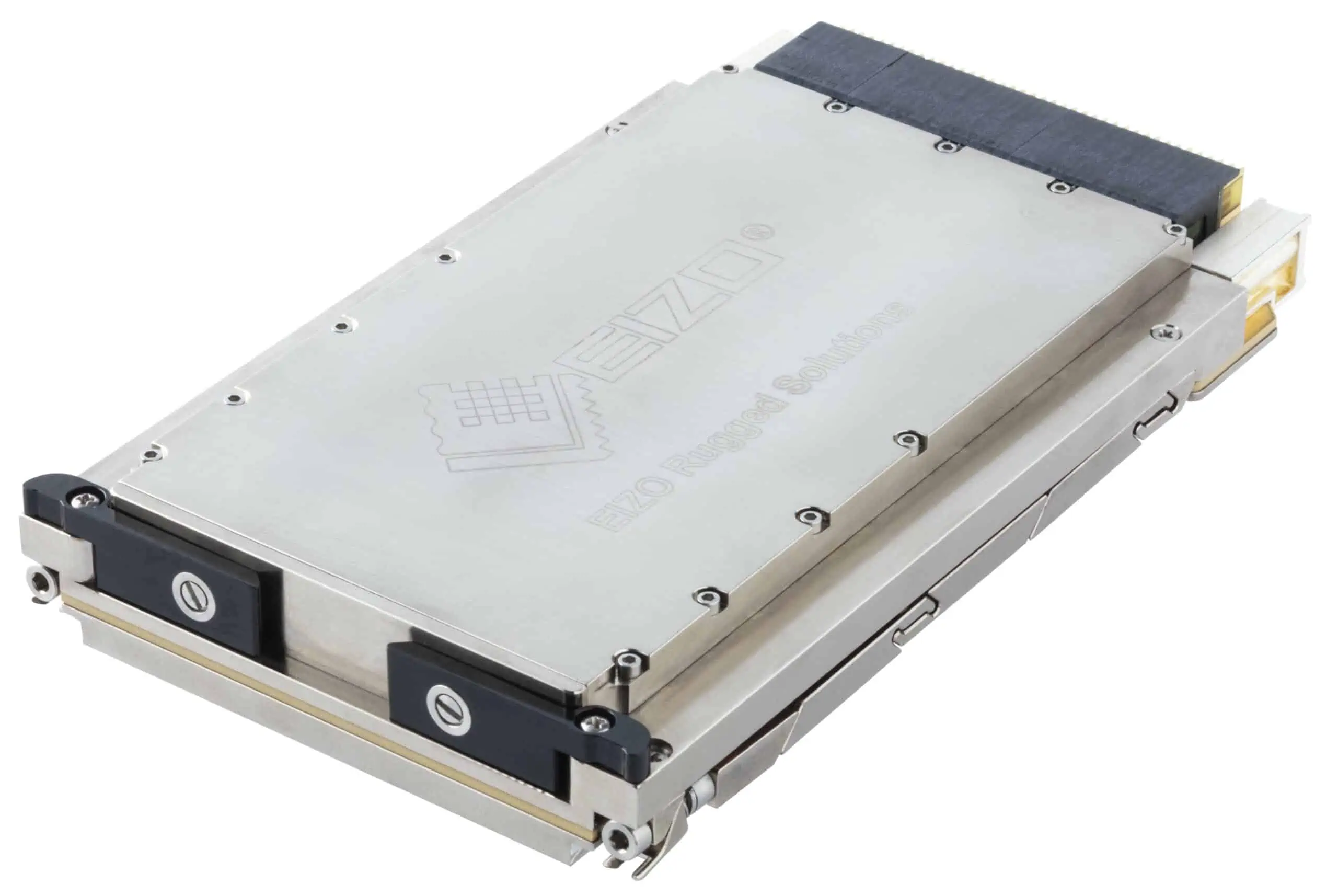

The Condor GR4-RTX3000 is a rugged 3U VPX form factor card based on NVIDIA® Turing™ architecture and the NVIDIA RTX™ platform. It operates as an all-in-one solution for video capture, process, encode, decode, stream, and display. The Condor GR4-RTX3000 is a key component of High Performance Embedded Computing (HPEC) systems as this one device handles data and image processing from up to four sensors to perform activities such as image enhancement, image analysis, video stitching, remote sensing, and target acquisition, target tracking and several other data processing tasks.

Low-latency Video Capture & Display

Along with built-in H.265 (HEVC) / H.264 (MPEG4 AVC) hardware based encode and decode, the card also supports SDI VANC KLV metadata insertion and extraction, and is ideal for applications involving low latency video capture/display in the ISR and Signals Intelligence (SIGINT) markets.

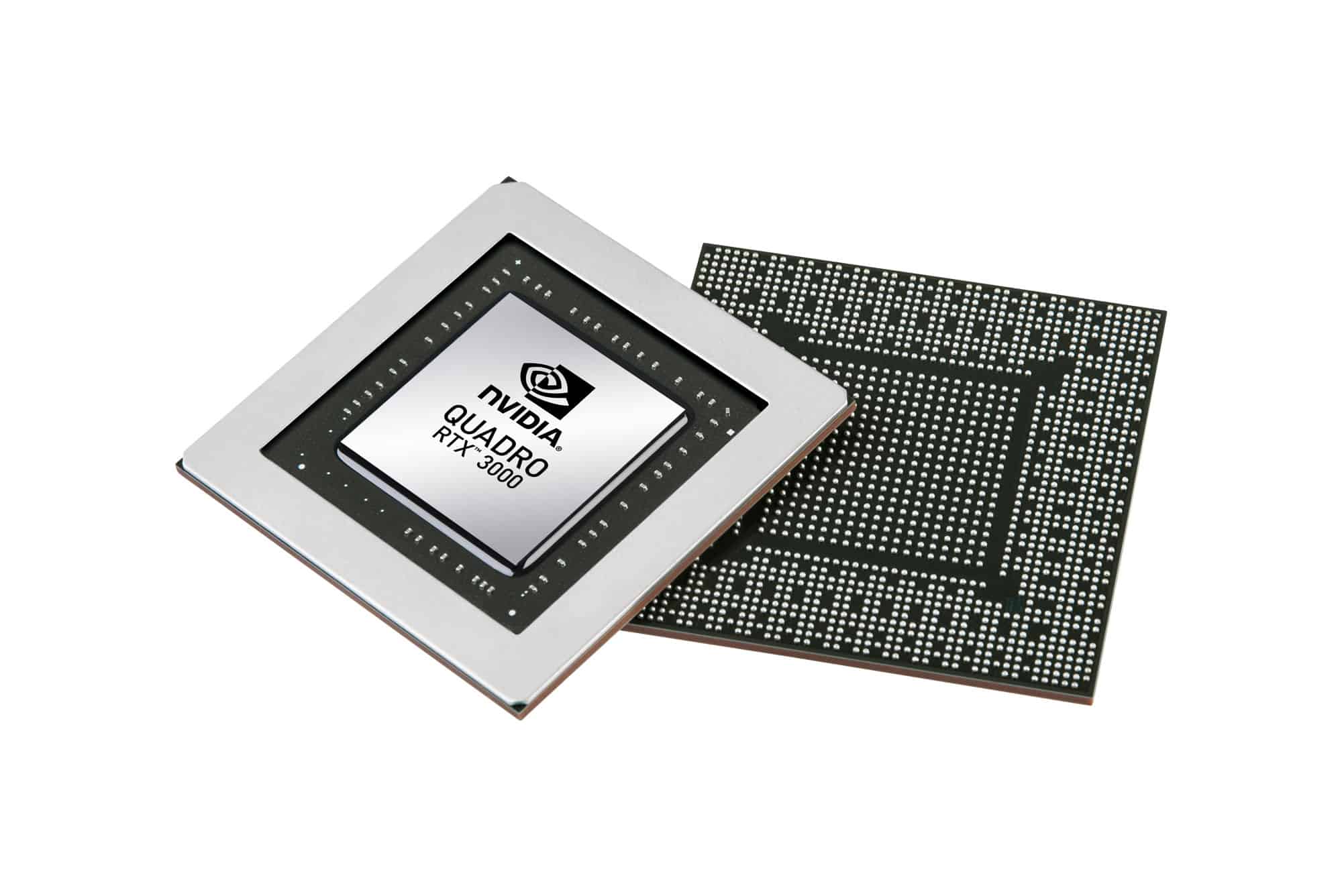

This Condor GR4-RTX3000 card has 6 GB GDDR6 graphics memory, along with 1920 CUDA® cores and delivers up to 5.3 TFLOPS floating-point performance with CUDA™ and OpenCL™ support. It also takes full advantage of the NVIDIA GPUDirect™ RDMA to minimize latency for real-time video and data streaming. The board design is modular and allows for graphics performance upgrades in the future. The 3G-SDI I/O can be configured as HD-SDI & SD-SDI if required. The product supports PCI Express Gen 3 (8 or 4 lane) when mated with a compatible Single Board Computer (SBC). The card is available in conduction cooled withthermally efficient heatsink technology and rear I/O.
