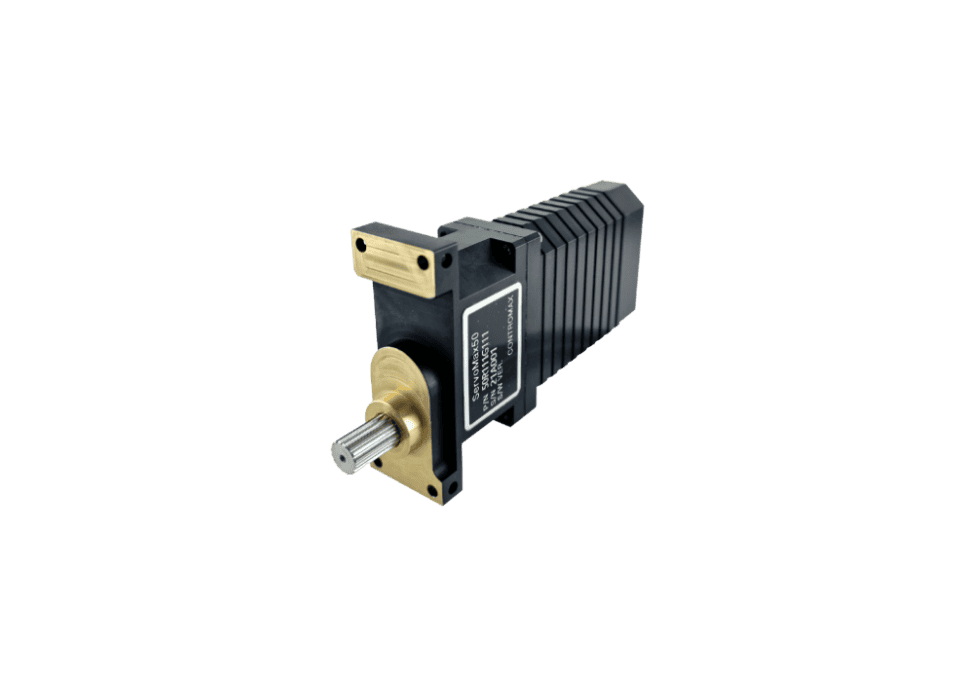

ServoMax50
The ServoMax50 is an aviation-grade servo actuator with dual-CAN communication, designed for advanced UAV applications such as heavy-lift cargo drones and UAM (urban air mobility). It is ideal for a wide range of safety-critical applications such as control of wing surfaces, swashplates, brakes and payload bay doors.
The servo's advanced design features a high-reliability BLDC motor, an analog Hall effect sensor and a contactless encoder for precise control of rotor position. Designed to produce minimal acoustic and electromagnetic noise, it also incorporates sophisticated anti-jitter algorithms for reduced vibration.
Specifications:
| Dimensions (L x W x H): | 69 x 27 x 110.6 mm |
| Weight: | ≤400 g |
| Operating Voltage: | 18–32 VDC |
| Operating Current: |
Rated 1.0A Peak 1.6A |
| Rated Torque: | ≥50 kgf·cm |
| Max Torque: | ≥80 kgf·cm |
| Rated Speed: | ≥150°/sec @ 28VDC |
| No Load Speed: | ≥190°/sec @ 28VDC |
| Interfaces: | Dual CAN 2.0A/B |
