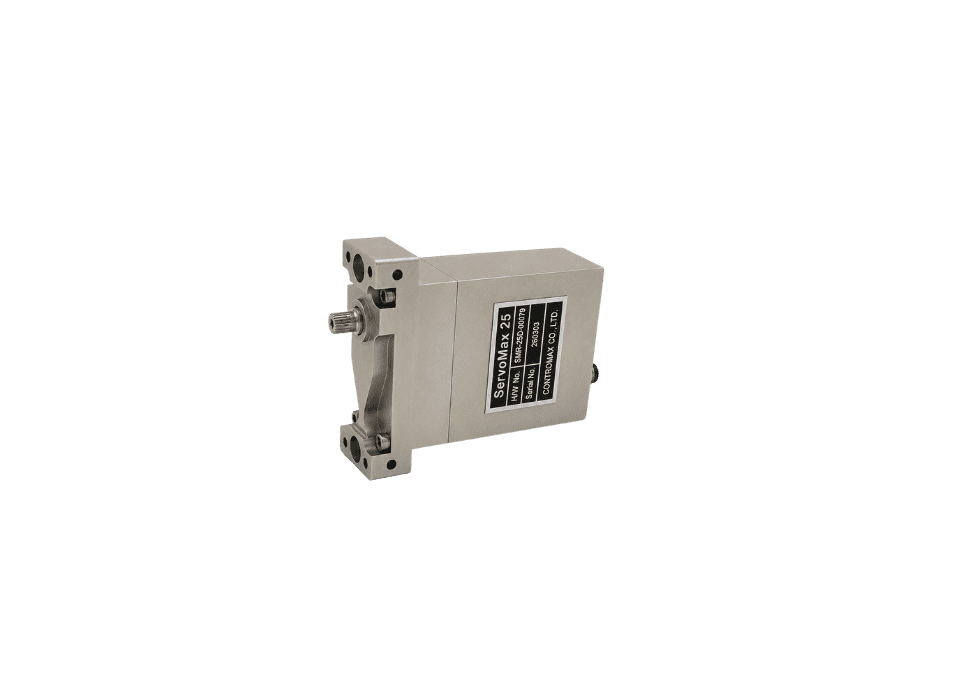

ServoMax25AD
The ServoMax25AD is a high-torque, dual-interface servo actuator for UAV flight control. It is ideal for a wide range of safety-critical applications such as control of wing surfaces, swashplates, brakes and payload bay doors.
The servo's advanced design features a high-reliability BLDC motor, an analog Hall effect sensor and a contactless encoder for precise control of rotor position. Designed to produce minimal acoustic and electromagnetic noise, it also incorporates sophisticated anti-jitter algorithms for reduced vibration.
Specifications:
| Dimensions (L x W x H): | 70 x 25 x 118.2 mm |
| Weight: | ≤260 g |
| Operating Voltage: | 18–32 VDC |
| Operating Current: |
Rated 0.6A Peak 1.0A |
| Rated Torque: | ≥30 kgf·cm |
| Max Torque: | ≥43 kgf·cm |
| Rated Speed: | ≥170°/sec @ 28VDC |
| No Load Speed: | ≥190°/sec @ 28VDC |
| Interfaces: | PWM and CAN |
