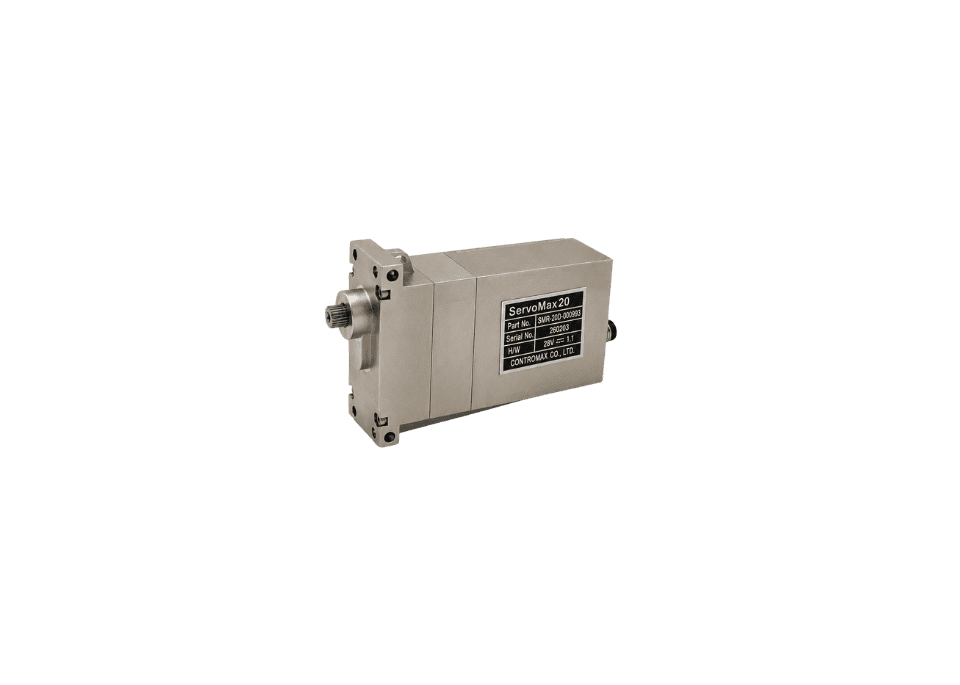

ServoMax20HD
The ServoMax20HD is a high-response servo actuator with multiple interface options designed for advanced UAV applications such as heavy-lift cargo drones and UAM (urban air mobility). It is ideal for a wide range of safety-critical applications such as control of wing surfaces, swashplates, brakes and payload bay doors.
The servo's advanced design features a high-reliability BLDC motor, an analog Hall effect sensor and a contactless encoder for precise control of rotor position. Designed to produce minimal acoustic and electromagnetic noise, it also incorporates sophisticated anti-jitter algorithms for reduced vibration.
Specifications:
| Dimensions (L x W x H): | 62 x 20 x 79.8 mm |
| Weight: | ≤156 g |
| Operating Voltage: | 12.8–16.8 and 18–32VDC |
| Operating Current: |
Rated 0.4A Peak 0.8A |
| Rated Torque: | ≥12 kgf·cm |
| Max Torque: | ≥24 kgf·cm |
| Rated Speed: | ≥242°/sec @ 28VDC |
| No Load Speed: | ≥372°/sec @ 28VDC |
| Interfaces: | PWM with voltage feedback, RS-485 and CAN |
