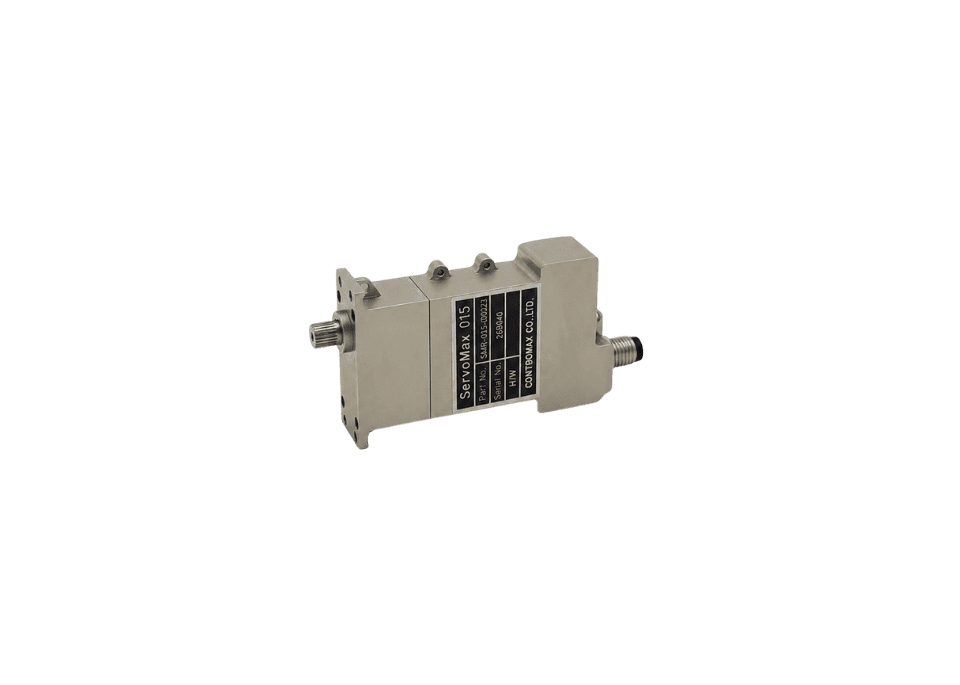

The ServoMax15 is an ultra-lightweight, high-response aviation-grade servo actuator for small UAVs. Constructed with hardened steel gears and an anodized aluminum housing, the actuator is engineered for long-term operational reliability in challenging environments.
All ServoMax series models undergo comprehensive environmental and performance testing to validate operation under demanding conditions. Depending on application requirements, testing may include electromagnetic compatibility, temperature exposure, shock and vibration, acceleration, altitude variation, moisture, salt exposure, sand, and dust.
ServoMax15 is suited for small UAVs requiring accurate positioning, smooth motion, and consistent performance. The actuator supports CAN, and PWM communication interfaces with voltage feedback capability, allowing integration into automated control systems.
Specifications:
| Torque, Rated: | 7 Kgf·cm |
| Torque, Max: | 11 Kgf·cm |
| Speed, Rated: | 300°/s @ 28 VDC |
| Speed, No-load: | 410°/s @ 28 VDC |
| Operating Voltage: | 6.4–8.4, 12.8–16.8 and 18–32 VDC |
| Control Accuracy: | ≤0.5° |
| Travel Range: | PWM ±45° Max. / RS485 or CAN ±170° Max. |
| Connector: | Circular receptacle |
| Interface / Databus: | CAN / PWM |
| Dimensions: | 69.7 × 15 × 41.2 mm |
| Weight: | 80 g |
