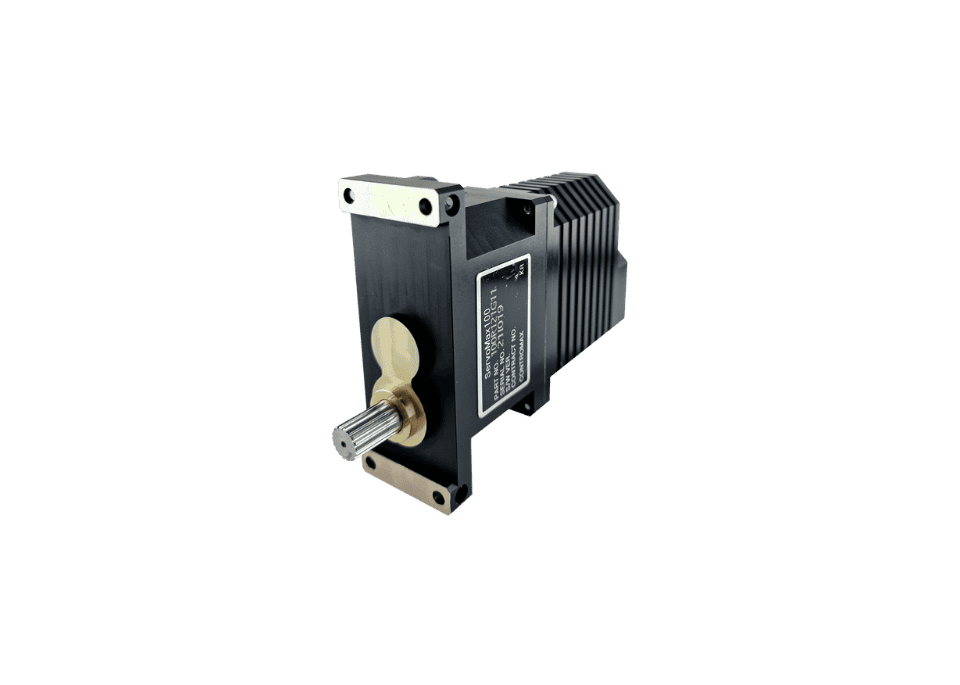

ServoMax100
The ServoMax100 is a high-torque aerospace-grade servo actuator for precision motion control in large UAVs. It is ideal for a wide range of safety-critical applications such as control of wing surfaces, swashplates, brakes and payload bay doors.
The servo's advanced design features a high-reliability BLDC motor, an analog Hall effect sensor and a contactless encoder for precise control of rotor position. Designed to produce minimal acoustic and electromagnetic noise, it also incorporates sophisticated anti-jitter algorithms for reduced vibration.
The rugged servo is constructed with hard-wearing stainless steel gears and an anodized aluminium housing, and is tested to MIL-STD-810 and MIL-STD-461 standards.
Specifications:
| Dimensions (L x W x H): | 93.6 x 37 x 119.4 mm |
| Weight: | ≤625 g |
| Operating Voltage: | 18–32 VDC |
| Operating Current: | Rated 1.48A |
| Rated Torque: | ≥81 kgf·cm |
| Max Torque: | ≥124 kgf·cm |
| Rated Speed: | ≥140°/sec @ 28VDC |
| No Load Speed: | ≥170°/sec @ 28VDC |
| Interfaces: | Dual CAN 2.0A/B |
