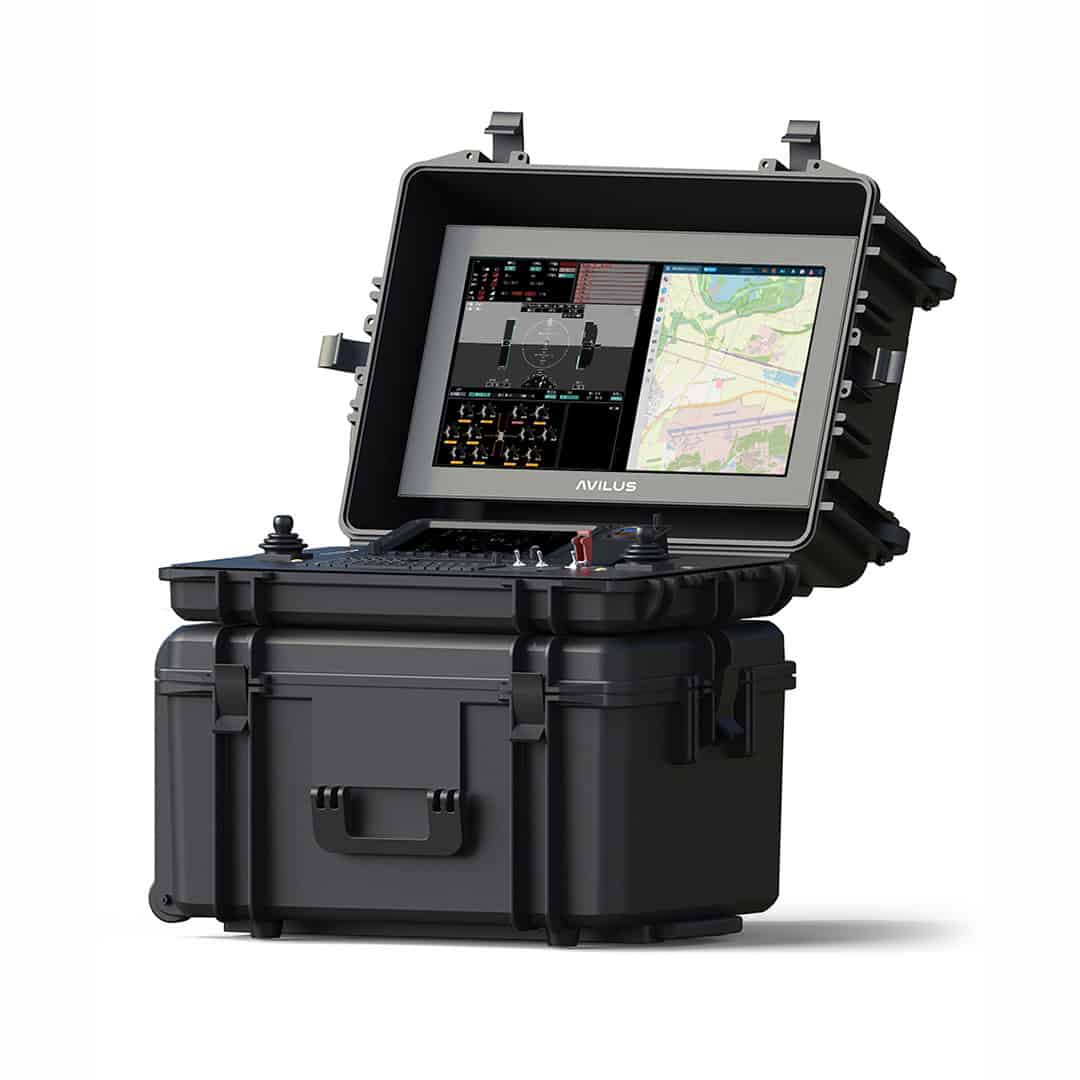

RasCore Ground is a mobile ground control unit designed to be rapidly deployed and operated by a two-person crew. Standard operating procedures require only supervision and monitoring with no piloting, making the system easy to learn with minimal training.

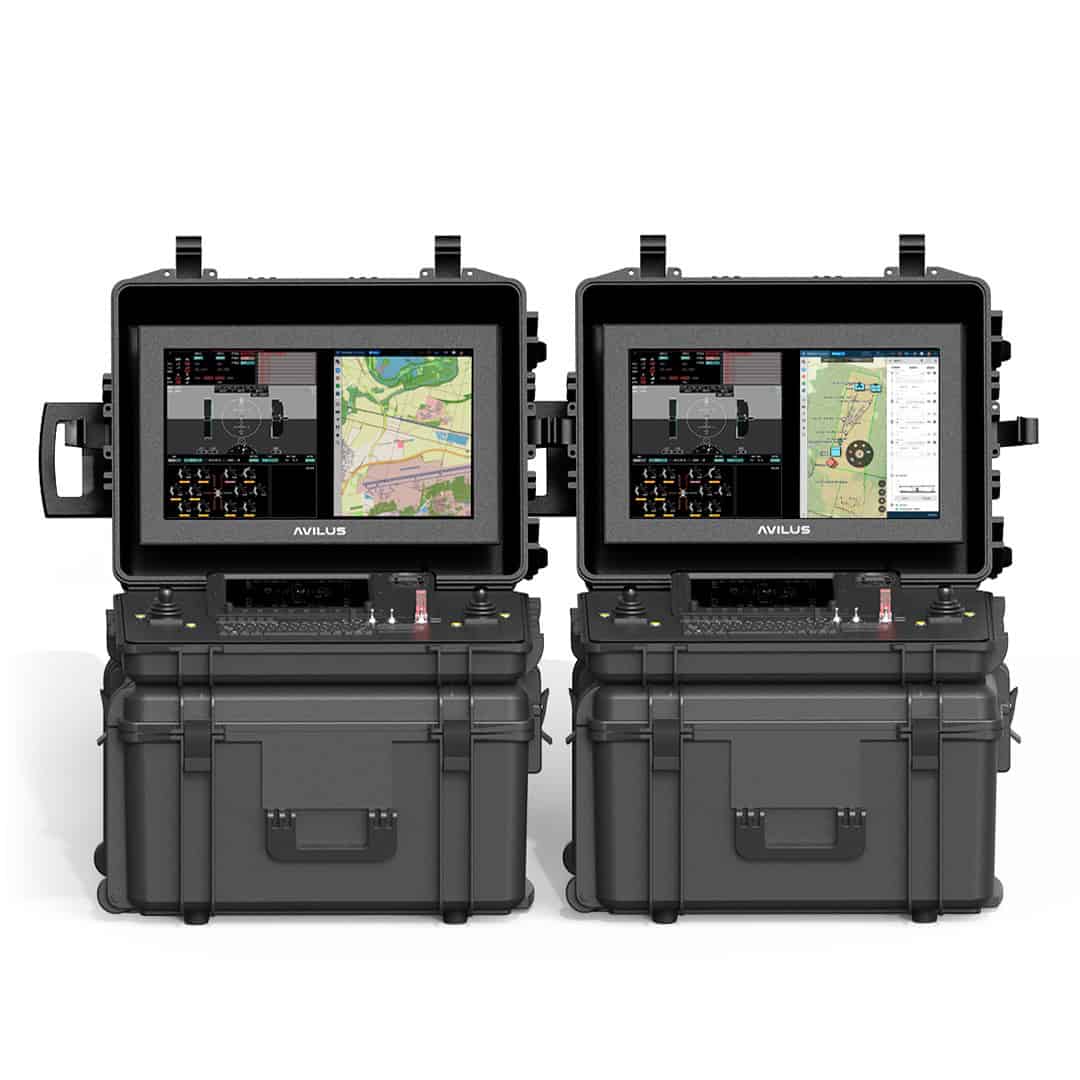

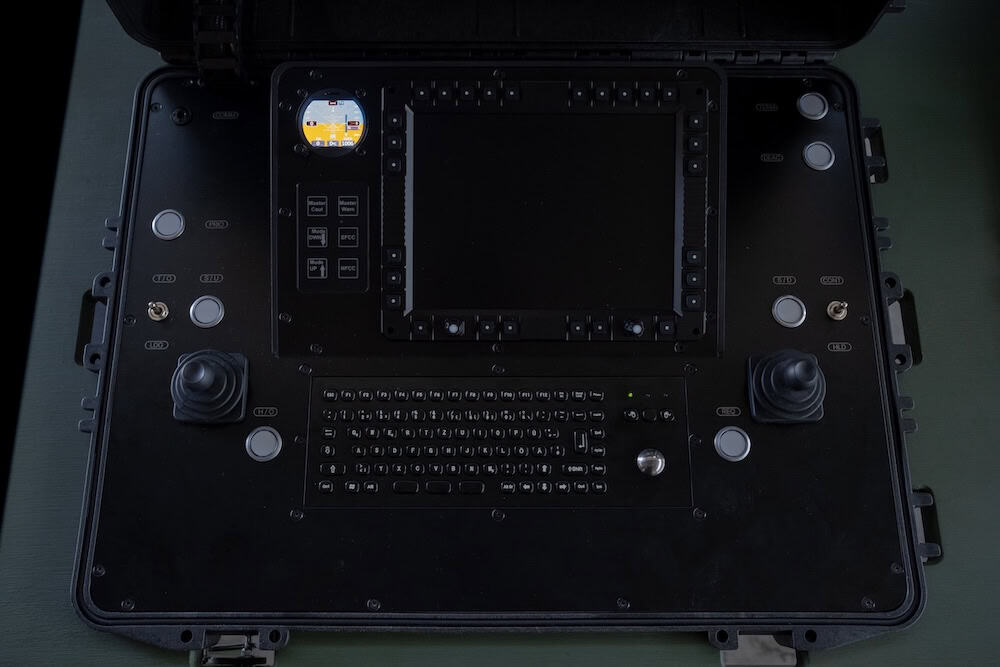

The complete system provides two remote pilot stations that are coupled together to ensure full redundancy. Each station includes a dedicated mission computer, safety-critical real-time avionics computer, and independent backup instruments. The compact units fit in four modular cases that can be transported in a single container.
RasCore Ground's architecture has been designed to comply with EASA standards for medium to high-risk operations, and is ideal for supporting a wide range of unmanned aviation missions in both civilian and contested airspace.
Specifications:
| Dimensions: | Compute Case: 68.7 x 52.8 x 37.6 cm
HMI Case: 68.7 x 52.8 x 27.6 cm |
| Packing Size: | 2.3 x 0.8 x 1 m |
| Total Weight: | 175 kg |
| Components: | 2x Compute Cases
2x HMI Cases 1x Mobile Table 1x Antenna System 2x Logistics Cases |
