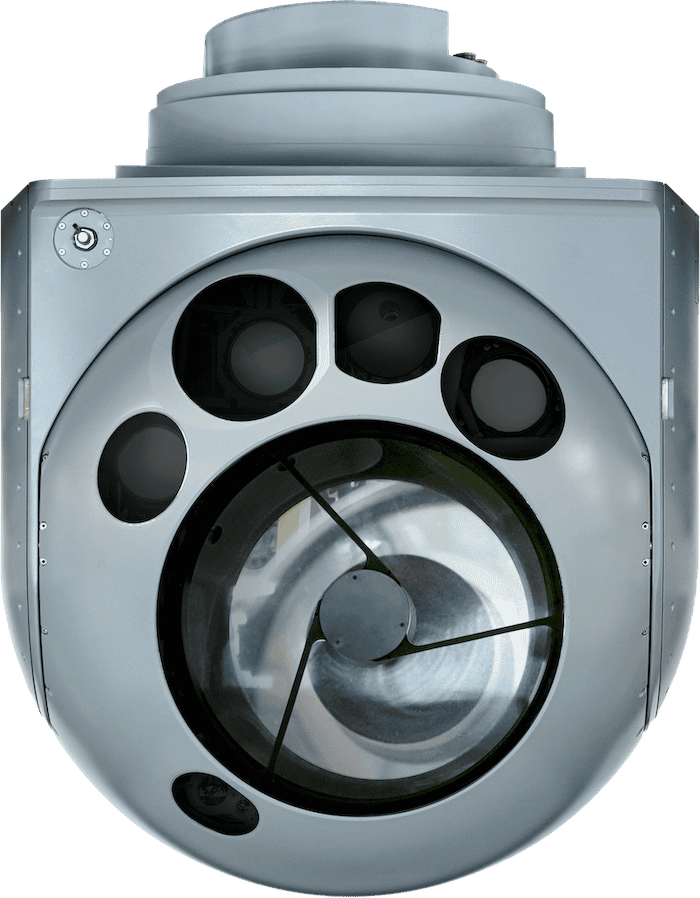

ASELFLIR 600 is a new-generation 25-inch electro-optical reconnaissance, surveillance and targeting system designed for HALE-class fixed-wing platforms. The payload provides long-range target detection, tracking and targeting through a 325 mm common aperture and high-definition imaging channels.
The system combines HD MWIR, Full HD daytime and HD SWIR cameras with laser spot tracking, laser range finding, laser target designation, laser pointer and illuminator functions. It also features internal sensor alignment, an all-digital video pipeline, advanced image processing and precise target geolocation.

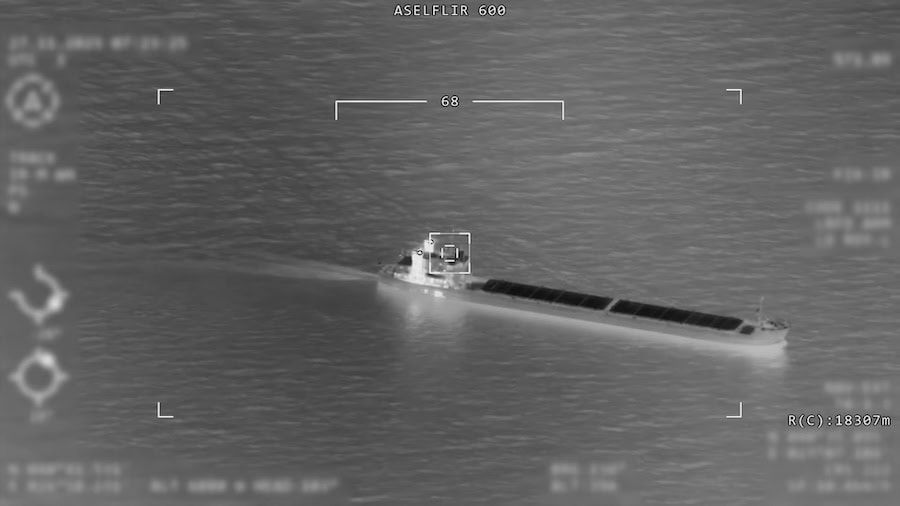

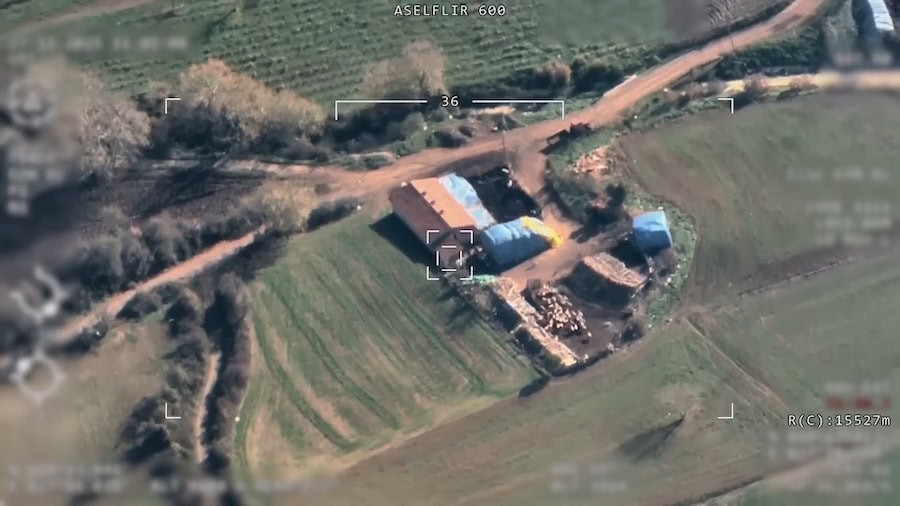

ASELFLIR 600 includes automatic target recognition, real-time target tracking, multi-target tracking and moving-target course and speed determination. Reinforced mechanical components, improved thermal performance and accurate stabilization enable operation at high altitudes and very low temperatures.
Specifications:
| Primary mirror diameter | 325 mm |
| HD MWIR | 1280 x 1024, MWIR |
| Full HD Day TV | 1920 x 1080 |
| HD SWIR | 1280 x 1024 |
| Field of regard | Azimuth 360 degrees continuous; elevation +95 degrees to -120 degrees |
| Laser range finder / designator | 1064 nm, up to 35 km, STANAG 3733 Band I and II |
| Laser pointer | NIR compatible with NVGs |
| Communication | RS-422, MIL-STD-1553B |
| Video | 4 x SMPTE-292M HD-SDI, 1920 x 1080p |
| Power | 28 VDC |
| Size | Width 655 mm; height 720 mm |
| Weight | 120 kg +10% |
| Operating temperature | -55 degrees C to +55 degrees C |
| Storage temperature | -55 degrees C to +71 degrees C |
