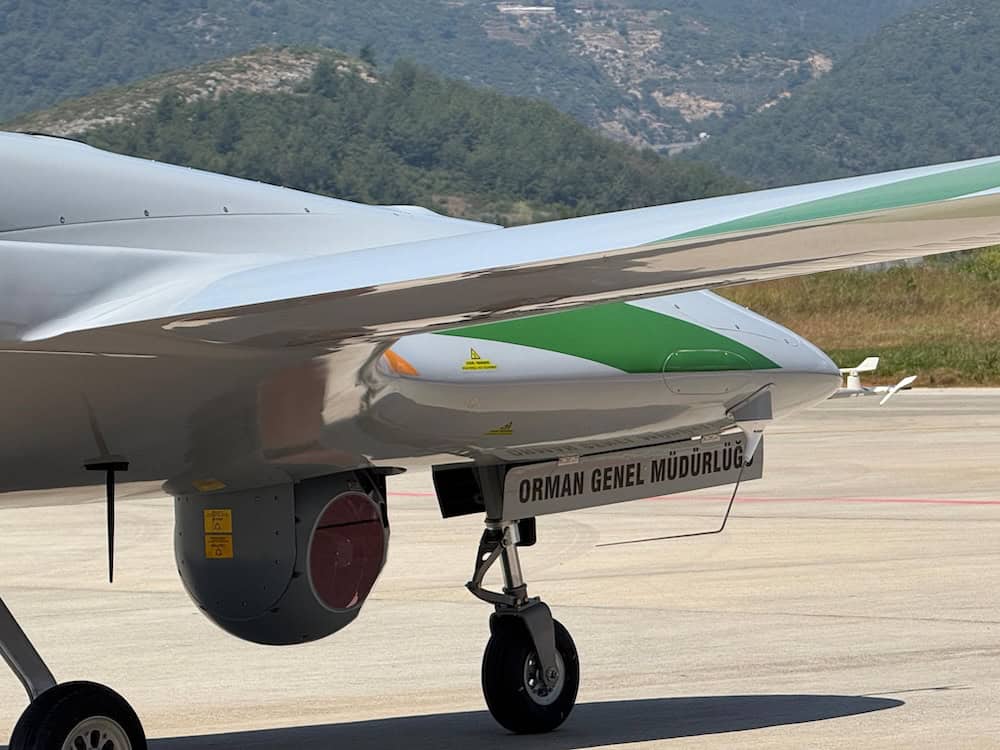

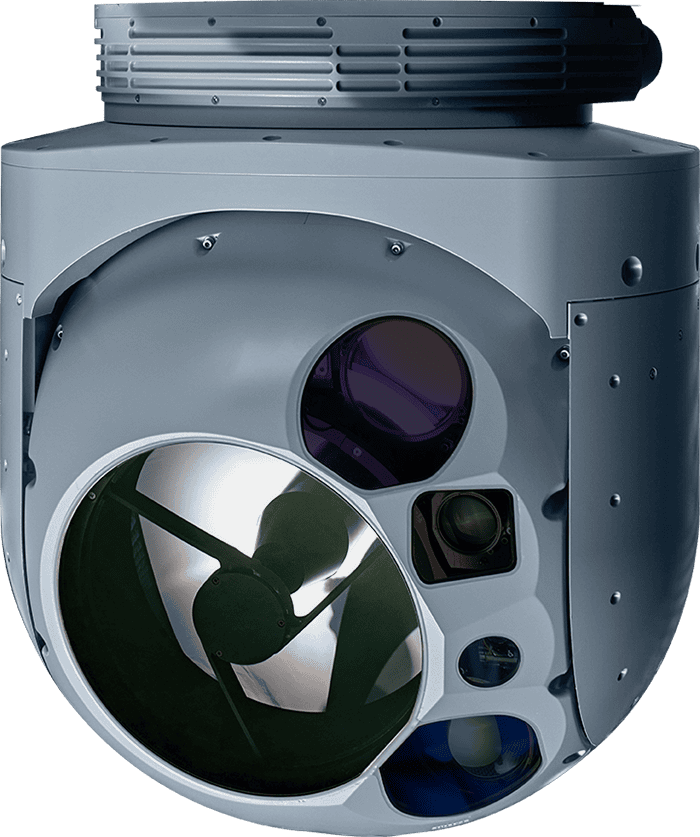

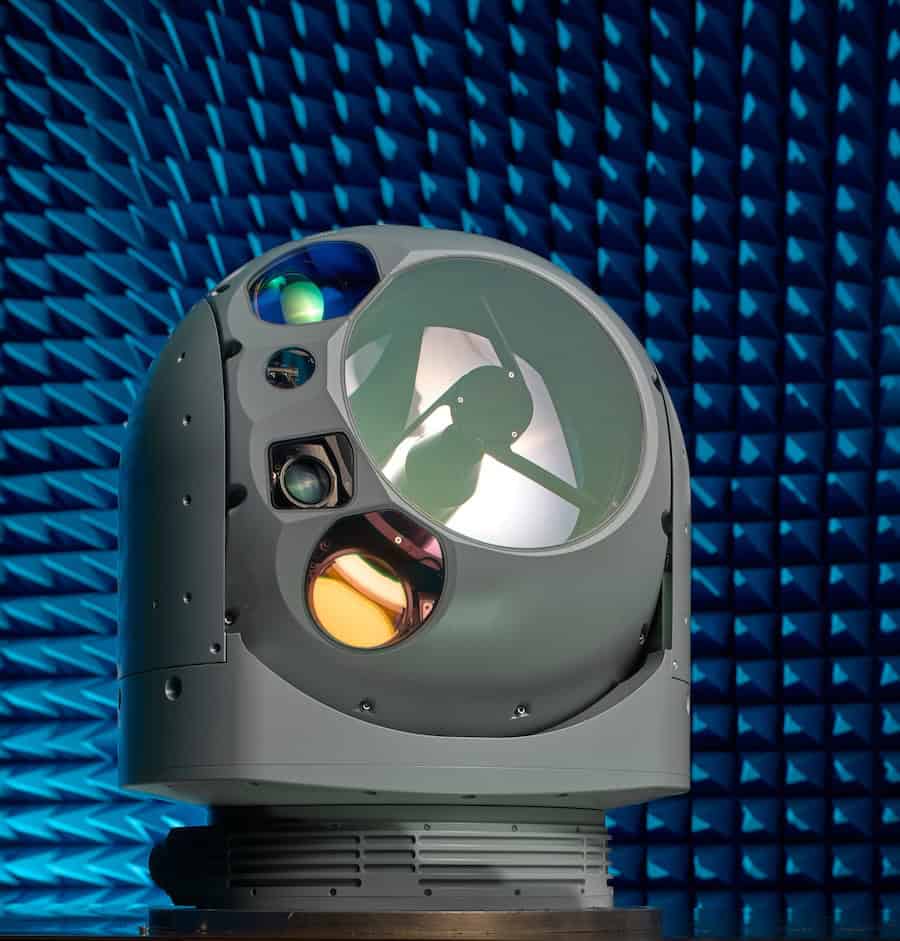

ASELFLIR 500 is a high-performance electro-optical reconnaissance, surveillance and targeting system in the 15-inch gimbal category. Developed for fixed-wing UAVs, the system combines a compact single-LRU design with a 220 mm common aperture for enhanced image quality and range performance.
The payload integrates high-resolution MWIR, daytime and SWIR cameras with laser range finding, laser target designation and laser pointer functions. Common fields of view across the main imaging channels, all-digital video processing and internal boresight help simplify operation and alignment on airborne platforms.
ASELFLIR 500 also features AI-based image processing, advanced image enhancement, multi-target tracking, simultaneous target tracking across IR, daytime and SWIR video, accurate target geolocation, and moving-target course and speed determination. Its stabilization system and low-temperature performance make it suited to high-altitude UAV missions.
Specifications:
| Primary mirror diameter | 220 mm |
| HD IR camera | 1280 x 1024, 3-5 µm MWIR |
| HD IR horizontal FOV | 1.3, 4.3, 7.7, 13.9 and 25 degrees |
| HD Day TV | 1920 x 1080 |
| HD SWIR | 1280 x 1024 |
| Field of regard | Azimuth 360 degrees continuous; elevation +90 degrees to -90 degrees |
| Laser range finder / target designator | 1064 nm, up to 35 km, STANAG 3733 Ed.3 |
| Laser pointer | 808 nm, NIR/SWIR compatible with NVGs |
| Communication | RS-422, MIL-STD-1553B |
| Video | 4 x SMPTE-292M HD-SDI, 1920 x 1080p |
| Power | 28 VDC |
| Size | Width 480 mm; height 520 mm |
| Weight | 54 kg +/-5% |
| Operating temperature | -40 degrees C to +52 degrees C |
| Storage temperature | -55 degrees C to +70 degrees C |
