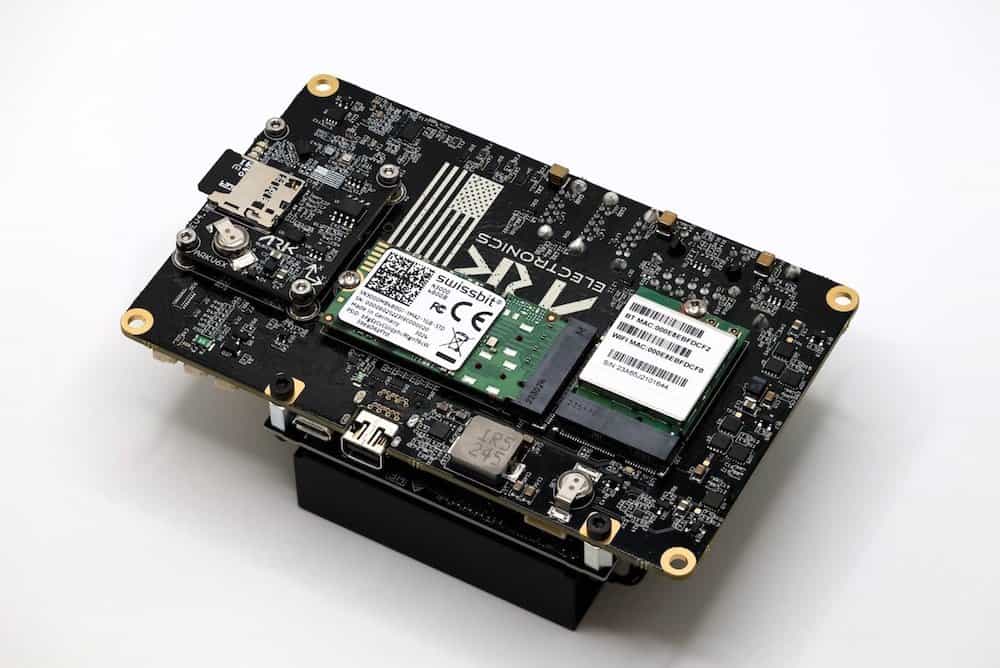

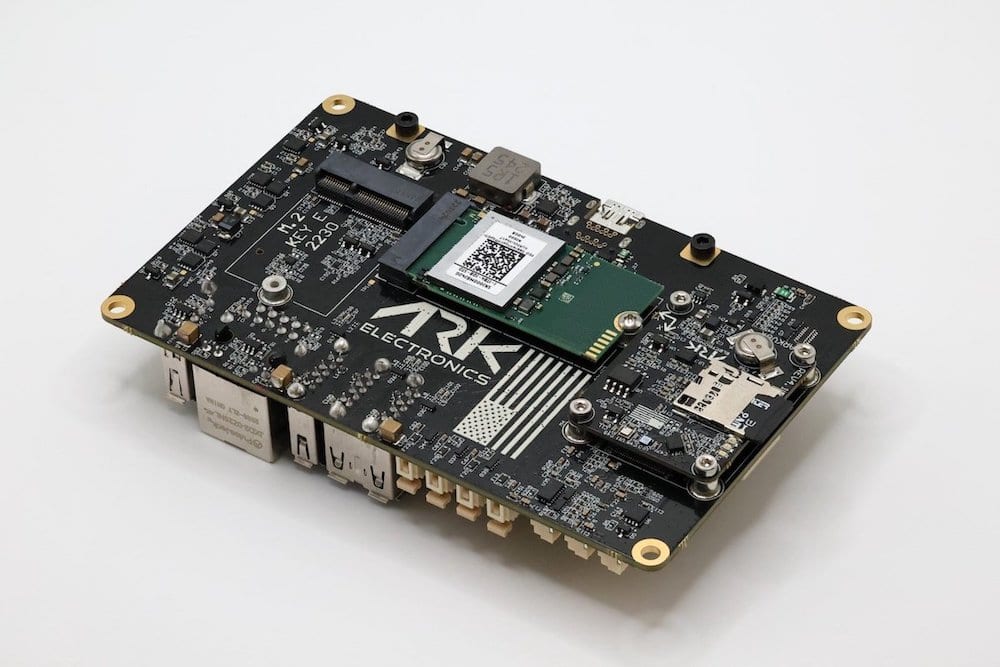

ARK Electronics’ Jetson PAB Bundles deliver a complete, production-ready hardware solution that merges flight control, onboard computing, and system integration in one compact assembly. Built around the Pixhawk Autopilot Bus (PAB) standard and NVIDIA Jetson platforms, these kits eliminate the need to source and configure multiple independent components. All bundles are pre-flashed and tested for immediate deployment and are ideal for applications requiring high-throughput processing, autonomy, and NDAA compliance.
Bundle options include:
ARK Jetson PAB Orin NX NDAA Bundle
Includes the ARK Jetson Pixhawk Autopilot Bus (PAB) Carrier, ARKV6X Flight Controller, NVIDIA Jetson Orin NX 16 GB USA Made (900-13767-0000-0A0), Swissbit SN3000MB480GI-2MA2-2GB-STD 480GB SSD, and Jetson heatsink and fan, fully NDAA-compliant and ready to operate out of the box.
ARK Jetson PAB Orin Nano 4GB NDAA Bundle
Combines the ARK Jetson PAB Carrier with ARKV6X Flight Controller, NVIDIA Jetson Orin Nano 4 GB USA Made (900-13767-0040-000), Swissbit SN2000MB240GI-1TB4-1DB-STD 240GB SSD, and Jetson heatsink and fan, pre-flashed and NDAA-compliant.
ARK Jetson PAB Orin Nano 4GB Bundle
Pre-flashed and ready-to-deploy kit featuring the ARK Jetson PAB Carrier, ARKV6X Flight Controller, NVIDIA Jetson Orin Nano 4 GB (900-13767-0040-000), Swissbit SN2000MB240GI-1TB4-1DB-STD 240GB SSD, and Jetson heatsink and fan. Optional NDAA-compliant Wi-Fi 6E + Bluetooth 5.3 M.2 module available for Remote ID support. Cables and antennas not included.
ARK Jetson PAB Orin Nano 8GB NDAA Bundle
Includes ARK Jetson PAB Carrier, ARKV6X Flight Controller, NVIDIA Jetson Orin Nano 8 GB USA Made (900-13767-0030-000), Swissbit SN2000MB240GI-1TB4-1DB-STD 240GB SSD, and Jetson heatsink and fan. NDAA-compliant and optionally expandable with a Wi-Fi 6E + Bluetooth 5.3 M.2 module supporting Remote ID over Bluetooth. Cables and antennas not included.
