Kontron Introduces High-Performance COM Express Module

By Mike Ball / 24 Apr 2018
Follow UST

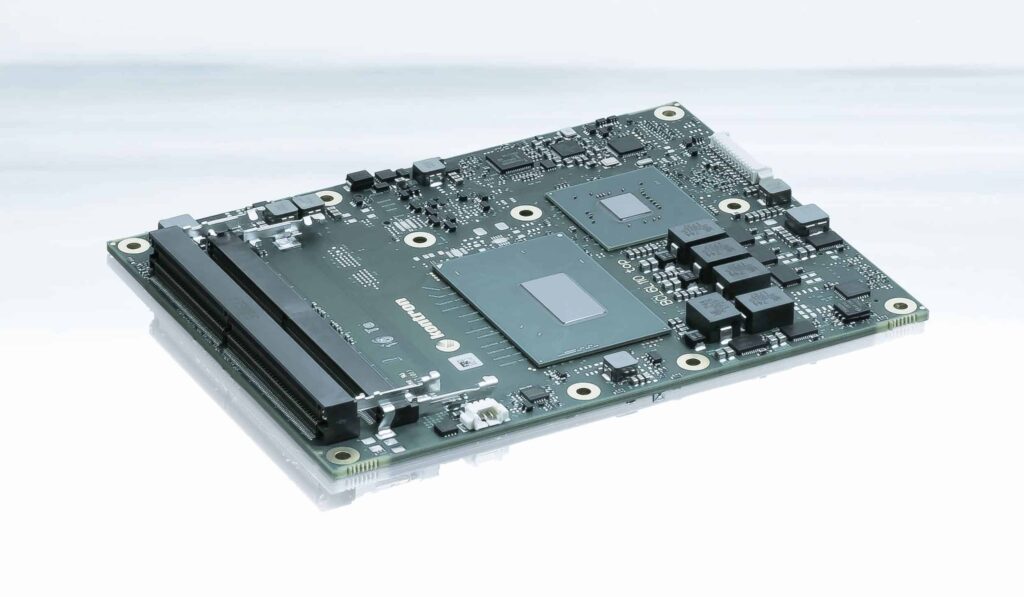

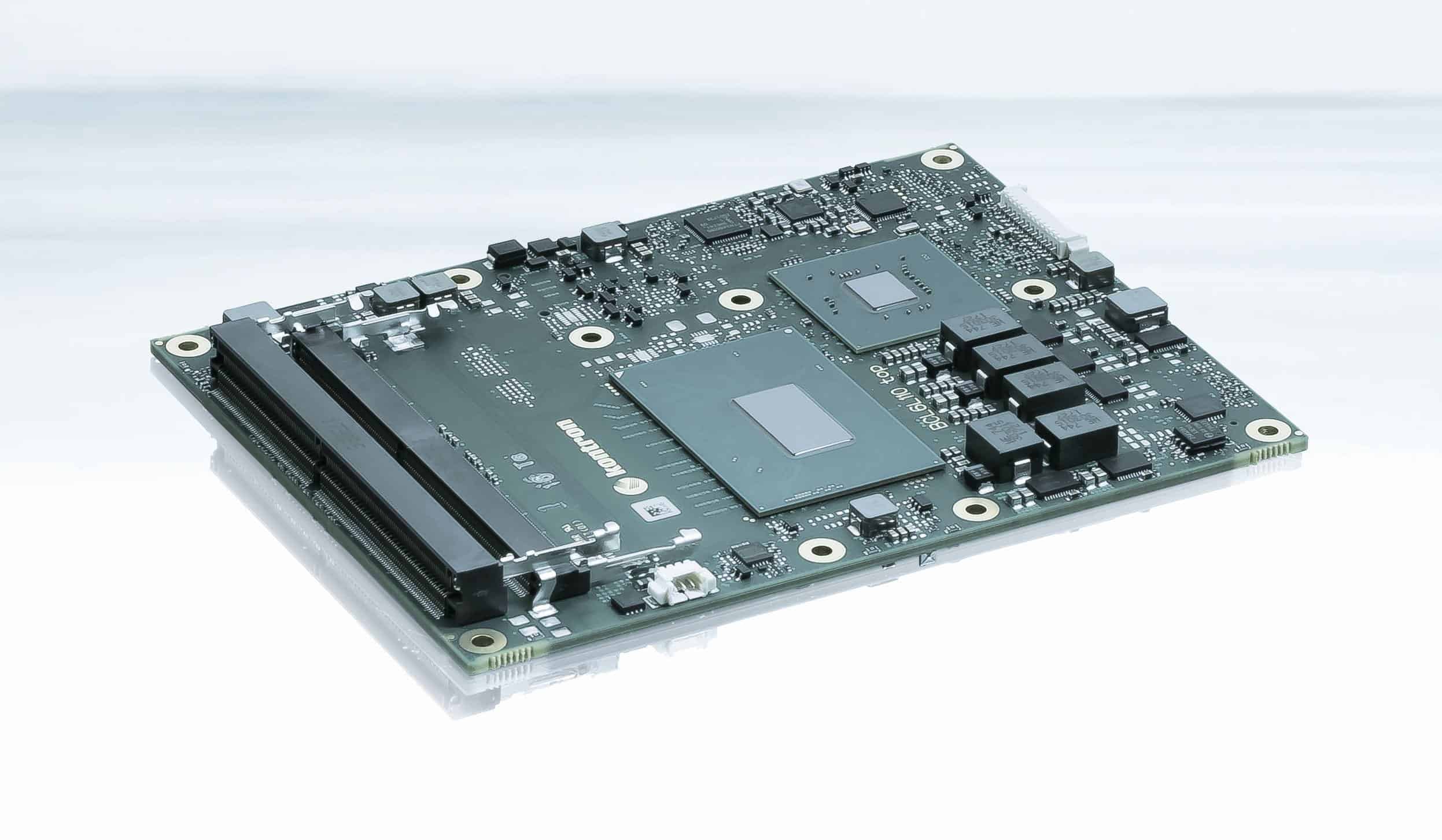

Kontron COM Express Module

Kontron, a developer of Internet of Things (IoT)/Embedded Computing Technology (ECT) solutions, has announced the new Computer-on-Module Kontron COMe-bCL6 in the COM Express basic Type 6 form factor (125×95 mm). It is based on processors of the latest 8th Gen Intel Core/ Xeon E family with a mobile chipset (CM246/QM370 PCH).

The new COM Express module is available in different processor variants, including hexacore CPU versions. All variants are available with up to 64 GB non-ECC/ECC DDR4 storage, a third and fourth slot can be equipped on demand. The new Kontron COM Express module supports the fast Intel Optane systems acceleration for quick high-capacity mass storage data transfer, as well as the fastest available storage technology NVMe SSD in a very compact design. USB 3.1. support with up to 10Gbps and USB Type C support offer twice the bandwidth as compared to USB 3.0 for fast data transfer. The COMe-bCL6 also benefits from the graphics performance of the 8th generation Intel processors. Four 4K displays can be controlled, three of them separately. UHD streaming supports high quality video applications.

Find suppliers of Embedded Computing for Unmanned Applications >

By consistently continuing slot allocation and feature implementation, the COMe-bCL6 is well suited as a high-performance successor for existing solutions. Typical areas of application for unmanned aerial vehicles (UAVs) and other unmanned systems include communications, surveillance and security. In its robust R E2S version, the COMe-bCL6 meets the particular demands of the defense and transportation sectors by offering integrated rapid shutdown, ECC storage support, and deployment in industrial temperature ranges from -40°C to +85°C.

Additionally, the new COMe-bCL6 supports the Kontron APPROTECT Security Solution. Based on an integrated Wibu-Systems security chip and in tandem with a specifically developed software framework, it provides IP and copy/reverse engineering protection. Kontron APPROTECT Licensing also enables new business models such as “pay per use”, demo versions for limited time periods, or activation/deactivation functions.

The COMe-bCL6 module is available in these processor variants:

  • Intel Xeon E-2176M, 6x 2.7 GHz (4.4 GHz), GT2, 45/35 W
  • Intel Core i7-8850H, 6x 2.6 GHz (4.3 GHz), GT2, 45/35 W
  • Intel Core i5-8400H, 4x 2.5 GHz (4.2 GHz), GT2, 45/35 W
