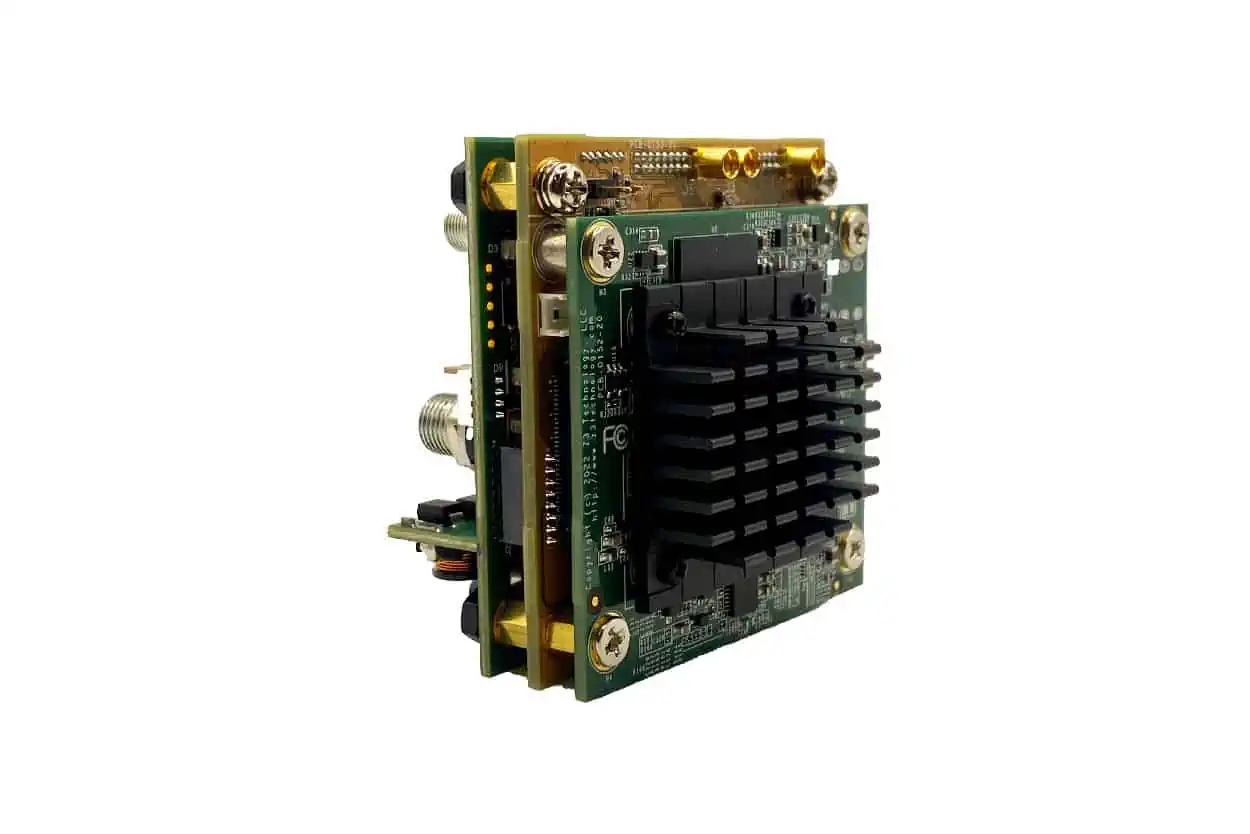

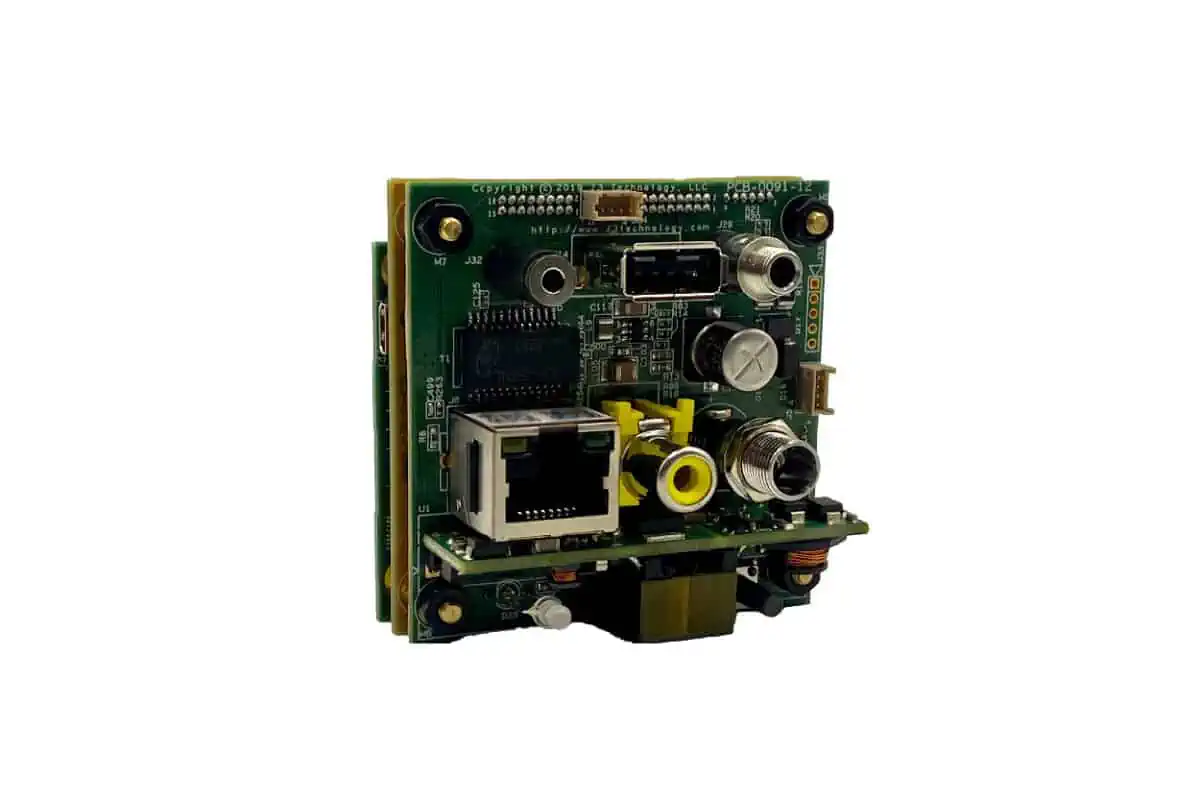

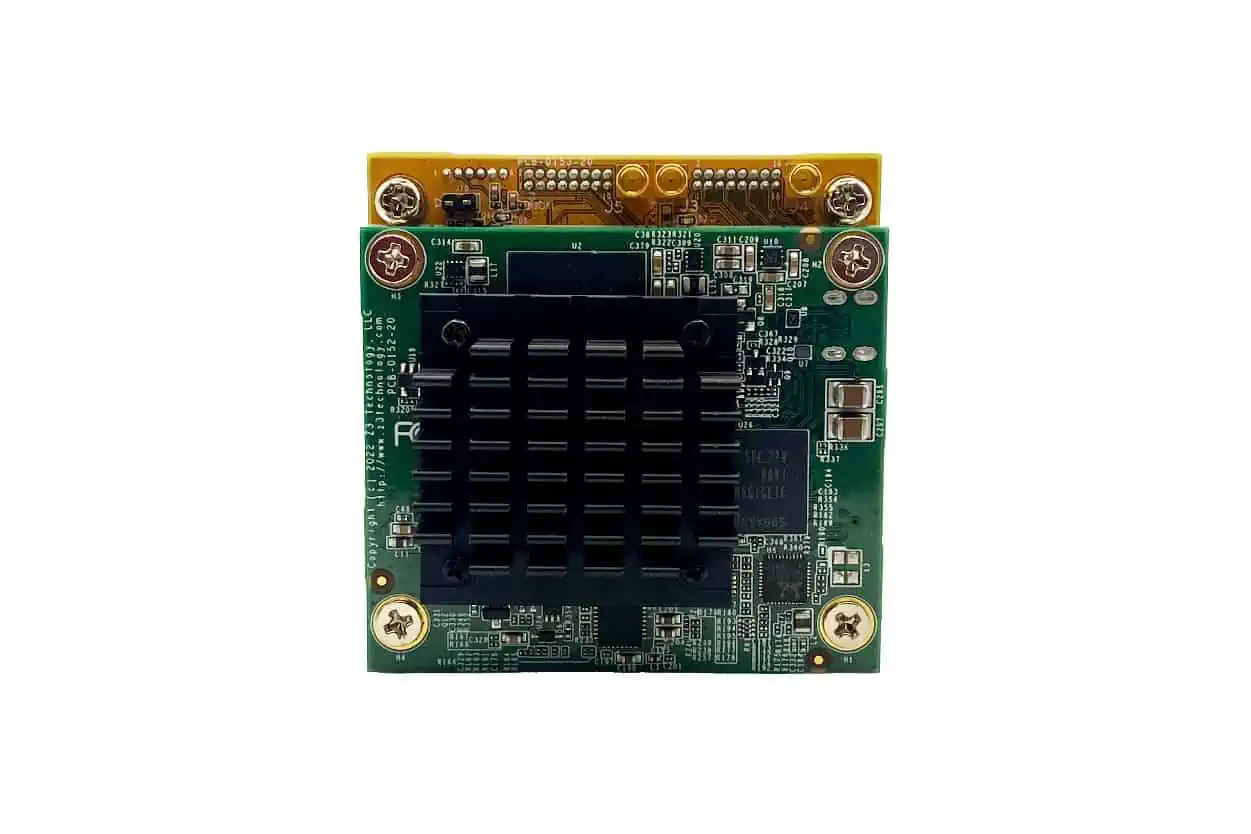

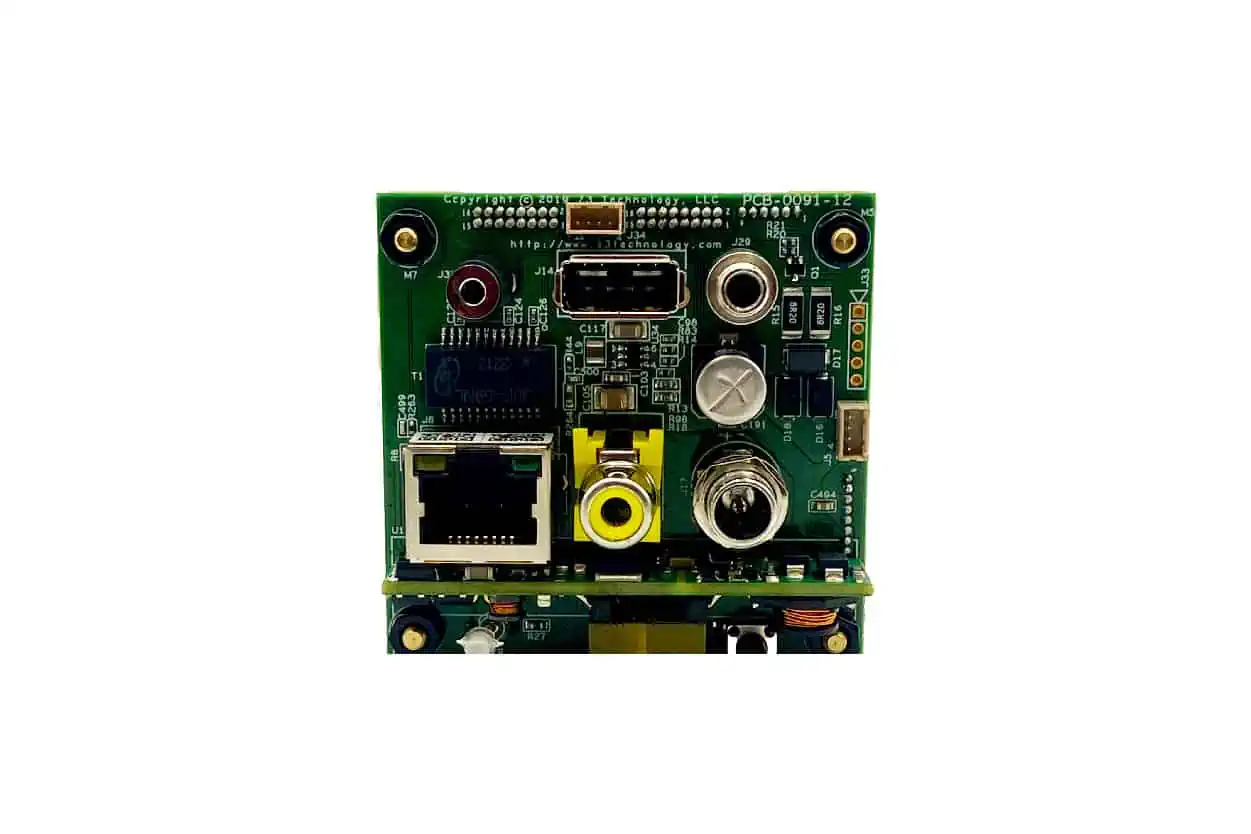

FSDI-13A Dual Camera Full 3G-SDI Encoder
Z3 Technology’s FSDI-13A is an AI-capable low latency dual Camera Encoder that supports SDI and IR Cameras.
Designed for dual camera inspection, surveillance, industrial applications and unmanned systems, the flexibility of the FSDI-13A allows for a visible camera and an infrared camera.
Capable of encoding and streaming H.264 and H.265 video, the encoder can be configured to stream over IP and simultaneously record to USB, micro SD card, or NFS.
Specifications| Codecs | H.264 H.265 |
| Resolutions | Up to 1080p60 |
| Encoder Board Size | 58 x 58 x 46 mm (2.28 x 2.28 x 1.81 in) |
| Encoder Board Weight | 79g (heat pipe is an additional 10g) |
| Power Consumption | 4.5W typical while encoding 2 cameras in H.265 Video |
