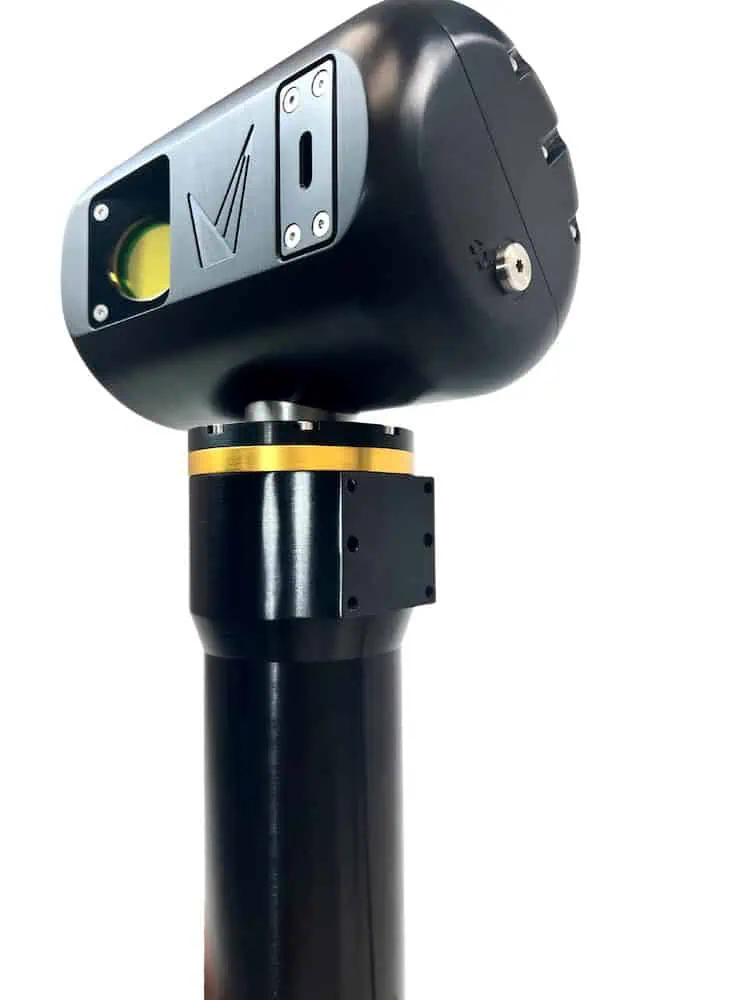

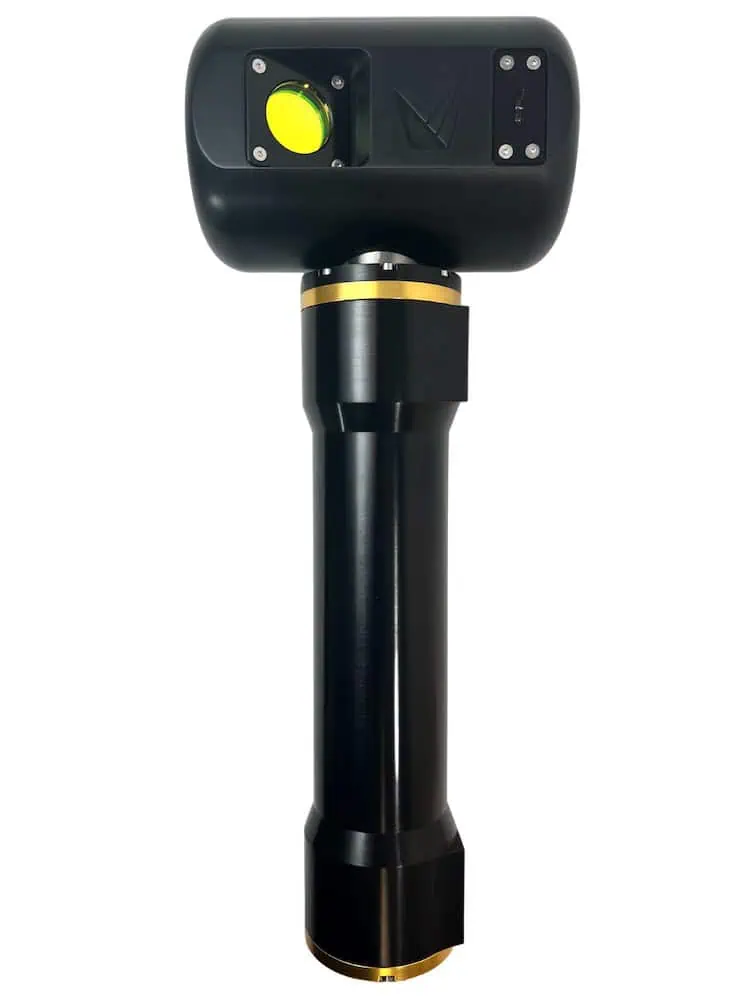

The Insight Nano from Voyis is a compact underwater laser scanner engineered for high-resolution 3D modeling of short- to mid-range targets in space-constrained scenarios. Utilizing a precision-integrated actuator, it delivers sub-millimeter point cloud resolution in both lateral and longitudinal axes, making it ideal for pipeline inspections, structural assessments, and robotic manipulators.
Operating effectively in both air and aquatic conditions due to factory-calibrated index correction, it offers versatility for inspection platforms such as pipe crawlers and flume tanks.
With a depth rating of 1000 meters, the Insight Nano performs continuous 360° scanning without the need for external sensors. It outputs real-time, high-density 3D data using the ViewLS software suite, supporting .XYZ and LAS formats.
The system’s high-speed scanning mode enables advanced defect and corrosion detection at superior detail levels compared to traditional survey methods. Engineered for rugged field integration, it ensures accurate and non-intrusive inspections for critical subsea and structural applications.
| Scan Range: | 0.13m - 1m or 0.36m - 2.5m |
| Profile Rate: | 35Hz |
| Points Per Line: | 2064 |
| Laser: |
WARNING - LASER RADIATION AVOID DIRECT EYE EXPOSURE Class 3R Laser Product 450nm or 520nm, <15mW, 1mSec to CW |
| Data Format: | .XYZ (CSV), LAS Publishing |
| Depth Rating: | 1000m |
| Data Acquisition: | Real-time processing | ViewLS Software | C++ API | Factory Calibrated |
