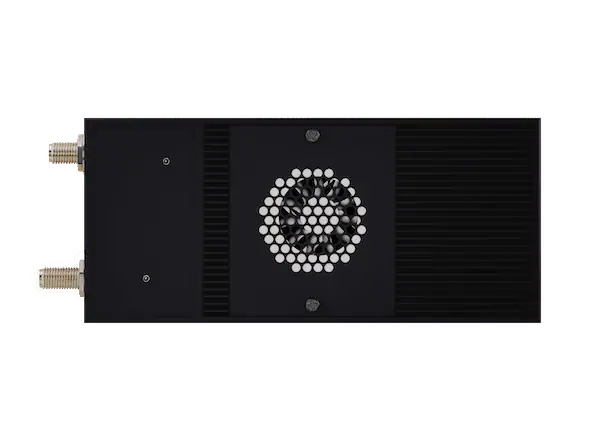

The FireBird™ F-100 is a compact video encoder designed for real-time video transmission using cellular, satellite, or mesh networks. It integrates a 4G modem with GPS, low-bandwidth video compression, and support for simultaneous streams. It’s purpose-built for video monitoring, drones, UAVs and USVs, which require fast setup, high mobility, and connectivity even in low-bandwidth and congested environments.
The device comes pre-installed with FireLight™, our bandwidth efficient video encoding software, providing reliable and low-latency streaming that adapts dynamically to changing network conditions. Encoding can be performed at bitrates as little as 1 kbps while maintaining usable image quality to high resolution, up to 30fps full HD.
Our unique Total Recall™ feature can retrieve high-resolution pixels from selected areas of interest within the low-resolution stream. This capability is built for operations where detail, clarity, and key information validation are non-negotiable.
Specifications:
| Dimensions (L x W x D): | 105 x 47 x 25 mm |
| Weight: | 0.2 kg |
| Power Consumption: | 8.5W @ 12 VDC (fan off) |
| Camera Inputs: | 1 ethernet, 1 USB-C (ethernet adapter compatible), up to 4 with switch |
| Stream Outputs: | 1 - 4 simultaneous stream output options at full HD |
| Encoding: | 1kbps low-res to 3Mbps high-res 1080p 30fps transcoded or unlimited Native mode |
| Interfaces & Connectors: |
1x RJ45 1x USB-C for storage or ethernet adapter for camera connection Micro SD card slot (up to 1Tb) or external storage 4G LTE cellular modem w/GPS Micro SIM Push-Push slot 2x SMA Female – LTE Main and GPS (LTE Aux optional to replace GPS) |
