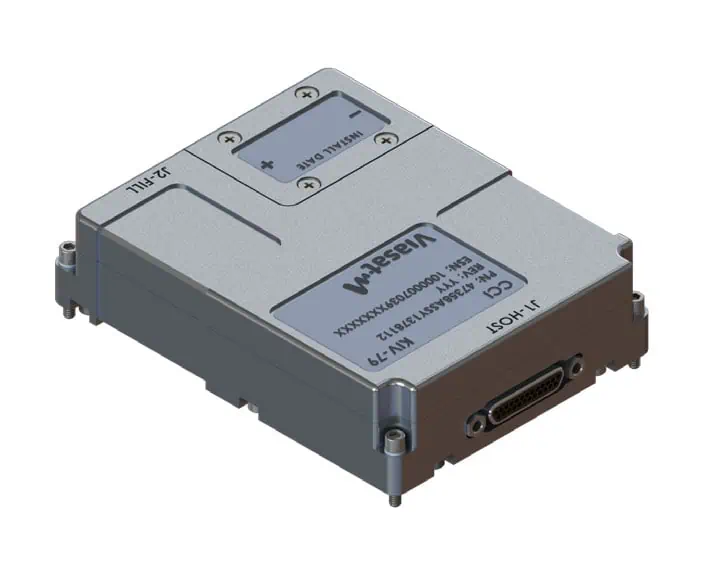

KIV-79 IFF Mode 5 Crypto Appliqué Module
The KIV-79 is a low-SWaP (size, weight and power) crypto appliqué module that provides NSA-certified cryptographic capabilities for Mark XIIA Identification Friend or Foe (IFF) Mode 5 transponders. The compact NSA Type 1 product is designed for Secret and below interrogator and transponder functions, and is ideal for a wide range of UAV platforms.
The rugged MIL-STD-810G-rated module is fully programmable and software-upgradeable, and features a field-replaceable battery that offers a lifetime of over 7 years.
Specifications:
| Dimensions (W x D x H) | 2.5 x 3.2 x0.8” |
| Weight | 6.3 oz (176g) |
| Power | 3.1 – 5.25 VDC, 2.5W typical |
| Interfaces |
Single 25 pin Micro-D for Transponder connection AIMS 04-900A interface compatible Single 9 Pin Micro-D for Key Fill Adapter cable required for SKL connection |
| Performance |
Over 500 transactions per second Key Storage Capacity 1000+ |
| Max Altitude | 10,000 ft above sea level |
