Sector Antennas

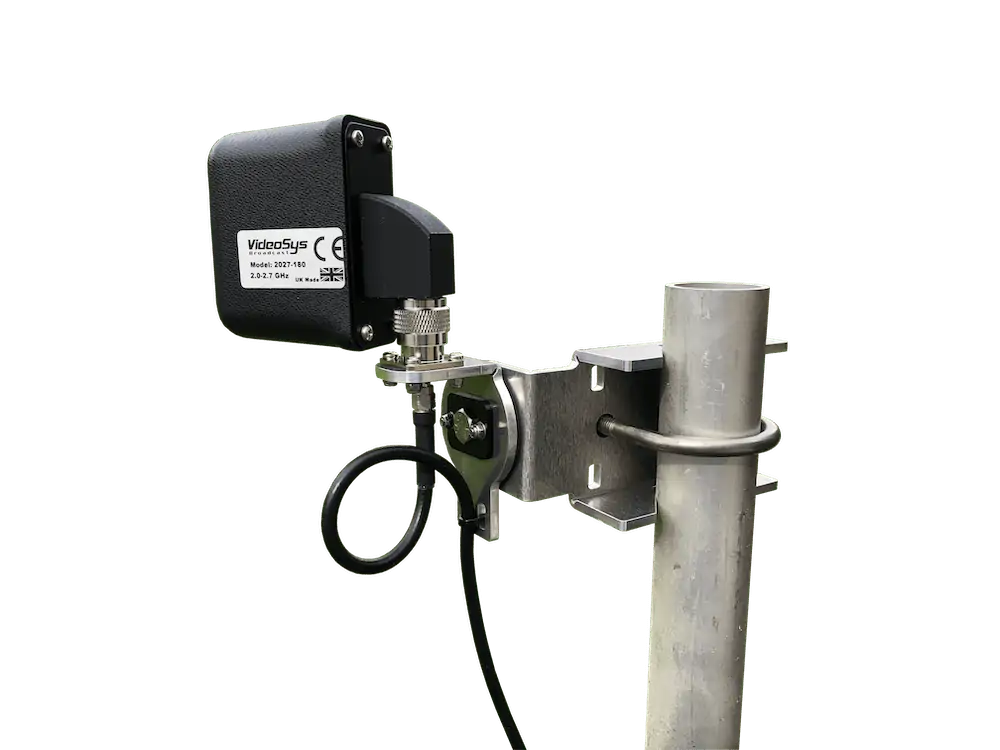

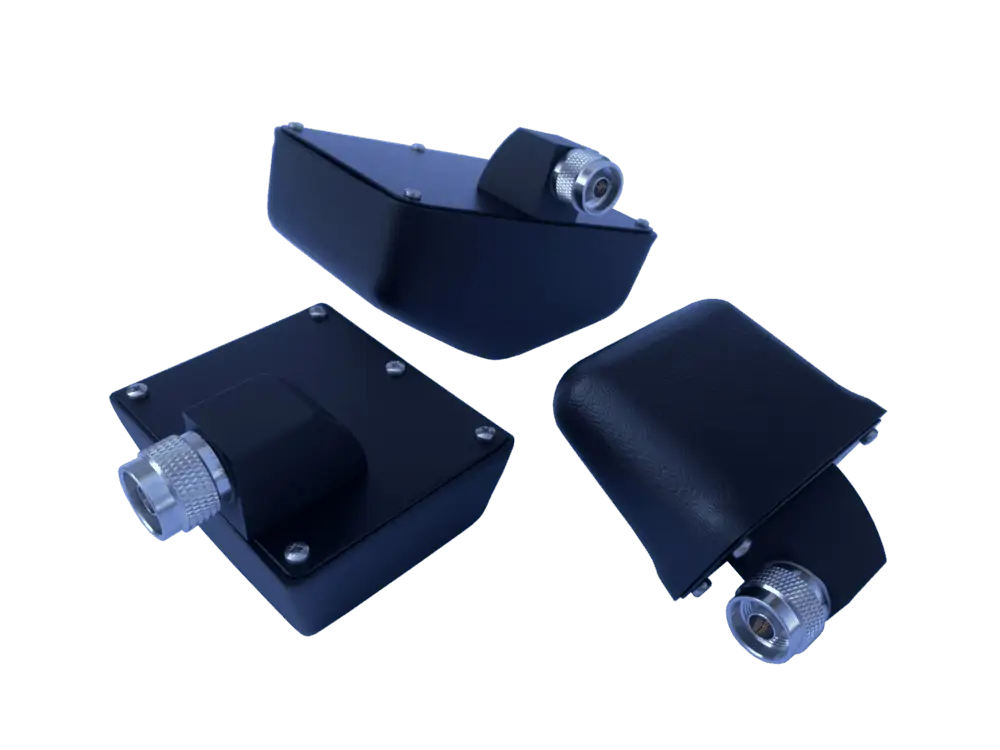

Our sector antennas feature a rugged brass-plate construction and are hand-assembled and tuned to ensure the utmost in quality. Available in 80 or 180-degree sector patterns, they are ideal for COFDM, mesh and cellular communications requiring isolation and directivity.

180-degree 80-degree
Dimensions (W x H x D) 50 x 86 x 80 mm 135 x 100 x 60 mm
Weight 70 g 70 g
Frequency Bands 2.0-2.7 GHz
2.7–2.9 GHz
3.0-3.7 GHz
4.4-5.0 GHz
1.3-1.5 GHz
2.0-2.7 GHz
2.7–2.9 GHz
3.0-3.7 GHz
4.4-5.9 GHz
6.0-7.5 GHz
Gain +6 dBi +9 dBi
Polarization Horizontal/Vertical Horizontal/Vertical
VSWR < 1.3:1 < 1.3:1
Input Impedance 50 ohms 50 ohms
