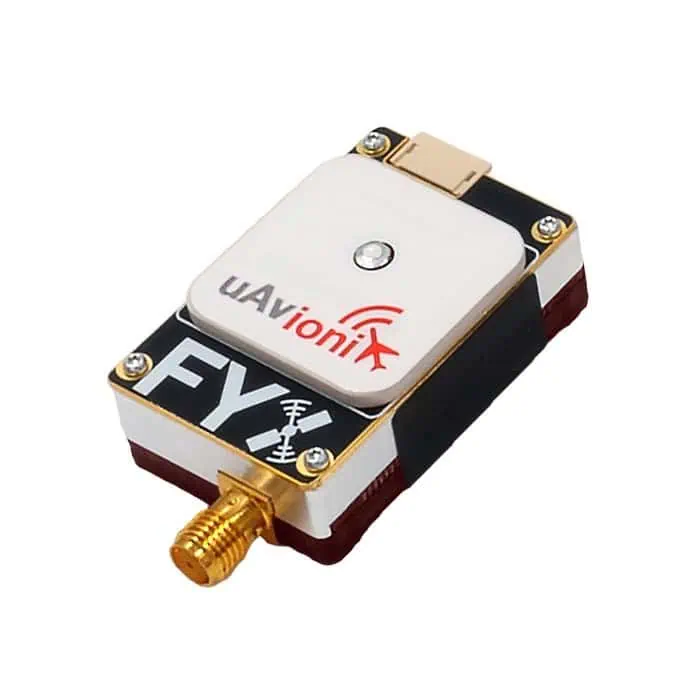

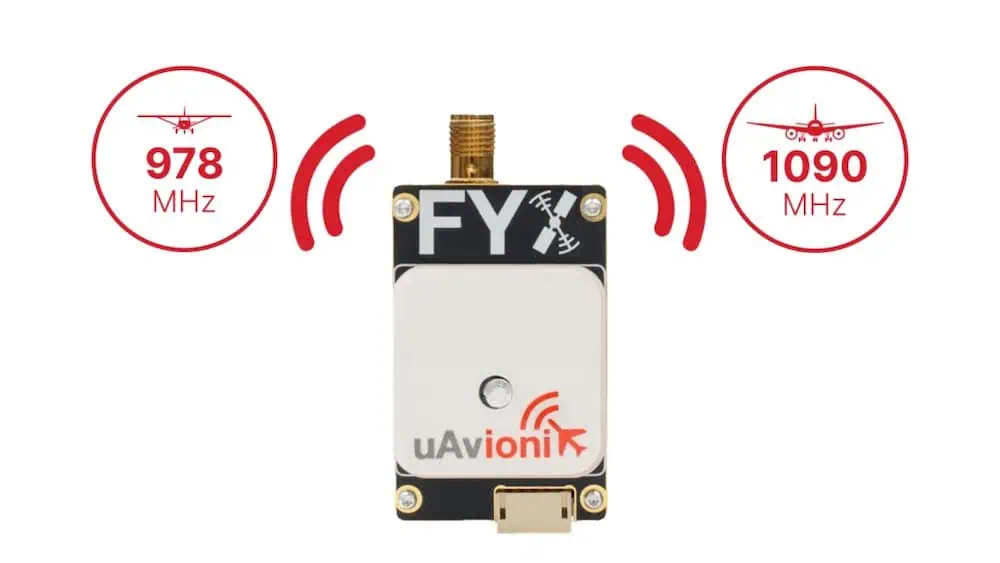

The ping2020i from uAvionix is a compact, dual-band ADS-B transceiver engineered to enhance safety and airspace awareness for uncrewed aircraft. Capable of simultaneously receiving on 1090MHz and 978MHz, it provides real-time detection of nearby ADS-B equipped aircraft within a 100-mile range.

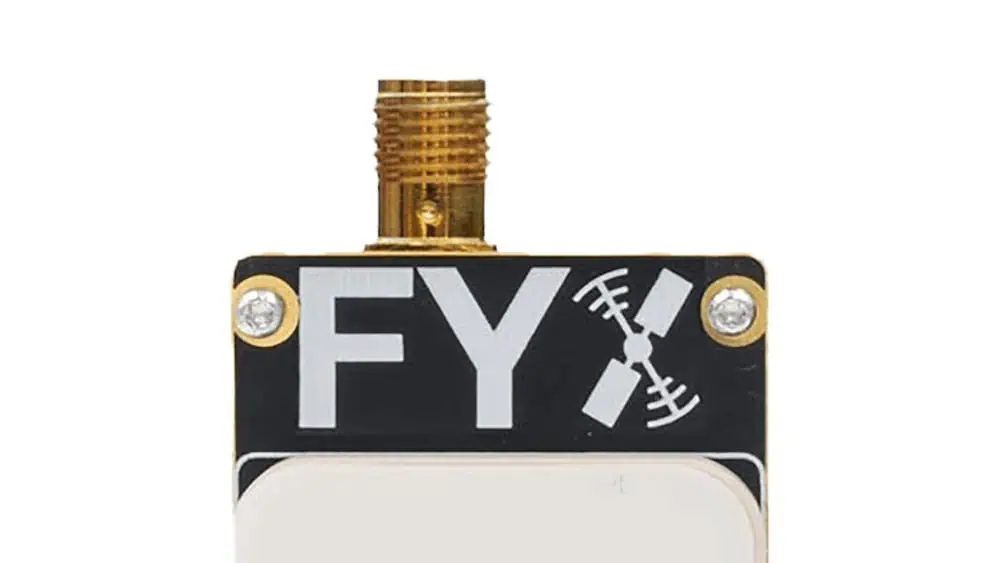

With an integrated WAAS-enabled GPS and high-precision barometric sensor, the unit supports precise geolocation and altitude data critical for safe operation in the National Airspace System (NAS). Its low-SWaP profile of 26 grams makes it ideal for UAS with strict payload constraints.
Featuring robust environmental resilience and fault-detection protections, the ping2020i ensures mission continuity even in complex, congested environments. Its battery-backed GPS delivers rapid acquisition, while the high-dynamic range receiver maintains signal fidelity during high-density operations.
Fully compliant with FAA MOPS standards DO-282B Class A1S and DO-260B Class A0, the device also supports GDL 90 protocol for seamless integration with ground control systems. HALT and HASS testing further reinforce its readiness for demanding defense and commercial UAS missions.
Specifications:
| Input Power: |
11-28V 500mW average 30W peak (400us) |
| Size: | 25 x 40 x 16 mm |
| Weight: | 26 g |
| SIL/SDA: | 1/1 |
| Operating Temperature: | -45 to 70°C |
