ViuTracker
ViuTracker auto-tracking antenna systems ensure stable and reliable communications links for UAVs and unmanned systems operating in highly dynamic environments. The lightweight units feature yaw and pitch stability enhancement, providing precise alignment and real-time tracking both horizontally and vertically, and are compatible with a wide variety of drone flight controllers.
The systems are IP65 or IP66-rated for all-weather operation and can withstand temperatures from -25 up to +55oC.

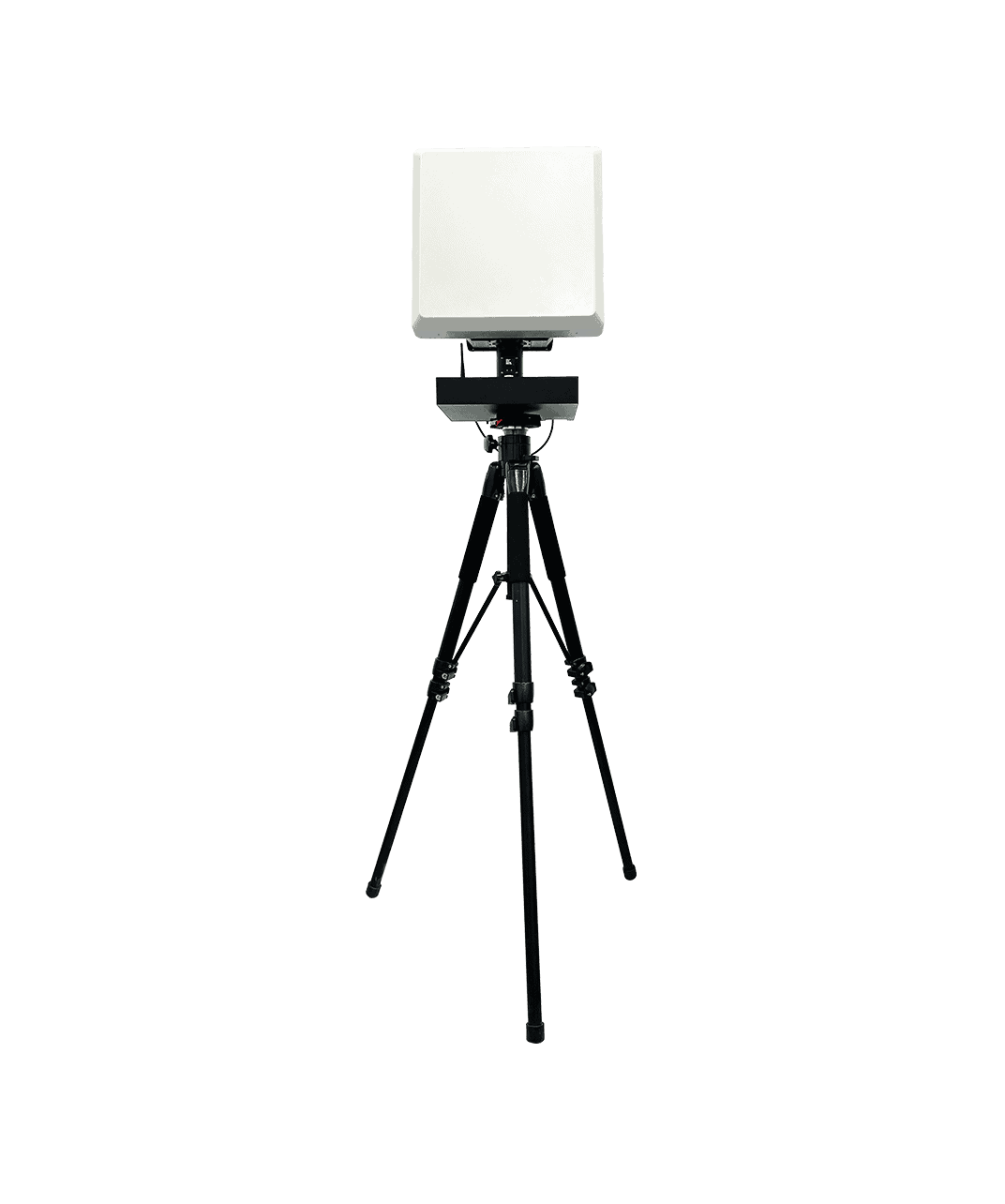

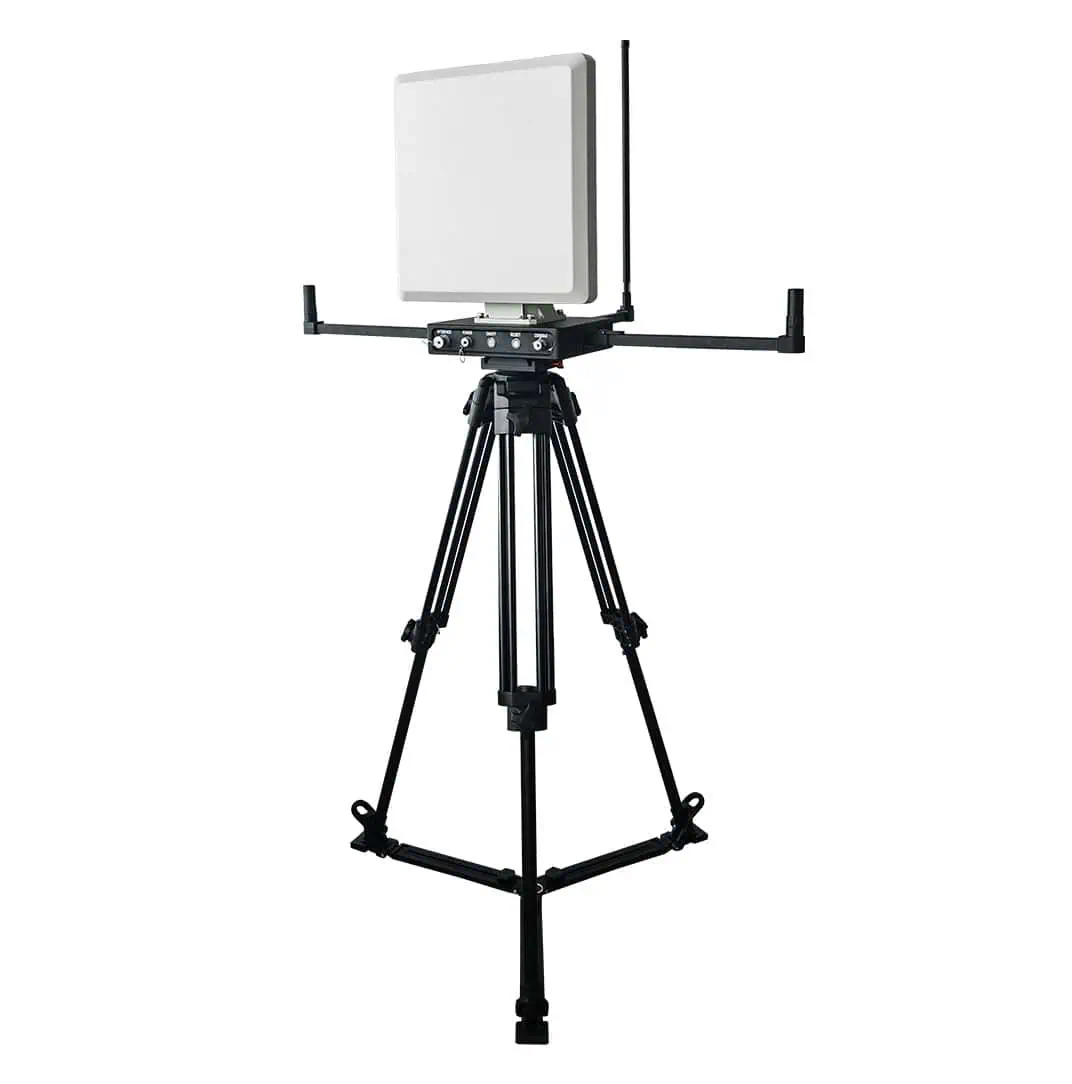

| ViuTracker G1 | ViuTracker G2 | |
| Weight: | 2.6 kg | 6 kg |
| Power: | 12 – 15 VDC 15W average | 24 VDC 20W average |
| Yaw stability enhancement accuracy: | <0.5° | ±0.1° |
| Pitch stability enhancement accuracy: | <0.1° | ±0.1° |
| Yaw rotation range: | Unlimited/450° | |
| Pitch rotation range: | -15 - 135° | 0 - 90° |
| Maximum rate: | Horizontal 300°/s Vertical 60°/s | Horizontal 35°/s Vertical 25°/s |
