Rayfin Rapid Digital Imaging System

The Rayfin Rapid Digital Imaging system is a cutting-edge solution for capturing 1080p and 4K video as well as high-resolution digital still images, providing revolutionary capabilities for a wide range of undersea applications such as inspection, survey and marine research.

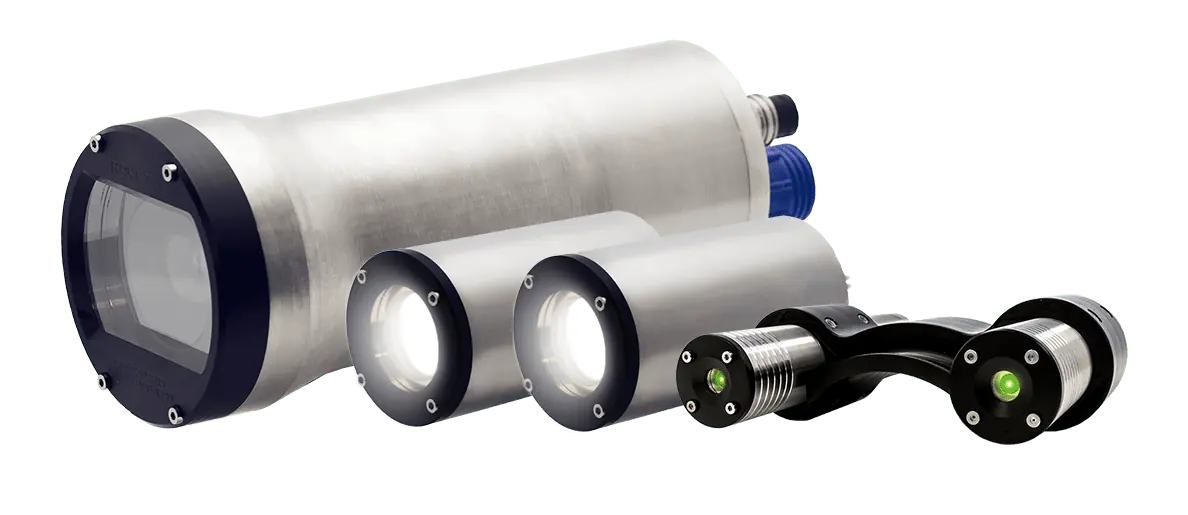

Featuring a 12.3 MP sensor with the equivalent of 5x optical zoom, the system uses built-in image correction to ensure high sharpness and low distortion, delivering superior imaging capabilities even under low light conditions. It can be provided as a standalone camera unit, or with optional LEDs and lasers for enhanced lighting and visual reference.

Viewing and control take place in real time via RTSP Ethernet, and data can be saved to the internet 512GB solid-state memory or to NAS storage. The system features an open API and is compatible with 3D modelling software such as ROV3D.

Specifications:

Depth Rating 6000 m
Water Temperature Rating -10 to +30˚C
Voltage 18 – 32 VDC
Power Camera 7 – 13.5W
LEDs 48W each
Laser 3W
Camera 12.3MP CMOS 12-bit
Max exposure - shutter speed 1/65000, ISO 3200
Lens 4.52mm f/2.0
Focus range 15cm to infinity
Aquorea White Beam LED Up to 15000 lumens (32000 lumens strobe)
80˚ (circular) beam angle
Laser Options MantaRay Parallel Lasers - parallel dots
Skate Line Laser - 53.6˚ line
Skate Grid Laser - 17.1˚ 10 x 10 dot grid
