Rayfin Mk2 Coastal 500m camera

The Rayfin Mk2 Coastal camera is a cost-effective solution for real-time underwater viewing and recording. It is ideal for ROV surveys, environmental monitoring, aquaculture, and more.

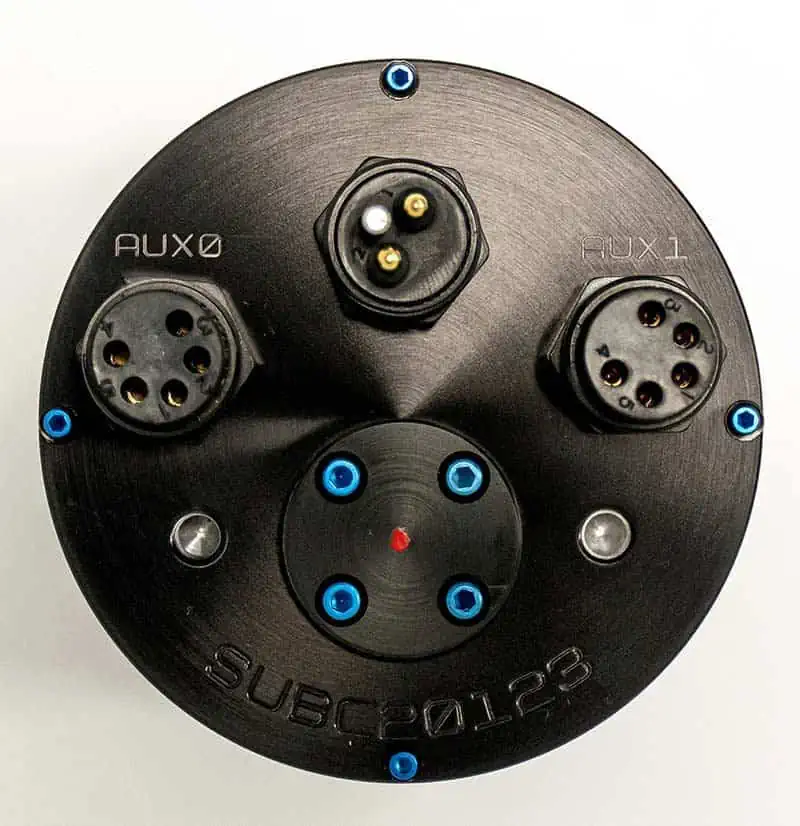

The camera is equipped with scratch-resistant high-quality optics and a built-in datalogger that can store hours of video and thousands of still images. Auxiliary ports allow you to easily connect peripherals such as lights, lasers, and other sensors to further enhance the quality of your footage.

The Rayfin Mk2 Coastal camera is available in two different models:

  • Rayfin BPC – provides power for camera, two LEDs, lasers and other sensors, as well as transmission of live HD and video, over two wires
  • Rayfin ETP – utilizes Ethernet over twisted pair technology to upgrade ROVs with live water-corrected HD IP video and data

Specifications:

Rayfin BPC Rayfin ETP

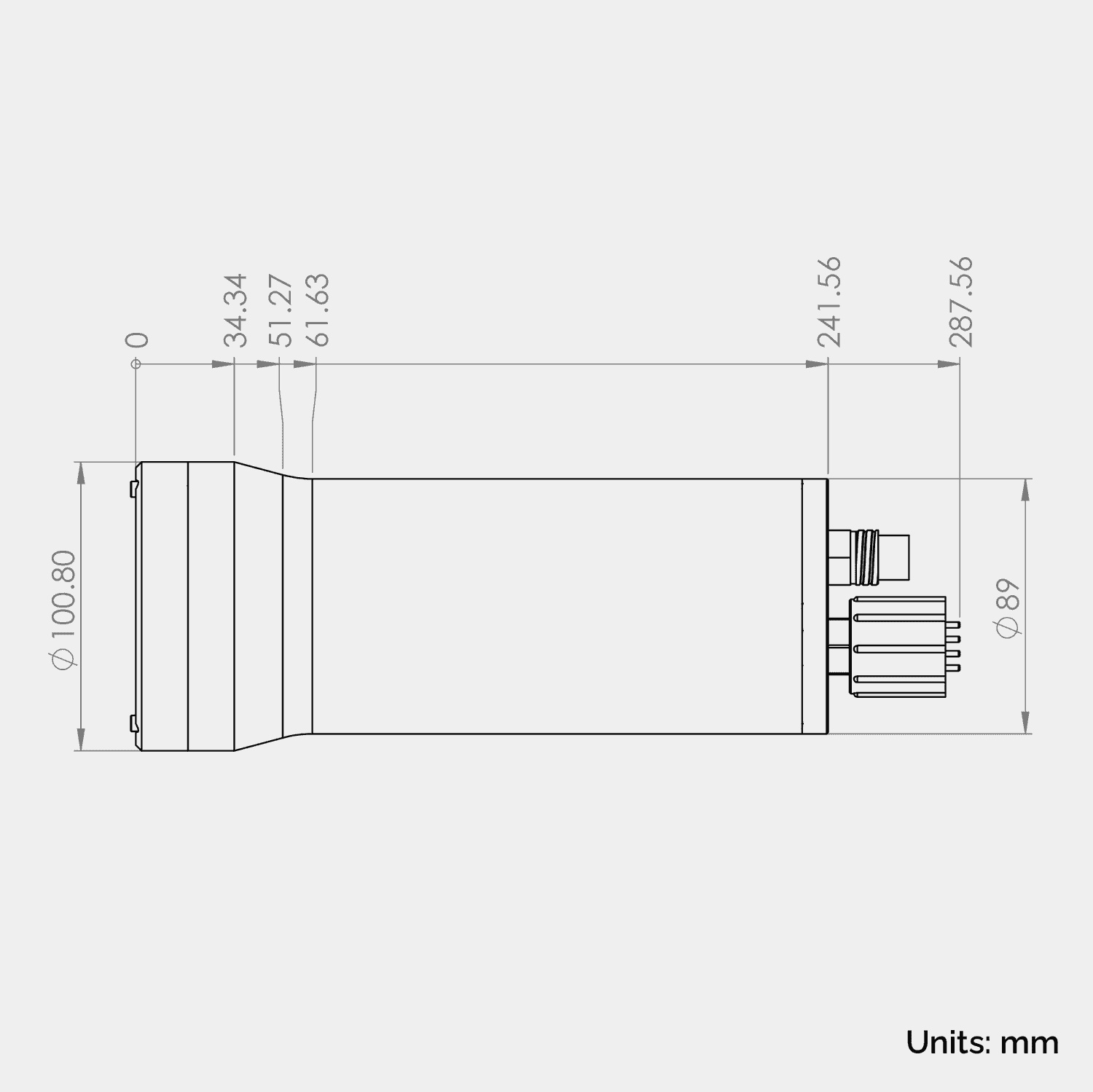

Dimensions Length: 241.56mm, Front Ø: 101mm, Back Ø: 89mm Length: 241.56mm, Front Ø: 101mm, Back Ø: 89mm
Weight 0.8kg in water, 2.4kg in air 0.75kg in water, 2.2kg in air
Voltage 40-78 Vdc 18-32 Vdc
Power 11W (idle), 12.4W (recording), 18.4W (peak) 7W (idle), 8W (recording), 13.5W (peak)
Depth Rating 500m 500m
In-Water Operating Temperature -20 to +30˚C -20 to +30˚C
Sensor Exmor RS 12.3MP CMOS 12-bit, 4056 x 3040
Max exposure - shutter speed 1/65000, ISO 3200
Lens 4.52mm f/2.0
Focus range 15cm to infinity
Exmor RS 12.3MP CMOS 12-bit, 4056 x 3040
Max exposure - shutter speed 1/65000, ISO 3200
Lens 4.52mm f/2.0
Focus range 15cm to infinity
