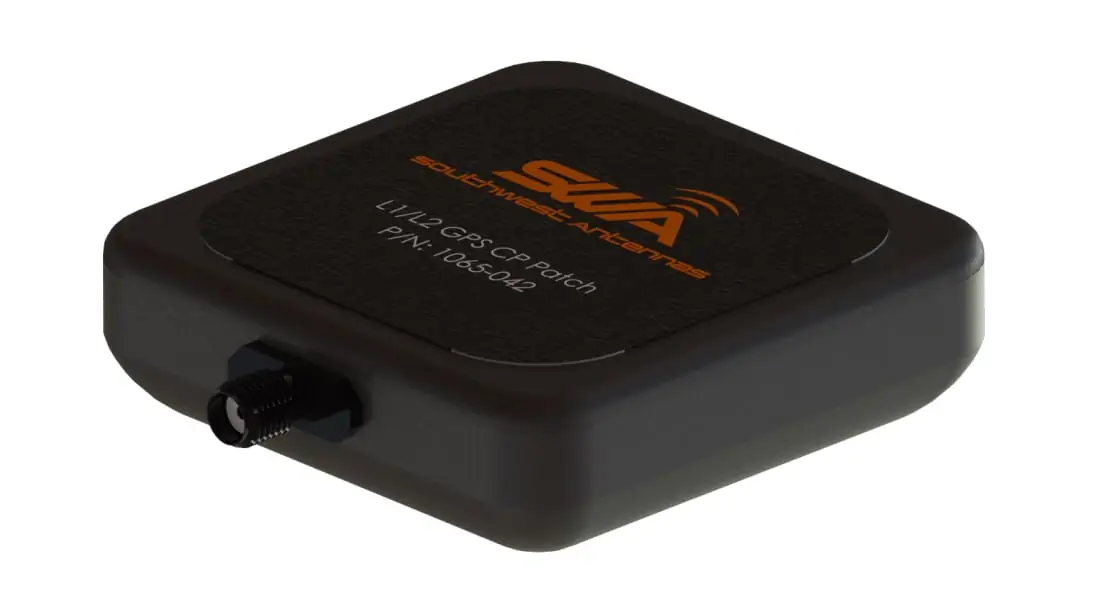

This Non-ITAR GPS & GLONASS Active L1/L2 patch antenna is ideal for commercial, industrial and military UAVs and unmanned systems requiring extremely accurate PNT (position, timing, and navigation). Featuring a built-in LNA (low-noise amplifier) and filtering, it provides high performance and excellent gain and out-of-band rejection even in contested and congested RF environments.
The low-profile radome gives the antenna a minimal footprint, and the custom black chrome SMA(f) RF connector provides waterproofing and allows users to mount away from the receiver in case of poor GNSS reception. An innovative magnetic mount, recessed into the bottom of the radome, provides quick securing to and removal from any ferromagnetic surface.
Specifications:
Dimensions (L x W x H) | 60.96 x 60.96 x 19.56 mm (2.4 x 2.4 x 0.77 in) |
Weight | 113.4 g (4.0 oz) |
Frequency Range 1 | 1.217 – 1.238 GHz |
Frequency Range 2 | 1.565 – 1.586 GHz |
Impedance | 50 ohms |
Maximum Gain | 3.4 dBic |
Horizontal Beamwidth | 360° |
Vertical Beamwidth | 100° L1, 120° L2 |
