2227 Tactical-Grade Inertial Navigation MEMS DC Accelerometer

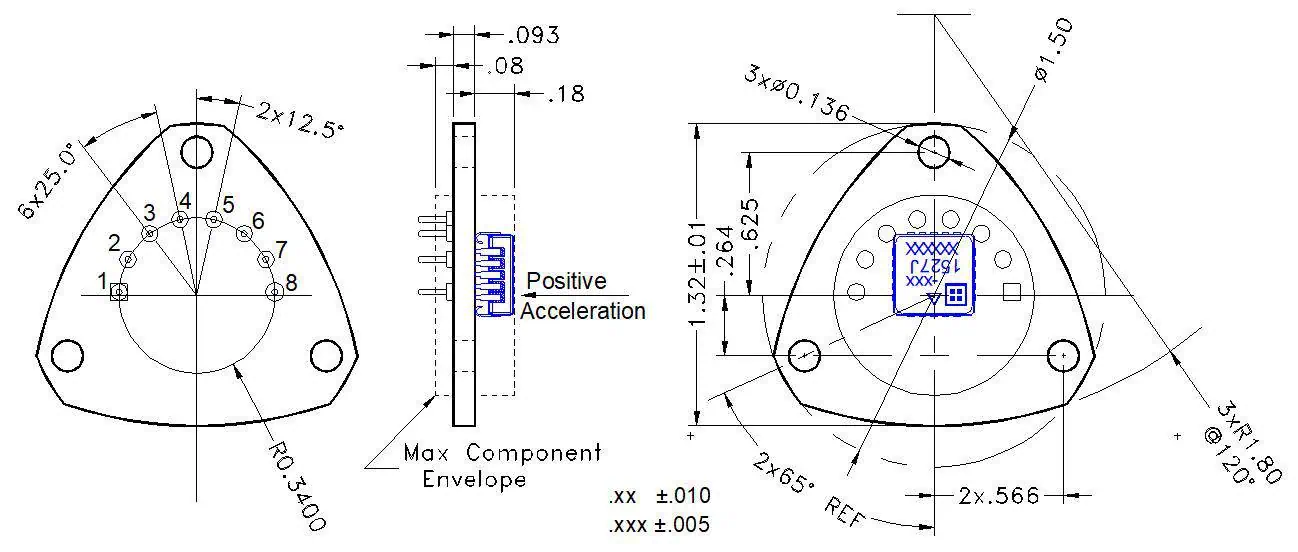

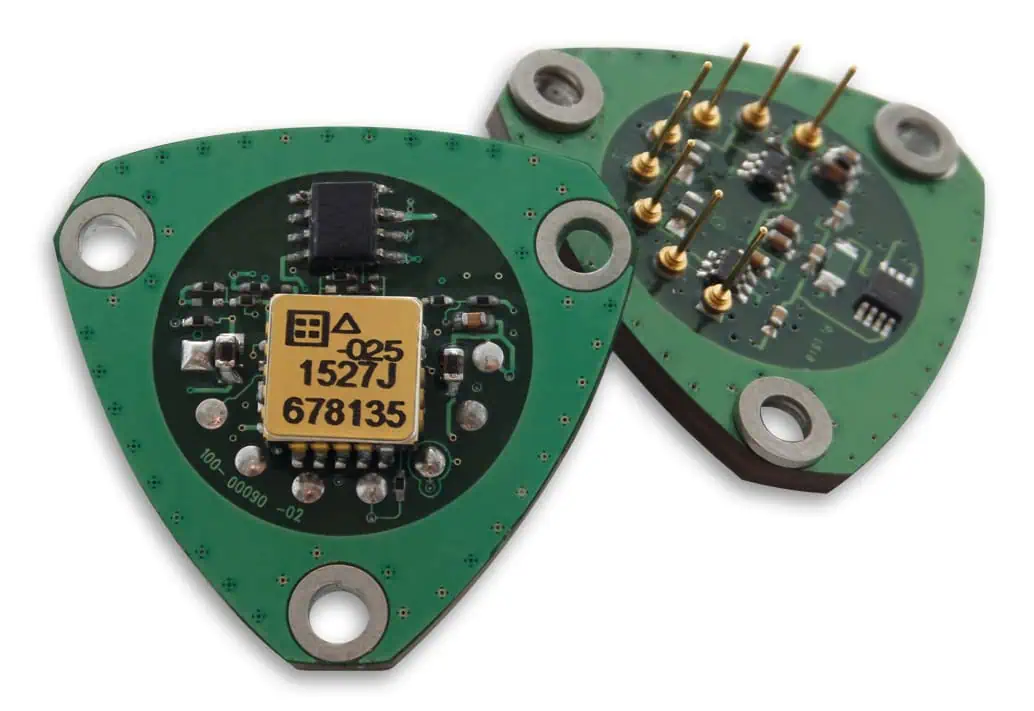

The 2227 Q-Module converts SDI's 1527 tactical-grade surface mount MEMS DC accelerometer into a low-SWaP drop-in replacement unit for legacy quartz accelerometers, featuring industry-standard pin and form factor compatibility. The rugged sensor solution is ideal for UAV and unmanned systems inertial and tilt applications that require zero to medium frequency response, excellent long-term bias and scale factor repeatability, and low noise. It also features a wide operating temperature range of -55 to +125°C.
Specifications:
| ± 10g | ± 25g | ± 50g | |
| Weight | 5.6g | 5.6g | 5.6g |
| Power | +9-16 VDC, 16 mA max | +9-16 VDC, 16 mA max | +9-16 VDC, 16 mA max |
| VRW | 0.07 m/s/√hr | 0.012 m/s/√hr | 0.025 m/s/√hr |
| Bias (Longterm Repeatability) | 1.0 mg | 1.5 mg | 3.0 mg |
| In-run Bias Stability | 12 µg | 30 µg | 60 µg |
| Scale Factor, Long Term Repeatability | 300 ppm | 300 ppm | 300 ppm |
