The mosaic-G5 P6 from Septentrio is a high-performance multi-frequency GNSS receiver module designed for autonomous systems and other SWaP-constrained platforms requiring reliable centimeter-level positioning and attitude data.

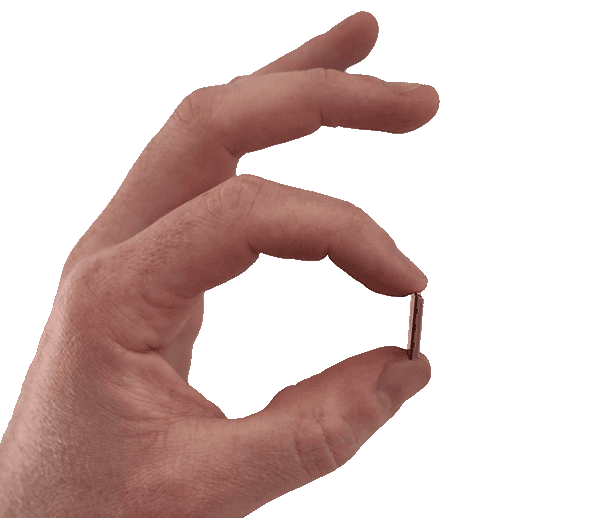

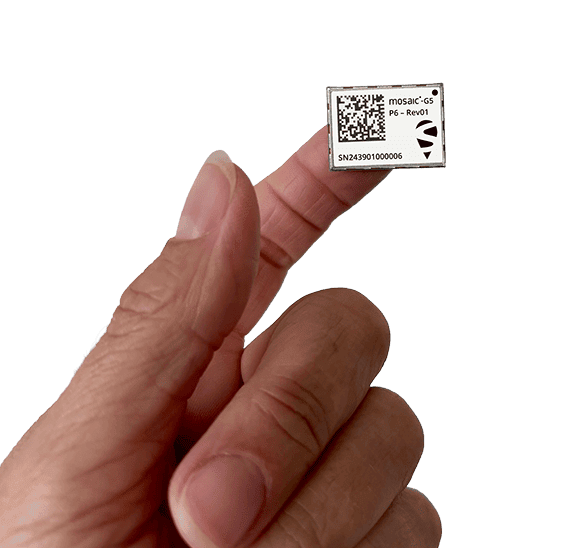

Housed in an ultra-compact 22.8 x 16.4 mm surface-mount package, the module supports concurrent tracking of GPS, Galileo, GLONASS, BeiDou, QZSS, and NavIC signals, with optional dual antenna functionality for heading and attitude measurements. Low-latency data output and update rates up to 100 Hz support stable and accurate autonomous control systems in drones, robotics, and other space-constrained unmanned platforms.
Septentrio’s GNSS+ resilience technologies improve positioning reliability in environments affected by interference, vibration, multipath, and ionospheric activity, while AIM+ Premium technology enhances protection against jamming and spoofing. The module supports RTK positioning, Galileo HAS corrections, and full raw measurement output, and is compatible with open-source autopilot ecosystems.
Designed for automated assembly and ultra-low power operation, the mosaic-G5 P6 enables straightforward integration into compact unmanned and autonomous platforms requiring resilient and accurate positioning.
Specifications:
| Dimensions: | 22.8 x 16.4 x 2.4 mm |
| Weight: | 2.2 g |
| Power consumption: | 0.44 W typical / 0.67 W max (single antenna); 0.6 W typical / 0.785 W max (dual antenna) |
| Constellations supported: | GPS, GLONASS, Galileo, BeiDou, QZSS, NavIC, L-band |
| Channels: | 789 hardware channels |
| Position accuracy: | RTK: 0.6 cm + 0.5 ppm (H), 1 cm + 1 ppm (V) |
| Velocity accuracy: | 3 cm/s |
| Max update rate: | Up to 100 Hz |
