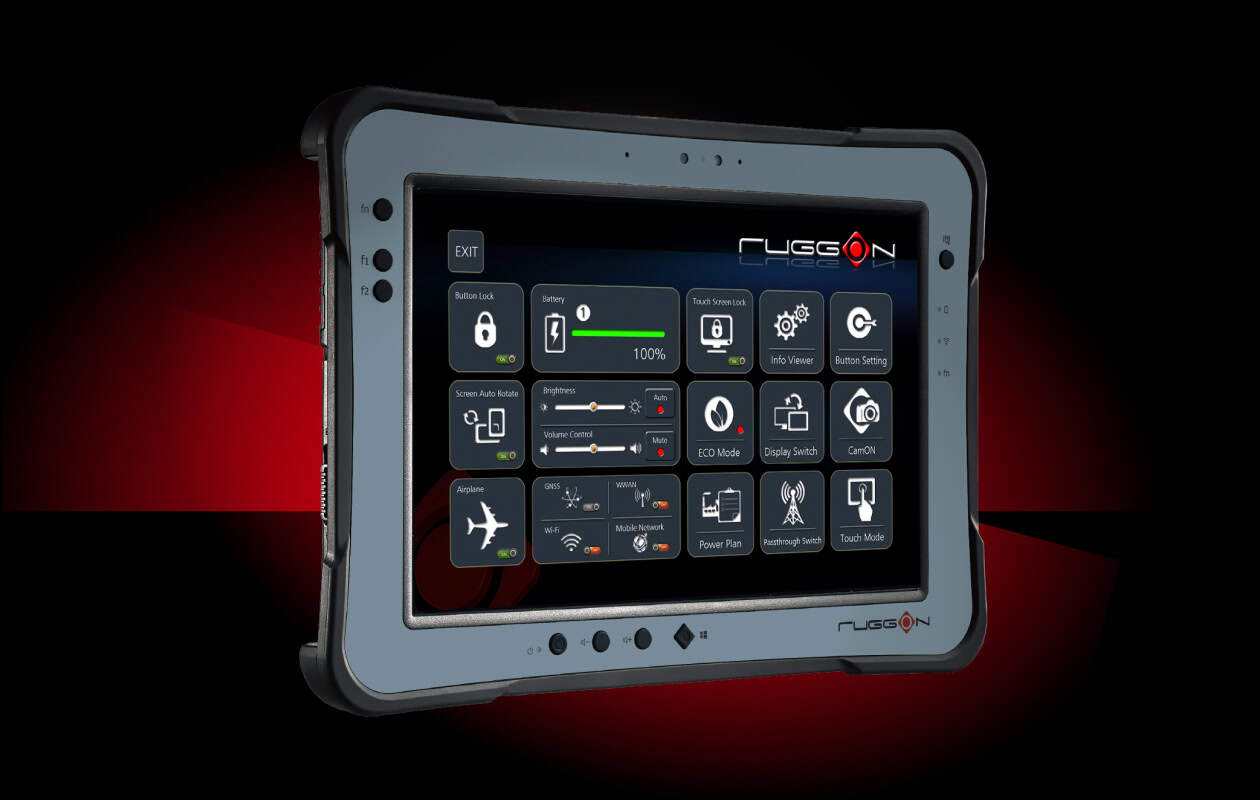

PX501
The PX501 is a rugged tablet that is ideal for UAV and unmanned systems command, control and data exchange applications. Based around the latest 13th Gen Intel® Core processors, it features a 10.1" sunlight-readable screen with optional digitizer and IP54-rated pen.
The ultra-reliable tablet is engineered to MIL-STD-810H and IP65 specifications, allowing it to withstand the harshest field environments. It ensures seamless communication and data transmission with a range of connectivity options including 5G, LTE, Wi-Fi 6E and Iridium SATCOM.
Specifications:
| Dimensions: | 28 x 19.5 x 2.3 cm |
| Weight: | 1.36 kg |
| Power: | AC adapter (65W, 100-240V AC, 50/60Hz) 4500mAh hot swappable battery, (10.8V, 48.6Wh) Optional 9000mAh hot swappable battery, (10.8V, 97.2Wh) Fast charging supported |
| System: | Intel® Core™ i5-1335UE Intel® Core™ i7 1365UE Intel® Processor U300E 8GB DDR5 SDRAM , Optional : 16/32GB DDR5 SDRAM 128GB PCIE M.2 SSD, Optional : 256GB/512GB/1TB PCIE M.2 SSD OS optional : Windows 11 GAC |
| Display: | 10.1” TFT LCD WUXGA (1920 x 1200), Gorilla Glass 1000 nits sunlight readable with hyper dimming option Capacitive multi-touch screen supports glove touch, water rejection, palm rejection, 2mm hard tip stylus Optional digitizer with IP54 pen |
| Communications: | Wi-Fi 6E , 802.11 ax Bluetooth V5.3 GNSS (GPS/ GLONASS/ BeiDou) Optional : 4G LTE/5G (sub 6G), Iridium LEO satellite |
| I/O: | USB 3.1 type A x1, Thunderbolt™ 4 Type-C x 1 RS-232 x 1, option USB 2.0 or Micro SD slot Gigabit Ethernet (RJ45) x 1 Audio headset jack (Headphone/ microphone combo) x 1 Nano SIM slot x 2 Optional RF pass-through connector for WLAN/ GNSS/ WWAN x 2 Docking connector (12-pin) x 1 DC-in x 1 |
