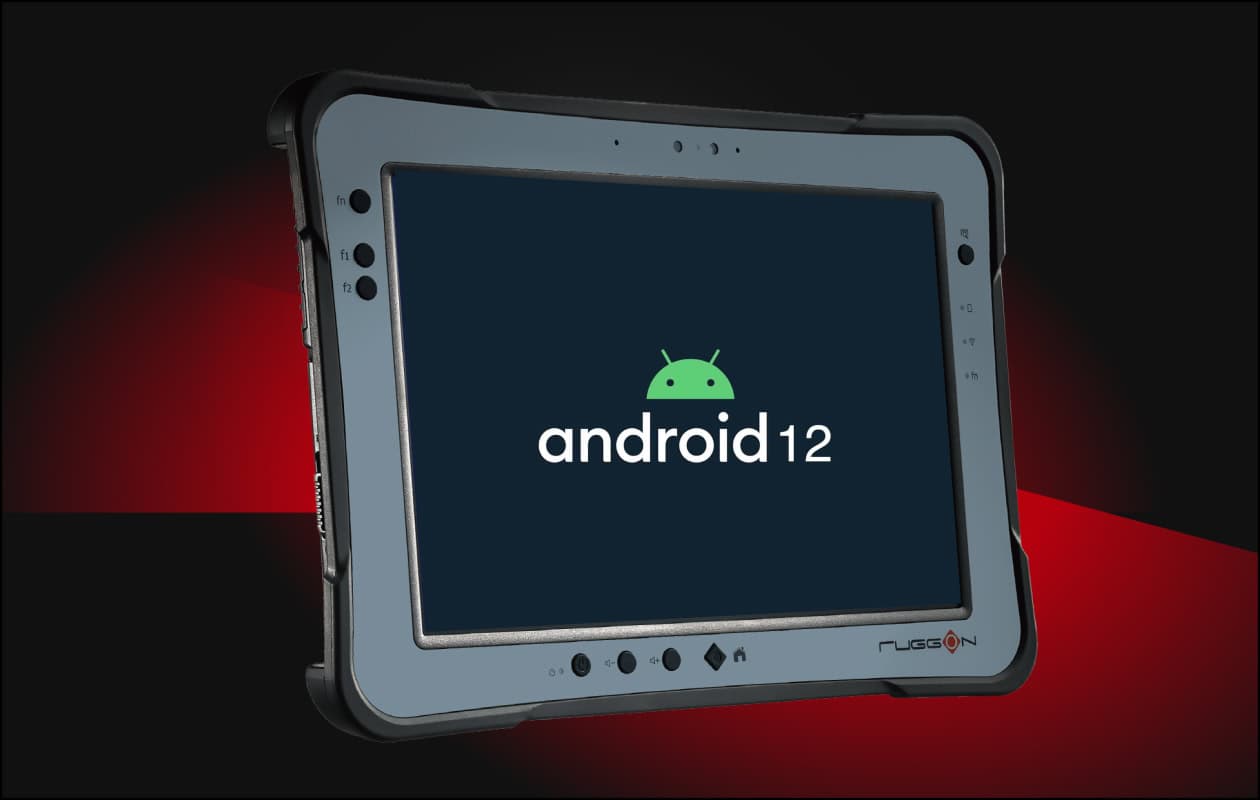

PA501
The PA501 is a rugged tablet that is ideal for UAV and unmanned systems command, control and data exchange applications. Based around the Qualcomm® Octa-Core processor and Android 12, it features a 10.1" sunlight-readable screen with night-time and stealth modes.
The ultra-reliable tablet is engineered to MIL-STD-810H and IP65 specifications, allowing it to withstand the harshest field environments. It ensures seamless communication and data transmission with a range of connectivity options including 4G LTE, Bluetooth 5.0, and 2x2 MU-MIMO Wi-Fi.
Specifications:
| Dimensions: | 280 x 195 x 23 mm |
| Weight: | 1.4 kg |
| Power: | AC adapter (65W, 100-240V AC, 50/60Hz) 4500mAh hot swappable battery, 13 hours battery life Optional 9000mAh hot swappable battery, up to 26 hours battery life Supports fast charging |
| System: | Qualcomm® Snapdragon™ 660 Octa-Core, 1.9GHz up to 2.2GHz 4GB LPDDR4 RAM + 64GB eMMC storage OS : Android 12, Google Mobile Services (GMS) certified |
| Display: | 10.1” TFT LCD WUXGA (1920 x 1200) 1000 nits Sunlight readable display supports night mode and stealth mode Capacitive 10-point multi-touch supports glove touch, 2mm hard tip stylus Gorilla Glass |
| Communications: | IEEE 802.11ac 2x2 MU-MIMO Bluetooth V5.0 4G LTE certified with Verizon, AT&T and FirstNet™ through optional Sierra Wireless EM7511 GNSS (GPS/ GLONASS/ BeiDou) Optional built-in NFC |
| I/O: | USB 3.1 type C x 1 (display port supported), USB 2.0 type A x 2 RS-232 x 1 (available for option USB 2.0) Gigabit Ethernet (RJ45) x 1 Audio headset jack (Headphone/ microphone combo) x 1 Micro SD slot x 1 (SDXC/ SDHC supported), Micro SIM slot x 2 Optional RF pass-through connector for WLAN/ GNSS/ WWAN x 2 Docking connector x 1 DC-in x 1 |
