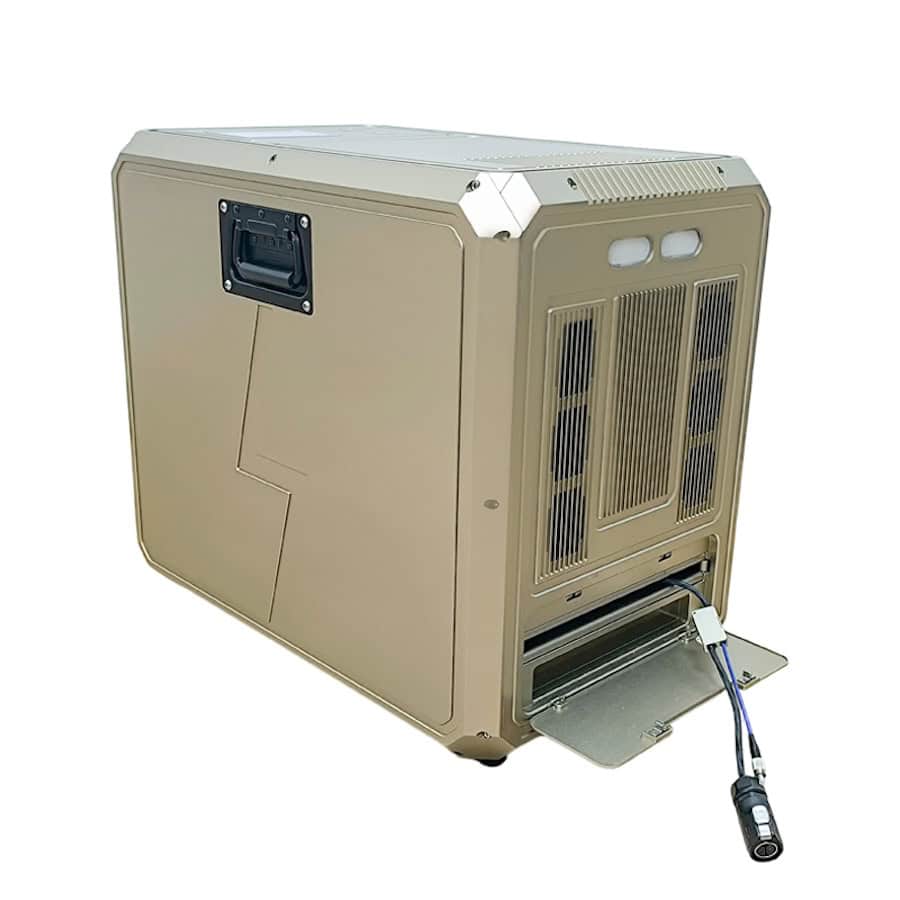

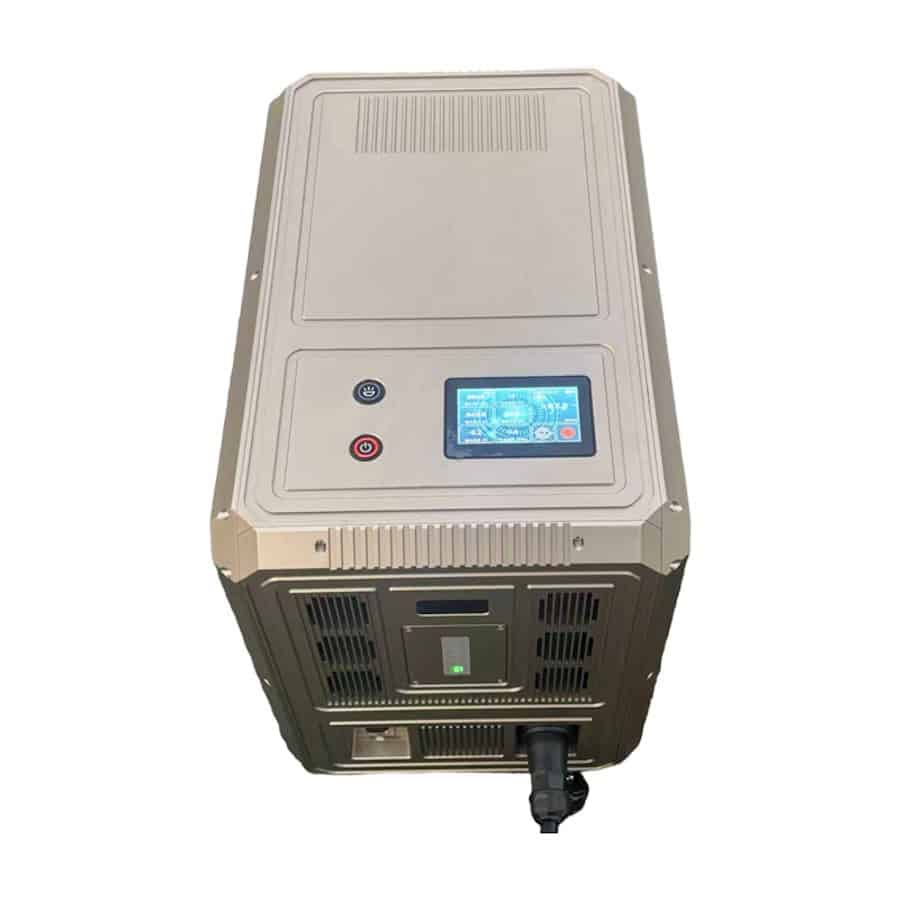

Rosefinch Technology's 18.0 kW Universal Drone Tether Station is a lightweight and portable tethered power solution designed for drone platforms with MTOWs of 70 to 90 kg. Providing up to 24 hours of persistent hover capability, it delivers stable voltage output and features a backup battery with automatic switching in case of a power outage.
The system's highly durable cable is constructed from lightweight temperature-resistant aviation wire, sheathed in a composite fluoroplastic insulation layer and a high-tensile aviation-grade woven fiber layer. Single-mode fiber cable is also available for optional fiber optic communication. Fully autonomous built-in smart winch control enables the connected UAV to take off and land without any human input.
The tether station has been designed with safety foremost in mind, with complete electrical isolation of high-voltage AC and low-voltage DC power. It incorporates a range of built-in protection and automatic fault detection mechanisms that safeguard against issues such as input overvoltage and undervoltage, output overcurrent, and short circuits.
Specifications:
| Dimensions (D x W x H): | 560 x 460 x 380 mm |
| Weight: | 38 kg incl. 110m cable |
| Cable Lengths: | 110, 220m |
| Flight Duration: | 24 hrs |
| Ground Module Input Voltage: | 360 – 440 VAC, 50/60 Hz |
| Ground Module Output Voltage: | 700 – 900VDC adjustable |
| Ground Module Output Power: | ≤20,000W (rated long-term output) ≤22,000W (peak, up to 30s) |

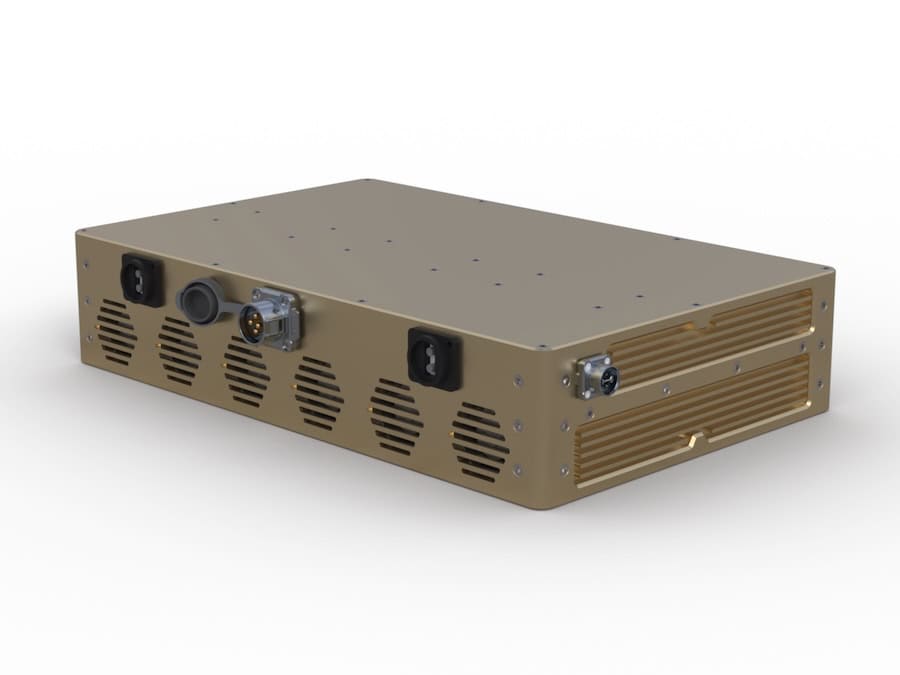

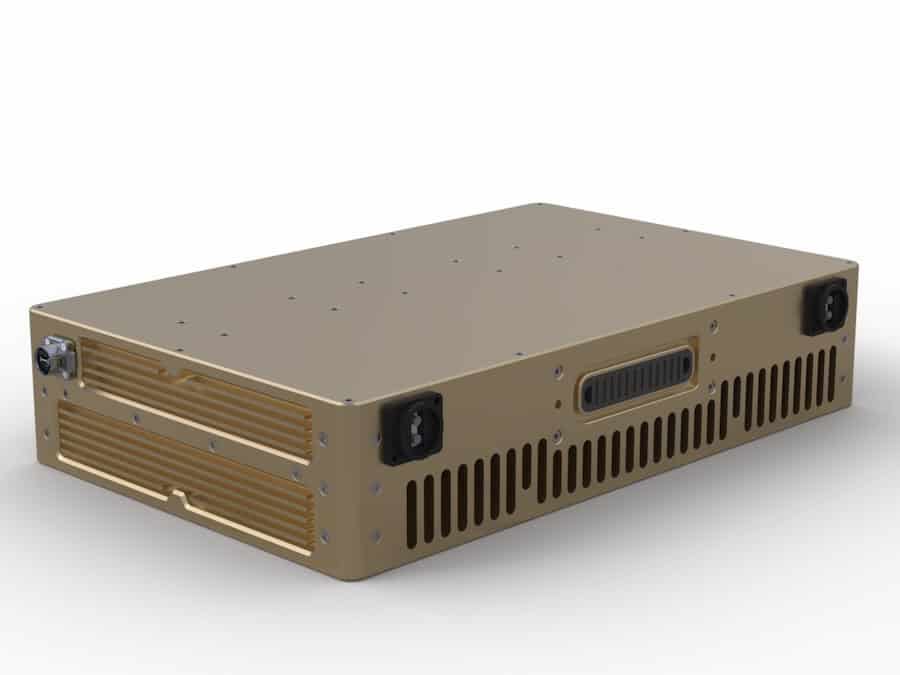

| Air Module Input Voltage: | 600 - 900 VDC |
| Air Module Output Voltage: | 58.5 ± 1% VDC |
| Air Module Output Power: | 18,000W (rated long-term output) 19,000W (peak, up to 10s) |
