IMSI & WIFI Catcher Devices for Drones - Location and Surveillance SIM Based Devices
Revector Detector IMSI Catcher UAV 3.0 Smallest, lightest and highest-performing IMSI catcher technology available
Revector Detector IMSI Catcher UAV 3.0

Smallest, lightest and highest-performing IMSI catcher technology available

Visit Website Contact
Saved
Save

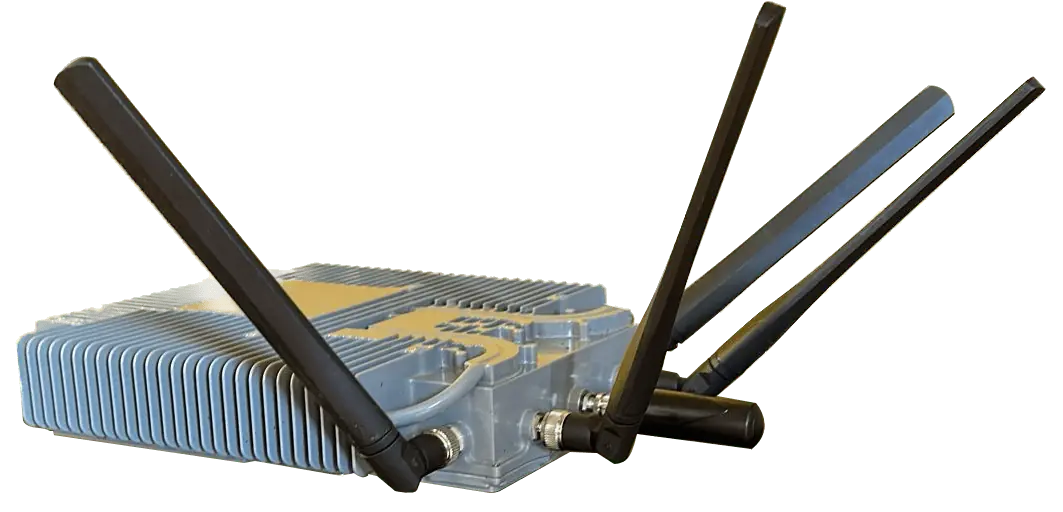

Revector Detector IMSI Catcher UAV 3.0

The Revector Detector IMSI Catcher UAV 3.0 payload provides detection, tracking and control of 2G, 3G and 4G mobile phones, and is ideal for law enforcement, military and security personnel, and search and rescue teams. Based around a dual SDR (software-defined radio), it extracts and records all IMSI, IMEI and TSMI data from devices in range, providing GPS location and timestamp.

The low-SWaP unit establishes a new mobile phone cell site, encouraging all GSM, UTMS and LTE devices in the area to connect. Once a target device is connected, the Revector Detector system provides a range of capabilities to the operator, including:

  • Tactical mapping for immediate location of device
  • Active route mapping
  • Redirecting target device to GSM/UTMS/LTE
  • Recording of all IMSI, IMEI and TMSI information
  • Spoofing inbound SMS or call to captured target phone
  • Monitoring outbound SMS or call attempts
  • Alerts on predefined suspect IMSI or IMEI
  • GPS location and time/date stamp for all data
  • Silent call & direction-finding on all technologies
  • Selective jamming (denial of service) of target devices
  • Specific target blocking
  • Target battery draining
  • Central control management via UAV uplink
  • Distance information on target UE
  • Emergency call override
  • Voice channel to target device

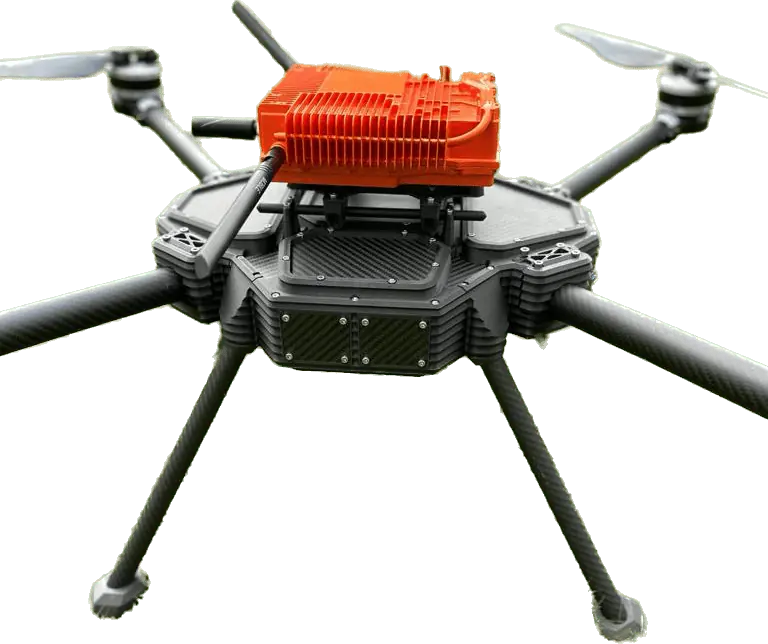

The highly robust unit is compact, lightweight and easy to integrate. Revector's revolutionary system has already flown on over 20 different multi-rotor, VTOL and fixed-wing UAV platforms around the world.

Specifications:

Dimensions: 200 x 195 x 53 mm
Weight: 1.4 kg
Power: 12 VDC, <40W
RF Output Power: Up to 5W per channel
Receiver Sensitivity: < -120 dBm
SDR Frequency Range: 400 MHz - 3GHz
