TA437
Permabond TA437 is a single-component structural acrylic adhesive designed primarily for metals, ferrites and ceramics. Used with Initiator 41 or 41M, it provides rapid fixture for high-speed production. It can also cure anaerobically in a close-fitting metal joint when an initiator is not desired. The cured adhesive forms strong, tough bonds with good impact and high-temperature resistance.
TA437 is suited to bonding permanent magnets in UAV brushless electric motors, including compatible rotor and stator assemblies. Its no-mix application and fast activated cure make it ideal for production processes for motor components that must withstand centrifugal forces, vibration and elevated operating temperatures.
Specifications:
| Color | Orange |
| Viscosity | 20 rpm: 40,000 mPa.s (cP); 2.5 rpm: 130,000 mPa.s (cP) |
| Gap | 0.5 mm (0.02 in) |
| Handling Time | 15 to 20 min without initiator; 1 to 3 min with Initiator 41 |
| Shear Strength (Steel) | 14 to 20 N/mm² (2,000 to 3,000 psi) |
| Temperature Range | -55 to 200°C (-65 to 390°F) |

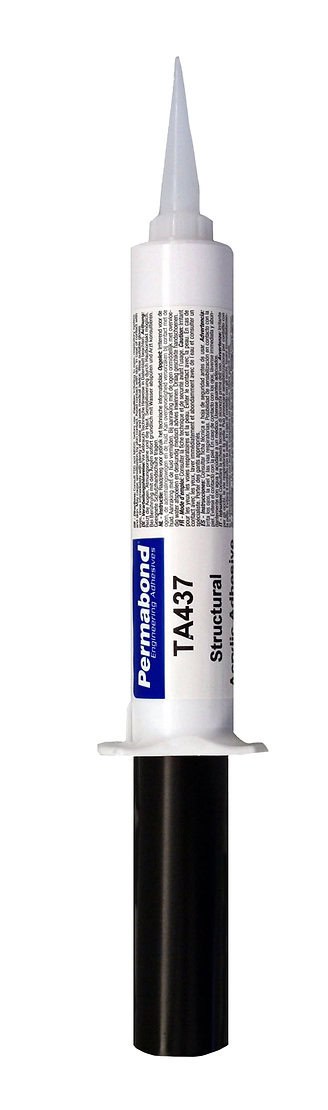

| Packaging | 2 x 65 mL kits; 10 x 300 mL cartridges |
