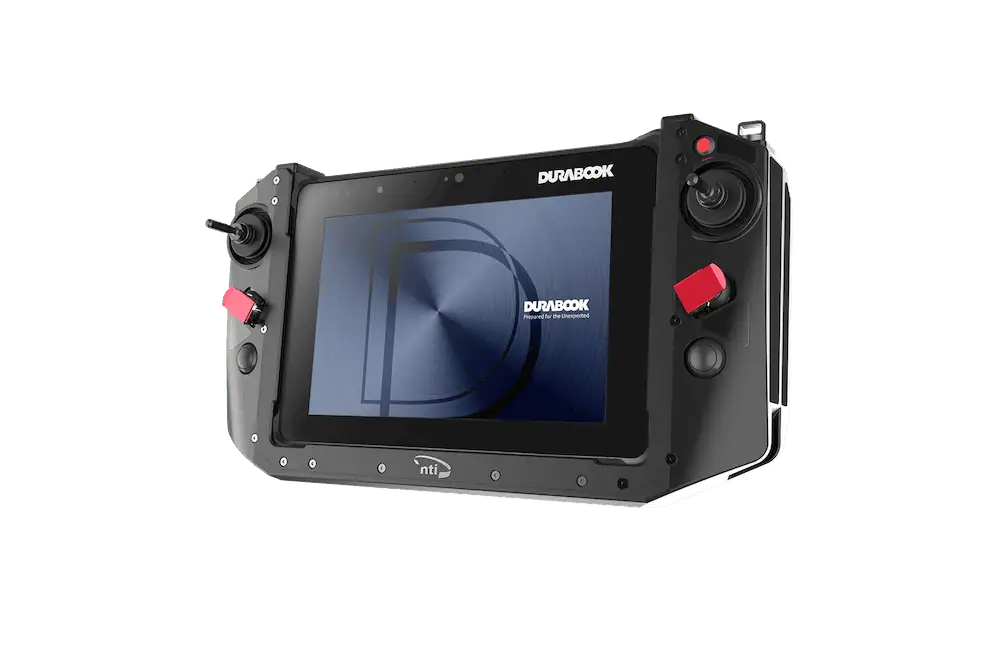

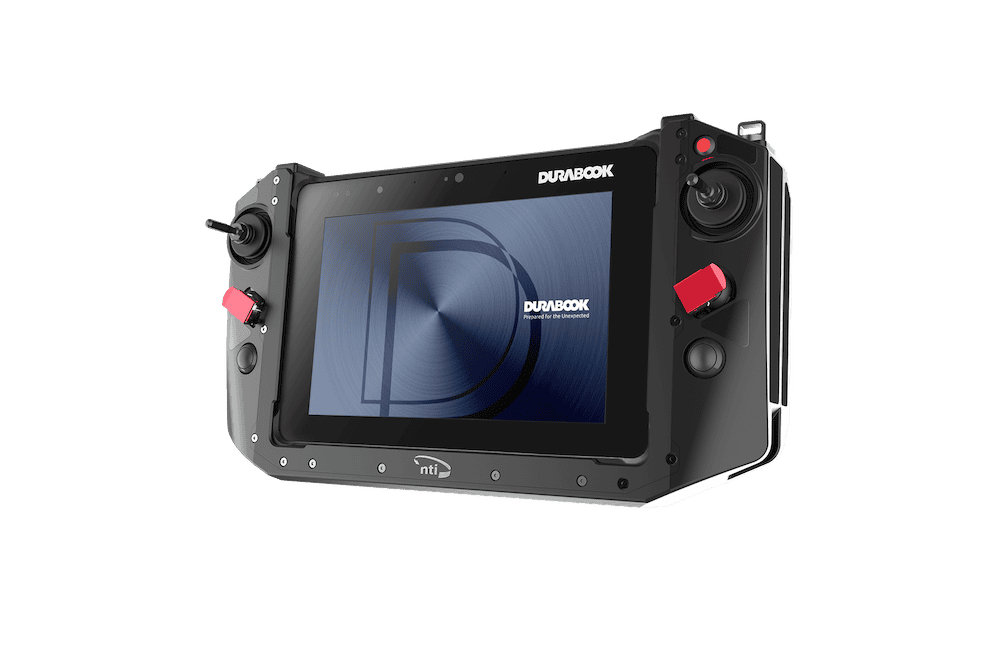

The Dragonfly NR-8 is a highly versatile GCS based around a rugged Durabook tablet with 8-inch screen and offering a rich feature set to suit the control requirements of a variety of unmanned aerial, ground and surface systems. It is ideal for a wide range of military, industrial and first responder use cases, including ISR, disaster response, search and rescue, and infrastructure inspection.
The handheld unit provides a variety of customizable interface options including Ethernet 10/100, HDMI, and USB 2.0 and 3.2 Type-C ports, and can be integrated with various DC-DC converters in the 10-75V range to ensure maximum operational flexibility. It can also be tailored with optional add-ons such as specialized joysticks, buttons, and radio transceivers.
The ND-8 features military-grade connectors and components, and is compliant with MIL-STD-810H, MIL-STD-461G and IP65 standards, ensuring high performance even in the presence of shock, vibration, water, dust, and extreme temperatures.
Specifications:
| Dimensions (L x W x H): | 315 x 177 x 81 mm |
| Weight: | 2.1 kg w/tablet |
| Computing Specs: |
Intel 12th Generation processors with vPro: Intel Core i7-1250U, Core i5-1230U or Pentium Gold Processor 8500 Intel Iris Xe Graphics 8GB up to 16GB (LPDDR4x) 128GB NVMe PCIe SSD Optional: 256GB/512GB/1TB PCIe SSD Windows 11 Pro 64-bit Optional: Linux |

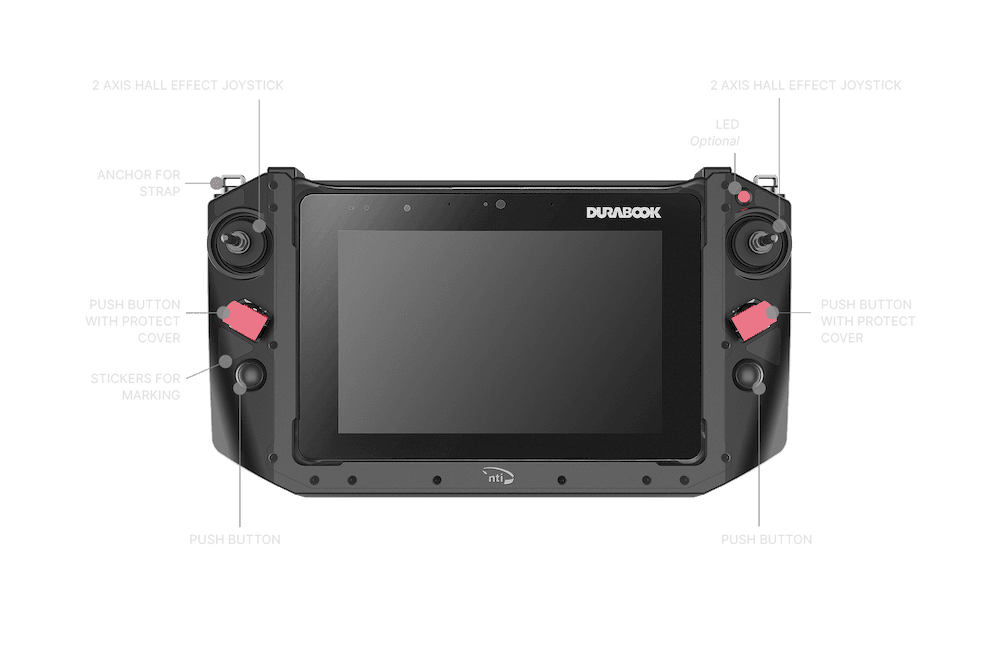

| Controllers: |
Push Button x4 Push Button with Protective Cover x2 Optional: Control Switch (TC 5POS) x1 (Instead of 1 unit of Joystick) Optional: Toggle Switches |
| Interfaces: |
LAN 10/100 USB 2.0 x2 Optional: LAN 1GBps Optional: USB 3.0 x1 (Instead of USB 2.0 x 2) Optional: USB 3.2 Type C x1 |
