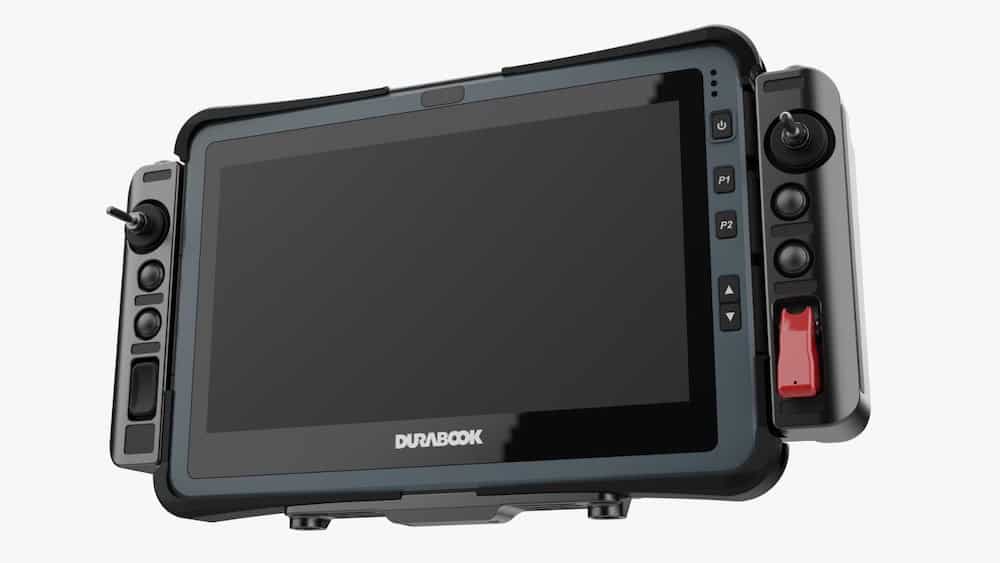

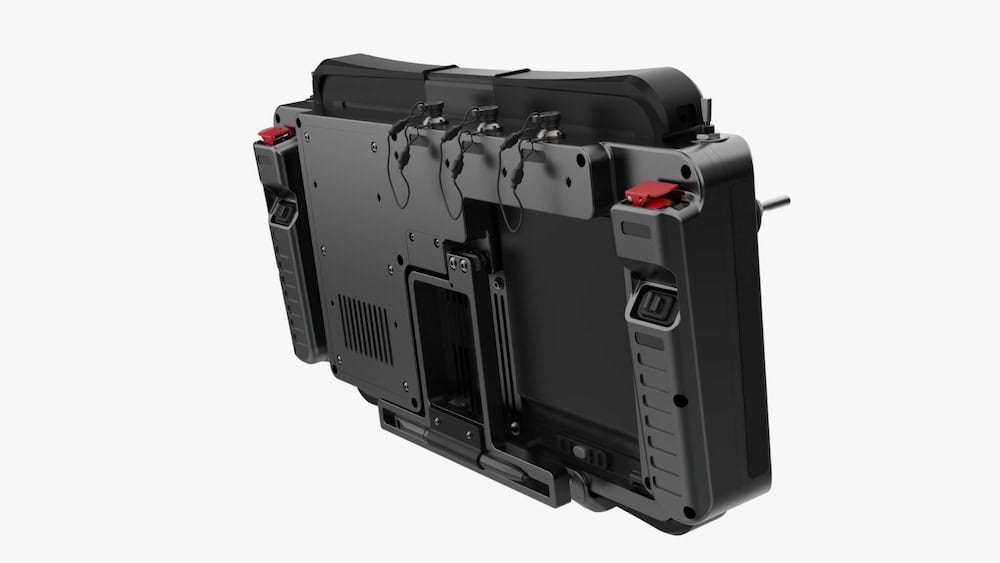

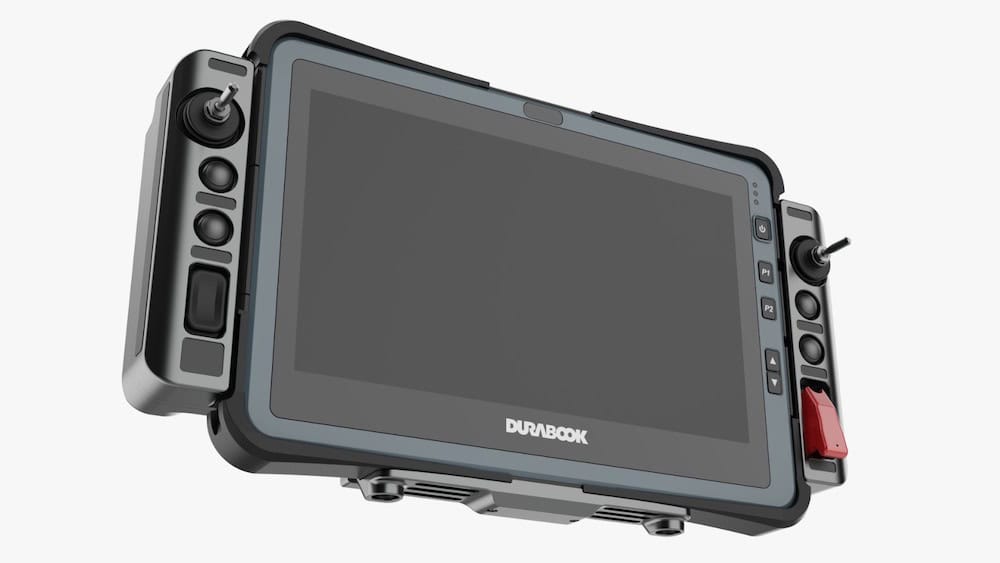

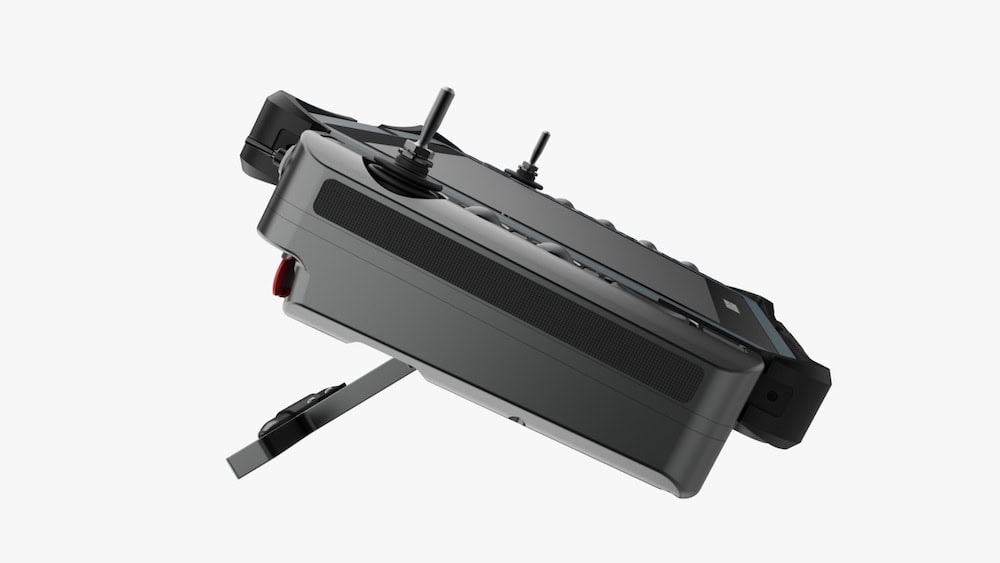

The Dragonfly ND-11 Ground Control System (GCS) from NTI Systems provides a robust command interface for managing sophisticated drone missions. Designed with a high-visibility 11.6″ display, it ensures clear situational awareness in diverse lighting conditions. Operators benefit from a fully programmable control layout, allowing personalized configurations of joysticks, switches, and function keys to match mission requirements. The ergonomic structure, with an integrated kickstand and balanced form, enables both handheld and stationary operation during extended field deployment.
Constructed to meet MIL-STD-810H and IP66 standards, the ND-11 withstands harsh environmental conditions while maintaining data integrity and system uptime. Hot-swappable power modules support continuous operation without rebooting, and modular connectivity including USB, Ethernet, and serial ports facilitates seamless integration with unmanned platforms and payload systems. Driven by 12th Gen Intel® Core™ processors, the ND-11 offers the computing strength required for mapping, data visualization, and mission planning in real time.
Specifications:
| Dimensions (L x W x H): | 452 mm x 220 mm x 104 mm |
| Weight: | 2.8 kg w/tablet |
| Computing Specs: | Intel® 12th Generation processors with vPro™: Intel® Core™ i7-1250U or Core™ i5-1230U 8GB up to 32GB onboard RAM 256GB NVMe PCIe SSD Optional: 512GB/1TB/2TB PCIe SSD Windows 11 Pro 64-bit |
| Controllers: | 2 Axis Hall Effect Joystick x 2 2 Axis Thumbwheel Hall Effect Switch x 2 Red Push Button with Red Protective Cover x 2 6 Black Push Buttons up to x 8 3 way control switch Optional: Toggle Switches x 3 (configurable number of positions) Optional: Toggle Guards |
| Interfaces: | Ethernet 10/100 x 2 USB 2.0 x 1 USB 3.2 Gen1 TYPE – A x 1 Additional interfaces available upon request |
