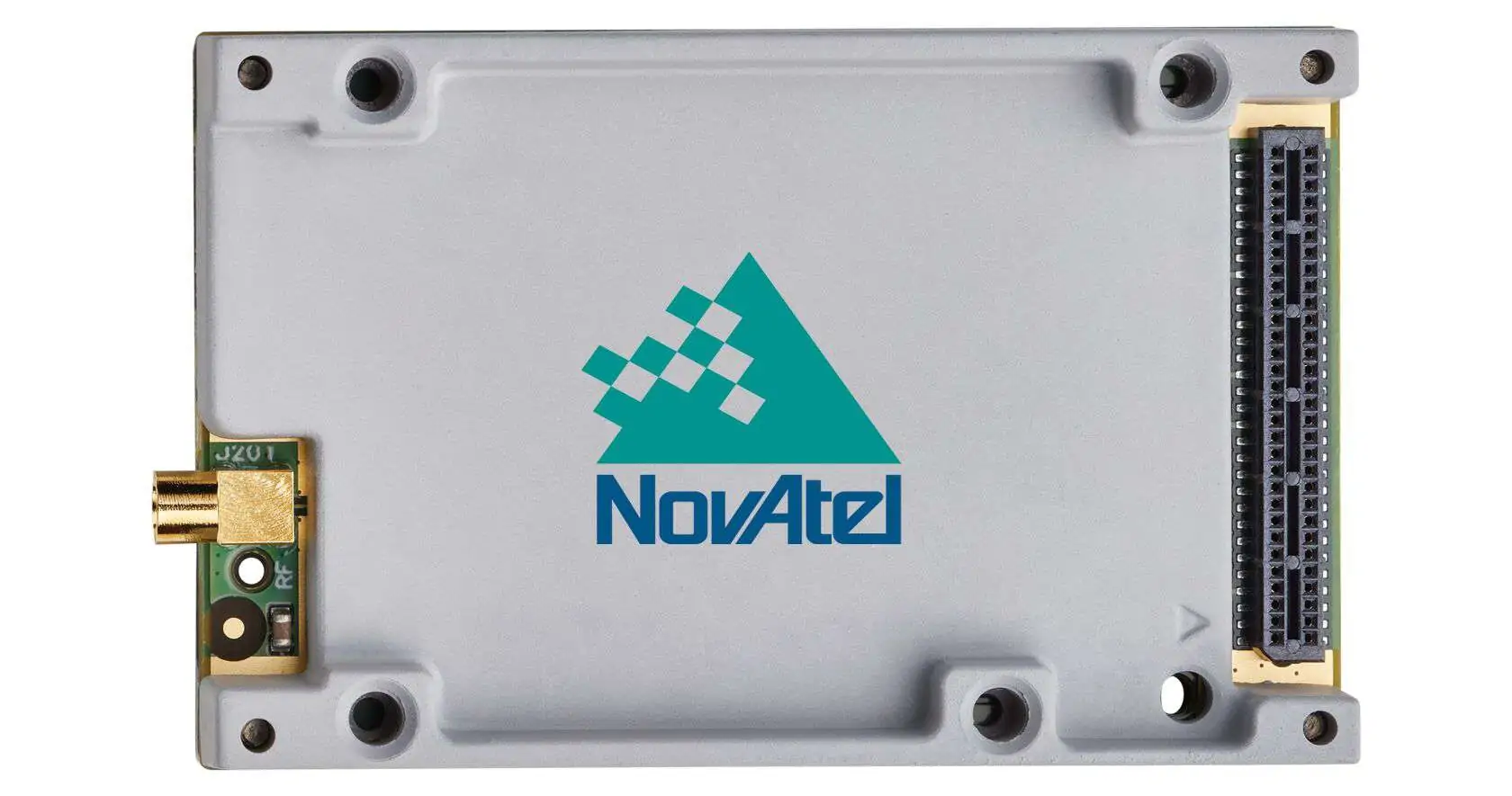

OEM7600 GNSS Receiver Board OEM7600 Dual-Frequency GNSS Receiver

The OEM7600 is a compact, multi-frequency Global Navigation Satellite System (GNSS) receiver that delivers robust positioning for space-constrained applications. With a variety of interface options to facilitate system integration plus L-Band functionality, the OEM7600 ensures high-performance GNSS positioning.

The OEM7600 is capable of tracking all current and upcoming GNSS constellations and satellite signals, including GPS, GLONASS, Galileo, BeiDou, QZSS and IRNSS. This receiver has up to 555 channels in its architecture.

All OEM7® firmware is field upgradable with the OEM7600. Firmware options available include NovAtel CORRECT® with RTK for centimetre level real-time positioning, ALIGN® for precise heading and relative positioning, GLIDE® for decimetre level pass-to-pass accuracy and RAIM for increased GNSS pseudorange integrity.

Features
  • Multi-frequency, multi-constellation GNSS receivers offering flexible positioning options and ease of integration
  • Multi-channel L-Band supports TerraStar correction services
  • Serial, USB, CAN and Ethernet connectivity with web interface
  • Advanced interference visualization and mitigation features
  • Firmware solutions including RTK, GLIDE , STEADYLINE® , SPAN® and ALIGN
  • Simple to integrate, compact form factor with 20 g vibration performance rating
  • SPAN® INS functionality
Attributes
System Type Board
General Info Length (mm) 55
Width/Diameter (mm) 35
Height (mm) 11
Weight (g) 39
Typical Power Consumption (w) 0.9
Signal Tracking GPS L1 C/A, L1C, L2C, L2P, L5
GLONASS L1, L2, L3, L5
BeiDou B1l, B1C, B2a, B2b, B2l
Galileo E1,E5 AltBOC, E5a, E5b
SBAS L1, L5
QZSS L1 C/A, L1C, L2C, L5
NavIC L5
L-Band up to 5 channels
Number of Com Ports LVCMOS 5
CAN Bus 2
USB Device 1
USB (Host) 1
Ethernet 1
Performance Accuracy (RMS)
Single Point L1 1.5 m
Single Point L1/L2 1.2 m
SBAS 60 cm
DGPS (code) 40 cm
TerraStar-C PRO 2.5 cm
TerraStar-C 4 cm
TerraStar-L 40 cm
RTK 1 cm + 1 ppm
