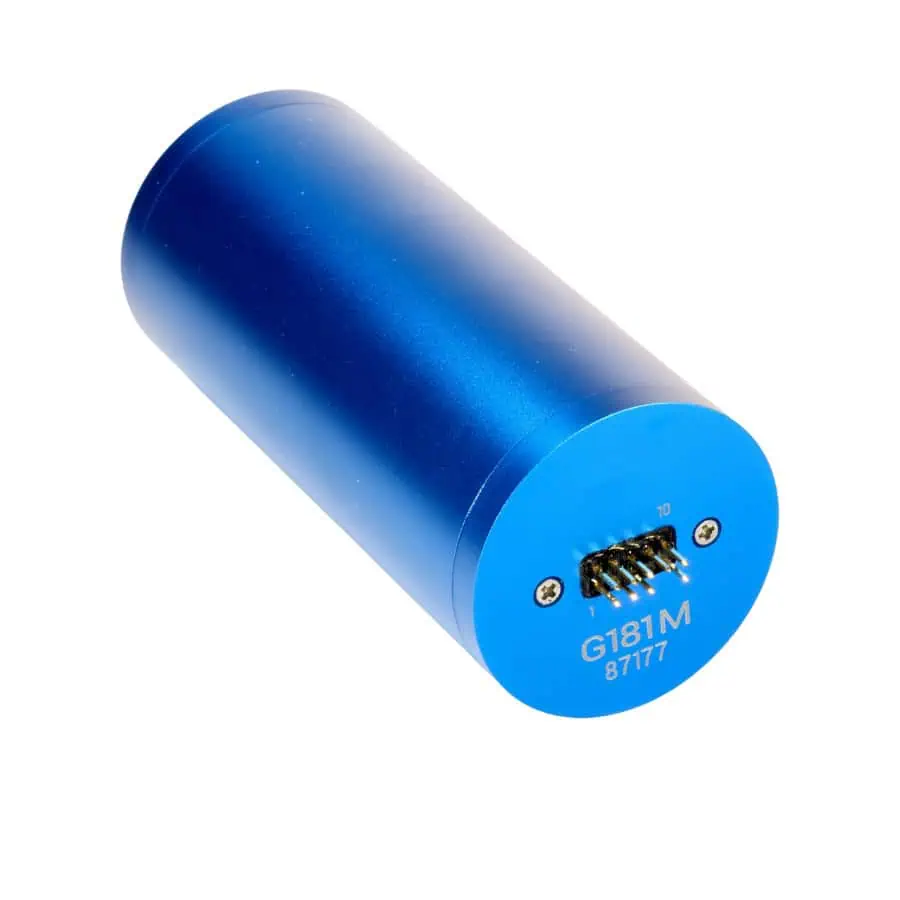

G181 Fiber Optic Gyro
The G181 is a low-power three-axis fiber optic gyroscope (FOG) that incorporates three single-axis FOG sensors mounted on a solid frame, as well as a fully integrated ADC board. Other key features include almost instant initialization and low power consumption of just 2W.
The three-axis gyro is housed in an aluminium alloy casing, and is ideal for a variety of UAV, drone and robotic vehicle applications, such as gimbal and camera stabilization.
Specifications:
| Dimensions (D x H) | 46 x 106 mm |
| Weight | 160g |
| Power | 2W |
| Input Range | 300°/s |
| Bias | 1°/hr RMS |
| ARW | 0.015 °/√h |
| Bandwidth | 0.7 kHz |
| Magnetic Response | 3°/h/Gauss |
