Fiber Optic Gyro G121

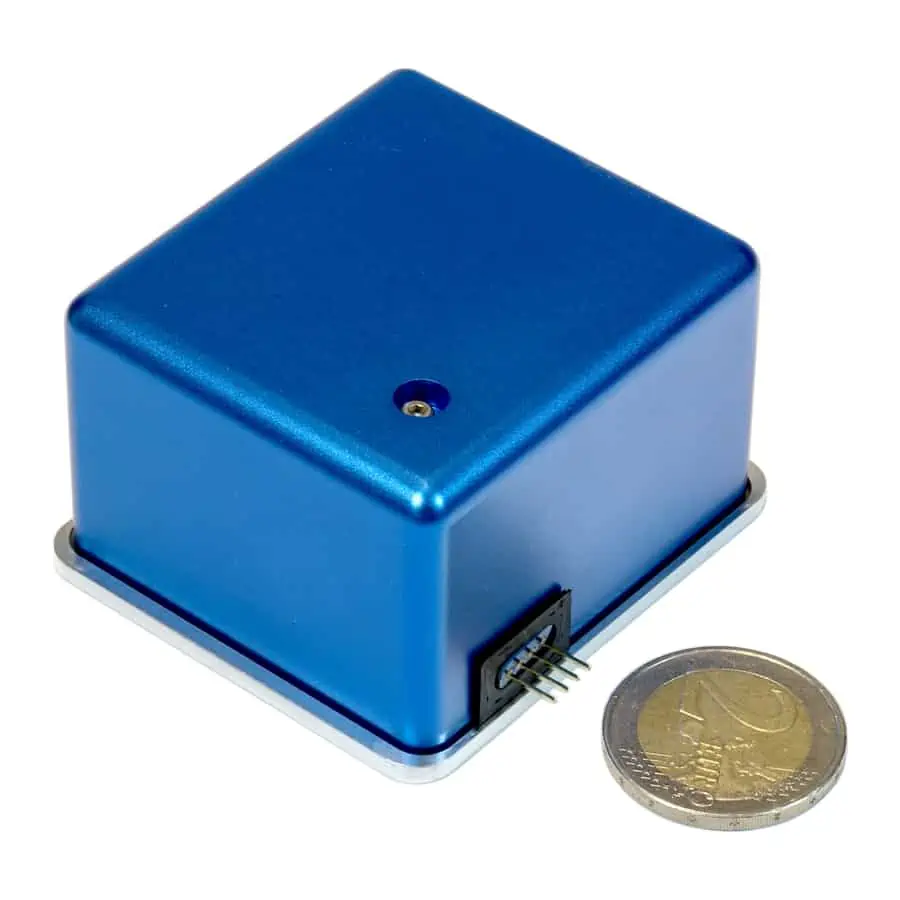

The G121 three-axis fiber optic gyroscope (FOG) features an ultra-low-SWaP design with low noise performance. The units contain three single-axis FOG sensors mounted on a solid frame, as well as a fully integrated ADC board. Other key features include almost instant initialization and low power consumption of just 2 Watts.
The three-axis gyro is available in an aluminium alloy or μ-metal case.
| Dimensions (mm) | 52 x 58 x 37 |
| Weight (gram) | 125 / 145 (shielded) |
| Power (W) | 2 |
| Input range (°/s) | 400 |
| Bias RMS (°/h) | 3 / 1 (shielded) |
| ARW (°/√h) | 0.025 |
| Bandwidth (kHz) | 0.7 |
| Magnetic response (°/h/Gauss) | 3 / 0.3 (shielded) |
| Initialization (s) | 1 |
| Data rate (kHz) | 4.8 |
| Baud rate (kBd) | 921.6 |
| Vibration RMS (g) | 6 |
| Shocks (g) | 350 |
| Operating temperature (°C) | -40... +70 |
| Housing | Al alloy |
