Attitude & Heading Reference Systems
Micro-Magic's MEMS-based AHRS combine high-precision accelerometers, gyroscopes, and magnetometers with sophisticated Kalman filtering algorithms to provide ultra-reliable heading and orientation data for UAV and unmanned systems navigation and positioning, including heading angle, roll angle, pitch angle, angular velocity, acceleration and more.
All units are precisely factory-calibrated and feature either IP66 or IP67 ingress protection ratings.
Specifications:

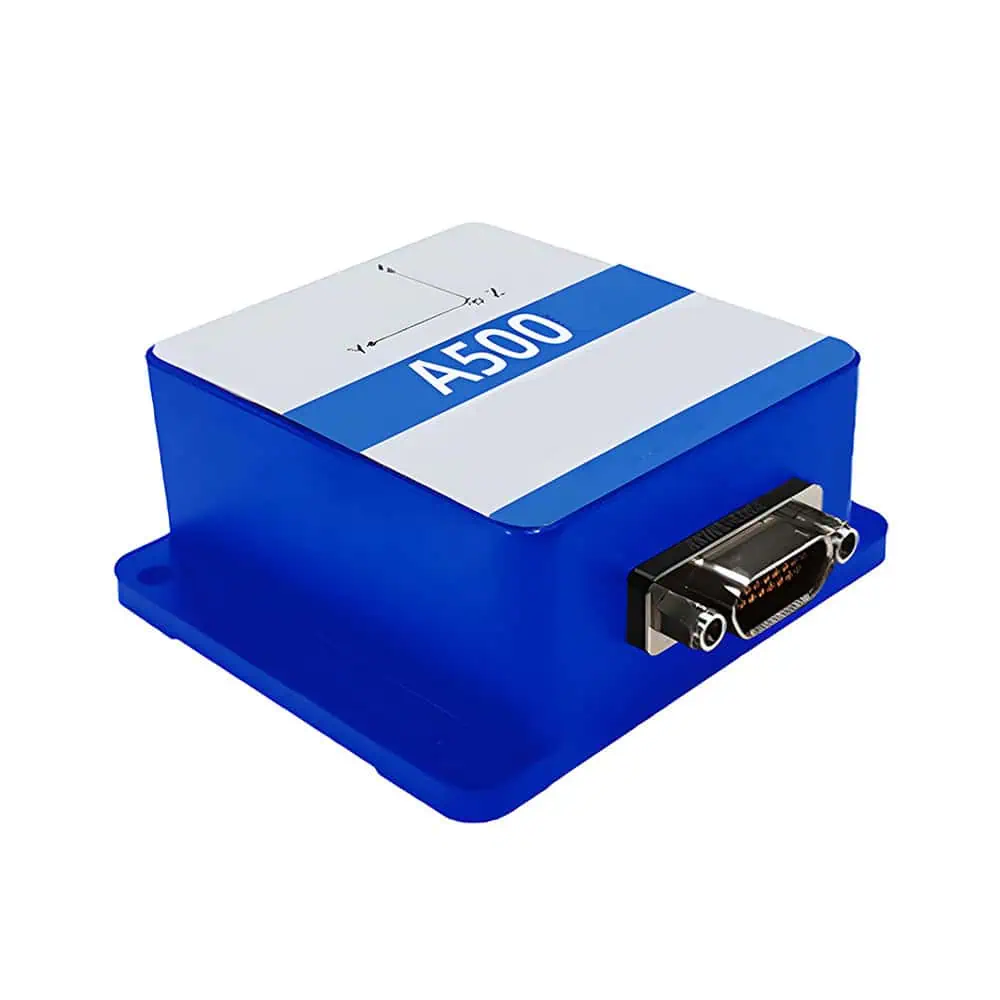

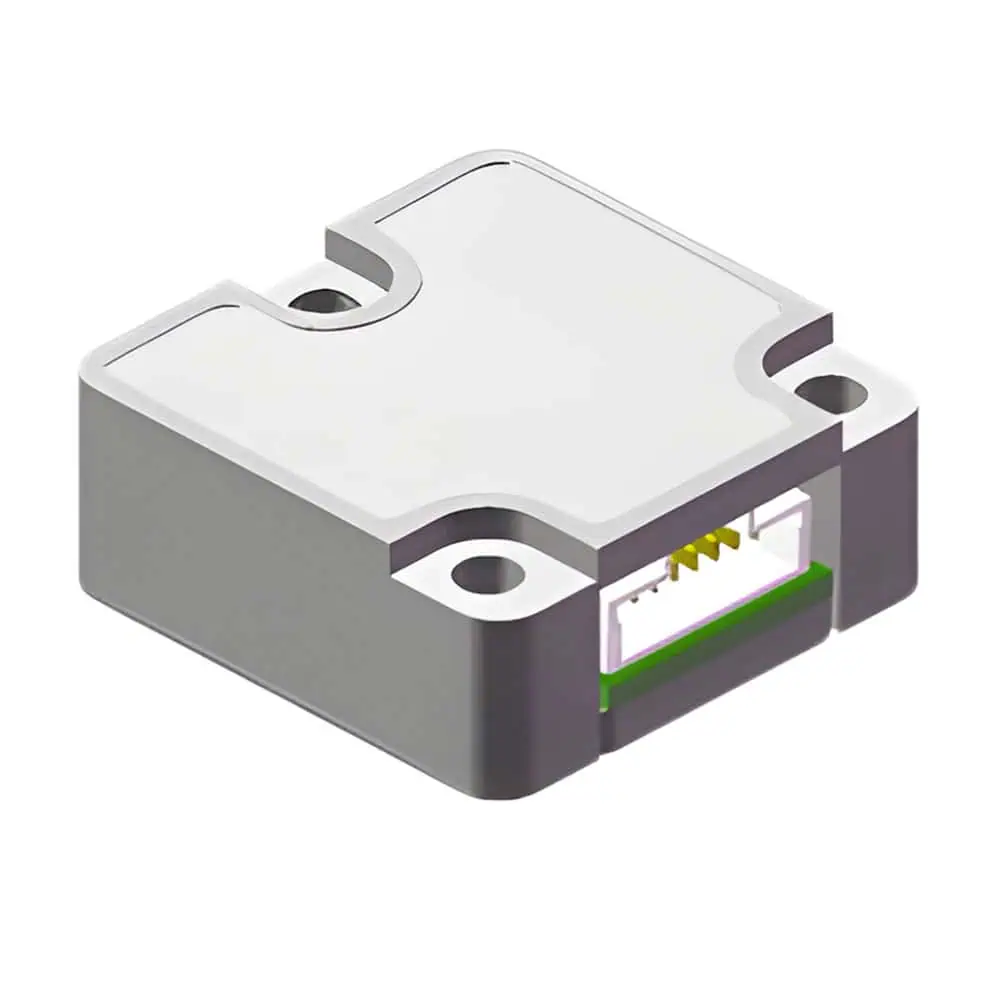

| A500 | A5000 | A5500 | |
| Dimensions: | 59.6 x 59 x 23.5 mm | 59.6 x 53.4 x 23.5 mm | 22 x 10 x 10 mm |
| Weight: | 120g | 120g | 8g |
| Power Consumption: | <0.6W | <0.6W | 0.38W |
| Heading Accuracy: | 0.3o | 0.2o | |
| Roll/Pitch/Yaw Accuracy: | 0.3o/0.3o/NA | 0.2o/0.2o/NA | 0.1 – 0.2o |
| Roll/Pitch/Yaw Range: | ±180/±90o/NA | ±180/±90o/NA | ±180/±90o/±180 |
