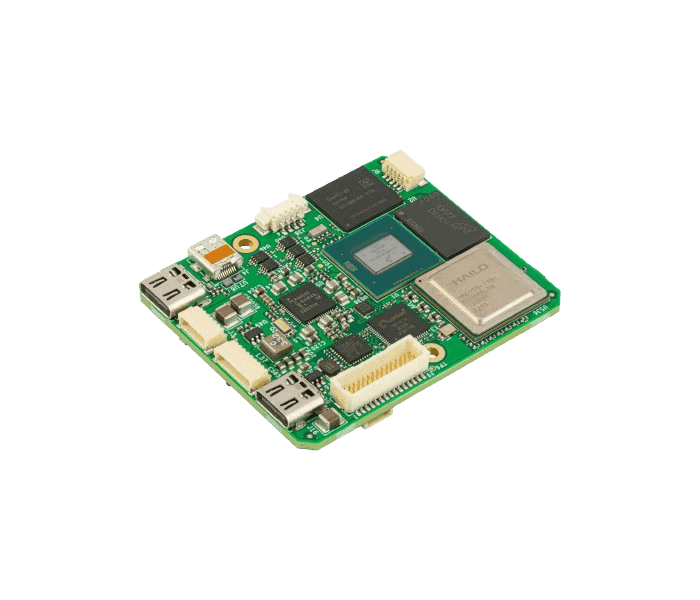

Jupiter SB/SB-AI
Jupiter SB is a powerful video and audio capture, encoding, transcoding and display solution that is ideal for autonomous and semi-autonomous drone and robotics platforms. Handling up to four inputs simultaneously, it offers a main channel optimized for Sony Block FCB-9500/7520 cameras, and a secondary channel that provides connectivity for Tenum 640, Boson FLIR, and Lepton FLIR cameras.
The solution supports unicast, multicast, and broadcast streaming via UDP, RTP and RTSP over wired and wireless networks, with ultra-low latency of down to 100 ms. An optional configuration is available that incorporates the Hailo-8 AI accelerator for advanced functionality such as real-time detection, classification and tracking.
Specifications:
| Dimensions: | 50 x 50 mm |
| Power: | 12V input <4W for 1x 1080p60 (excluding AI accelerator & camera) <5W for 2x 1080p60 (excluding AI accelerator & camera) |
| SoC: | NXP i.MX 8M Plus |
| Memory: | 6GB LPDD4 32GB EMMC |
| AI Accelerator: | Hailo-8 |
| Video In: | Simultaneous support for: 2x LVDS or 1x LVDS + 1x CVBS or 1x LVDS + 1x Cameralink USB 3.0 SPI |
| Video Out: | HDMI |
| Storage: | 32GB EMMC Up to 1TB MicroSD |
| Interfaces: | GbE RS232/RS485 USB OTG |
