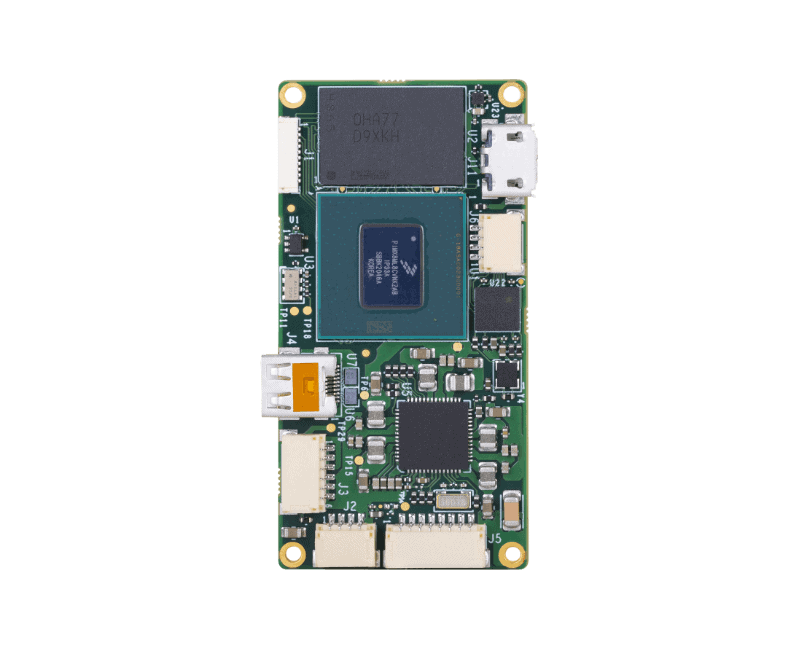

Jupiter NANO
Jupiter-Nano is a miniature low-power video and audio capture, encoding, transcoding and display solution that is ideal for small military and civilian drone and robotics platforms. Able to handle multiple streams simultaneously, it offers a range of pre-processing functionality including stabilization, scaling, graphics overlay, and picture-in-picture.
The solution supports unicast, multicast, and broadcast streaming via UDP, RTP and RTSP over wired and wireless networks, with ultra-low latency of down to 100 ms.
Specifications:
| Dimensions: | 25.4 x 50.8 mm |
| Power: | 5V input <4W for 2x HDSDI @ 1080p30 recording & streaming |
| SoC: | NXP i.MX 8M Plus |
| Memory: | 6GB LPDD4 32GB EMMC |
| Display: | HDMI on main board Single display port supporting analog, HDSDI and AHD video output |
| Storage: | 32GB EMMC |
| Interfaces: | Dual UART USB OTG |
